Shunyata · Power Conditioning

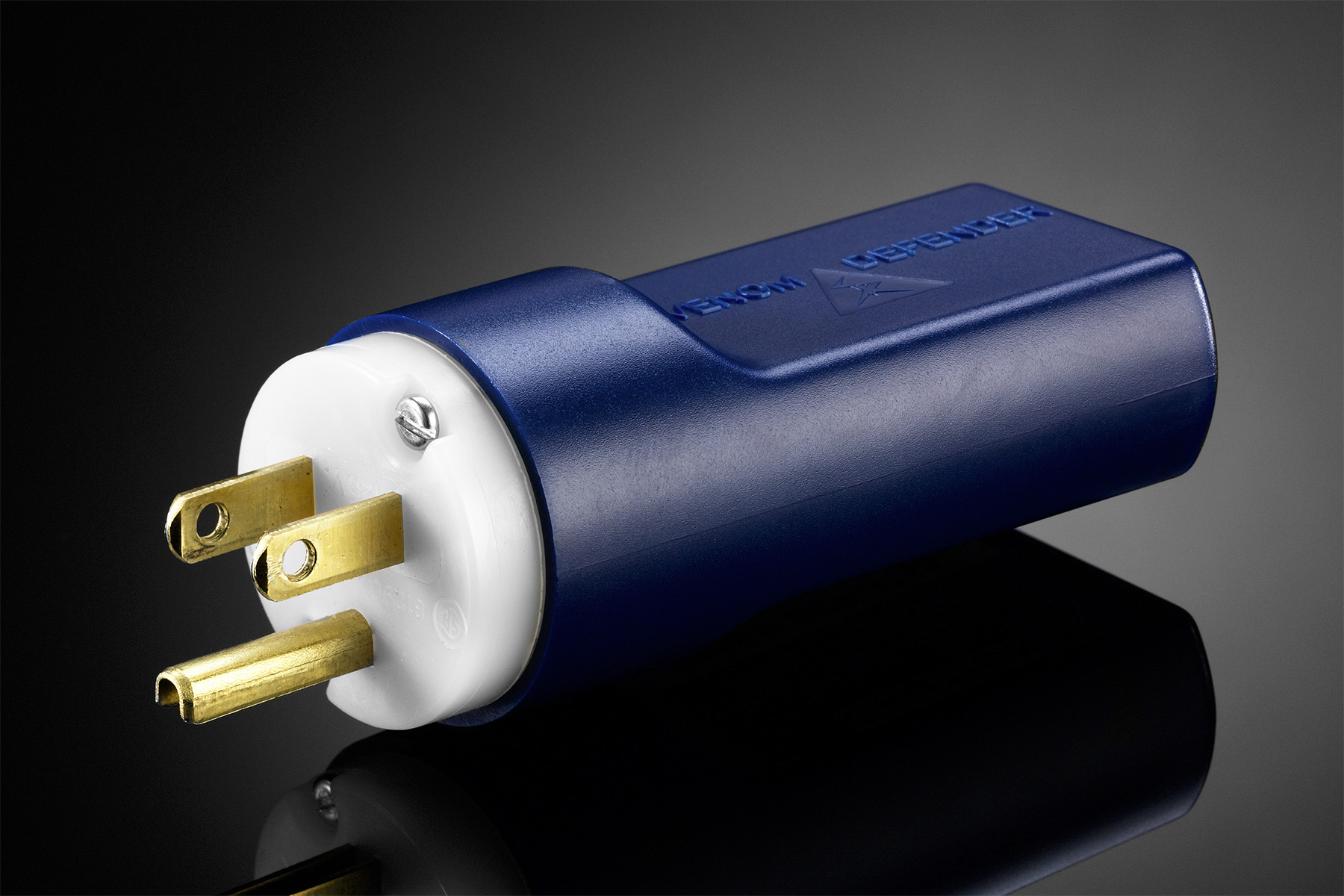

VENOM DEFENDER
Plug-in Venom module for outlet-level noise reduction and transient protection, with NEMA 5-15P connection.
fig. 01 · power conditioning
VENOM DEFENDER
3818
current
From Shunyata
Venom Defender plugs directly into a wall outlet or a compatible Venom distributor, with no separate chassis, outlets, or power cord. It uses MPDA filtering to target noise from electronic power supplies, backed by NextGEN TMOV transient protection rated at 20,000 amps and internal over-current protection, in a polycarbonate and TPE housing.
Specifications
| Input/Output Voltage | Input/Output Voltage: Max Voltage (US): 125VAC unregulated Max Voltage (Asia): 230VAC unregulated |
|---|---|
| Over-Current Protection | Over-Current Protection: Internally protected |
| Sockets / connectors | Sockets / Connectors: US NEMA 5-15P |
| Current Ratings | Current Ratings: Max current: N/A |
| Transient Suppression | Transient Suppression: NextGEN TMOV Transient Protection 20,000 Amps @ 8/50μs |
| Construction | Construction: Polycarbonate / TPE |
| Dimensions | Dimensions: Length: 4.30 inches Diameter: 1.48 inches Weight: 3.4 oz |
| Product type | power distributor / conditioner |
| Series / family | Venom |
