VENOM HC v2 Extension

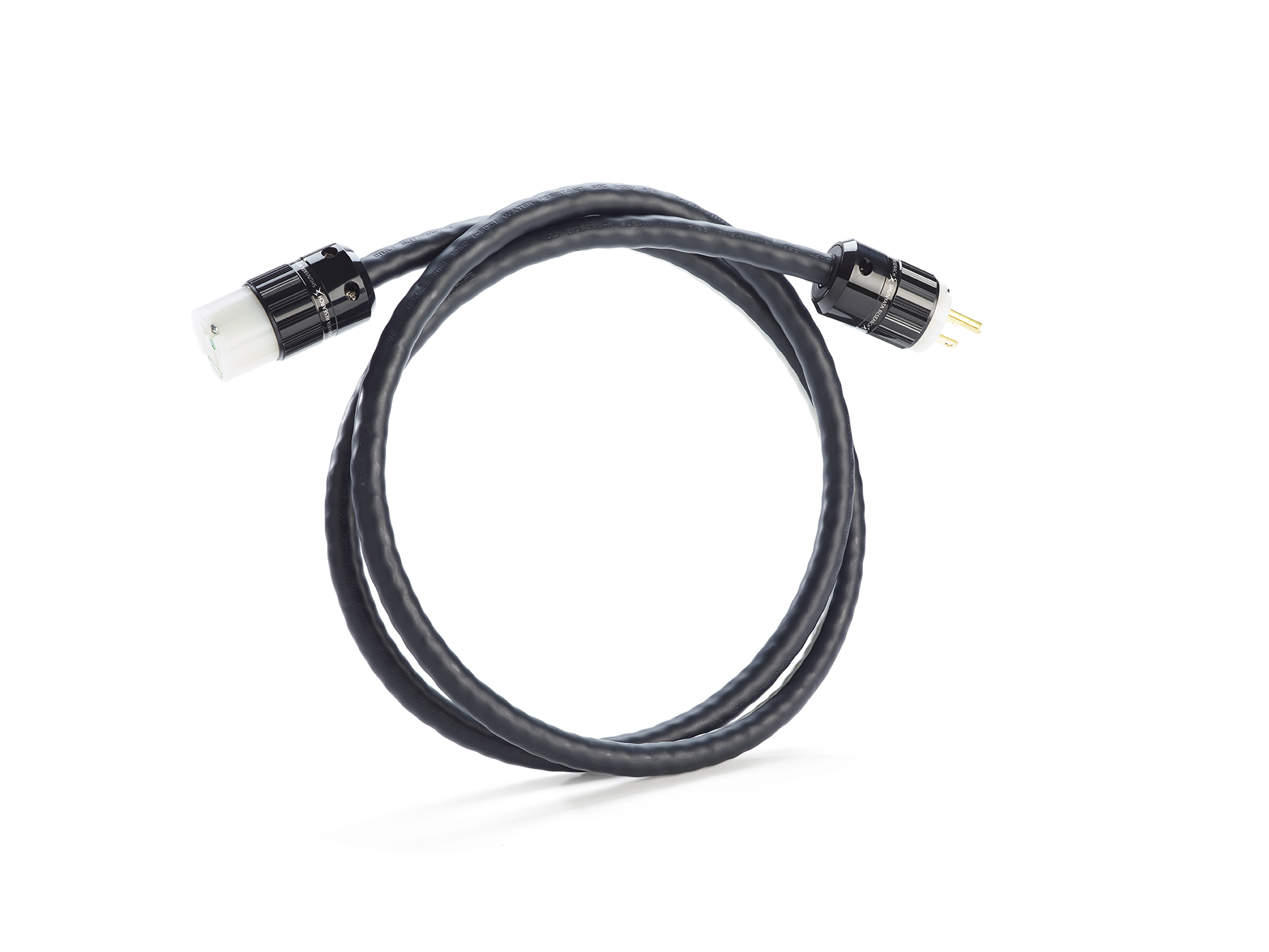

A Venom HC v2 extension cable with 10-gauge OFE conductors, fluorocarbon dielectric material, and US or Schuko extension terminations.
fig. 01 · power cables
VENOM HC v2 Extension
16969
current
From Shunyata
This extension version applies the Venom HC v2 cable design to NEMA 5-20/5-20R and Schuko EU1-16/EU1-16R termination sets. The source specs list solid-brass contacts, nickel plating, hermetically sealed connectors, 1.75 m length, 14.2 mm cable diameter, and continuity, polarity, HiPOT, and insulation testing.
Specifications
| OFE Alloy 101 | Shunyata Research uses only the highest purity of copper available for the production of its wire products. or C10100 is the highest grade of copper with a minimum 99.99% purity and a conductivity rating of 101% IACS. OFE stands for oxygen-free electrolytic and supersedes the term OFHC (oxygen-free high conductivity). C10100 is the only grade of copper that comes with a written certification of purity. |
|---|---|
| Fluorocarbon dielectrics | Fluorocarbon dielectrics are usually only found in wire used in the aerospace industry, satellites and only the most expensive audiophile cabling. It has special electrical characteristics; very low dielectric absorption, high dielectric strength and exceptional heat resistance. When used in audio and power cables is reduces the perception of dynamic compression and it improves sonic low-level resolution and clarity. |
| Hermetically Sealed | Hermetically Sealed The connectors are hermetically sealed with an electrically inert compound that protects the contacts and wires from corrosion. The compound also ensures that the wires cannot become loose, fray or pull out from the head shell. This guarantees a lifetime of reliable performance that does not degrade over time. |
| Conductors | Conductors: Wire: 10 gauge OFE Dielectric: fluorocarbon |
| Connectors | Solid brass AC contacts (not folded metal) Nickel Plating for Corrosion Protection Solid-brass IEC contacts Superior Contact Grip |
| Terminations | Terminations: US: NEMA 5-20, NEMA 5-20R EU: Schuko EU1-16, EU1-16R |
| Safety Assurance | Safety Assurance: Continuity and Polarity Tests – by two technicians HiPOT: 2,000 VAC @ 20 sec. Insulation test: >4,000 VDC @ 4,000, 120 sec. |
| Dimensions | Dimensions: Length: 1.75 meters Cable Diameter: 14.2 mm (.56 inches) |
| Product type | power cord |
| Series / family | Venom HC |
