Shunyata · Power Conditioning
Venom PS10
Ten-outlet Venom power distributor with 20A maximum current, 12-gauge OFE conductors, and an electromagnetic breaker.
fig. 01 · power conditioning
Venom PS10
22106
current
From Shunyata

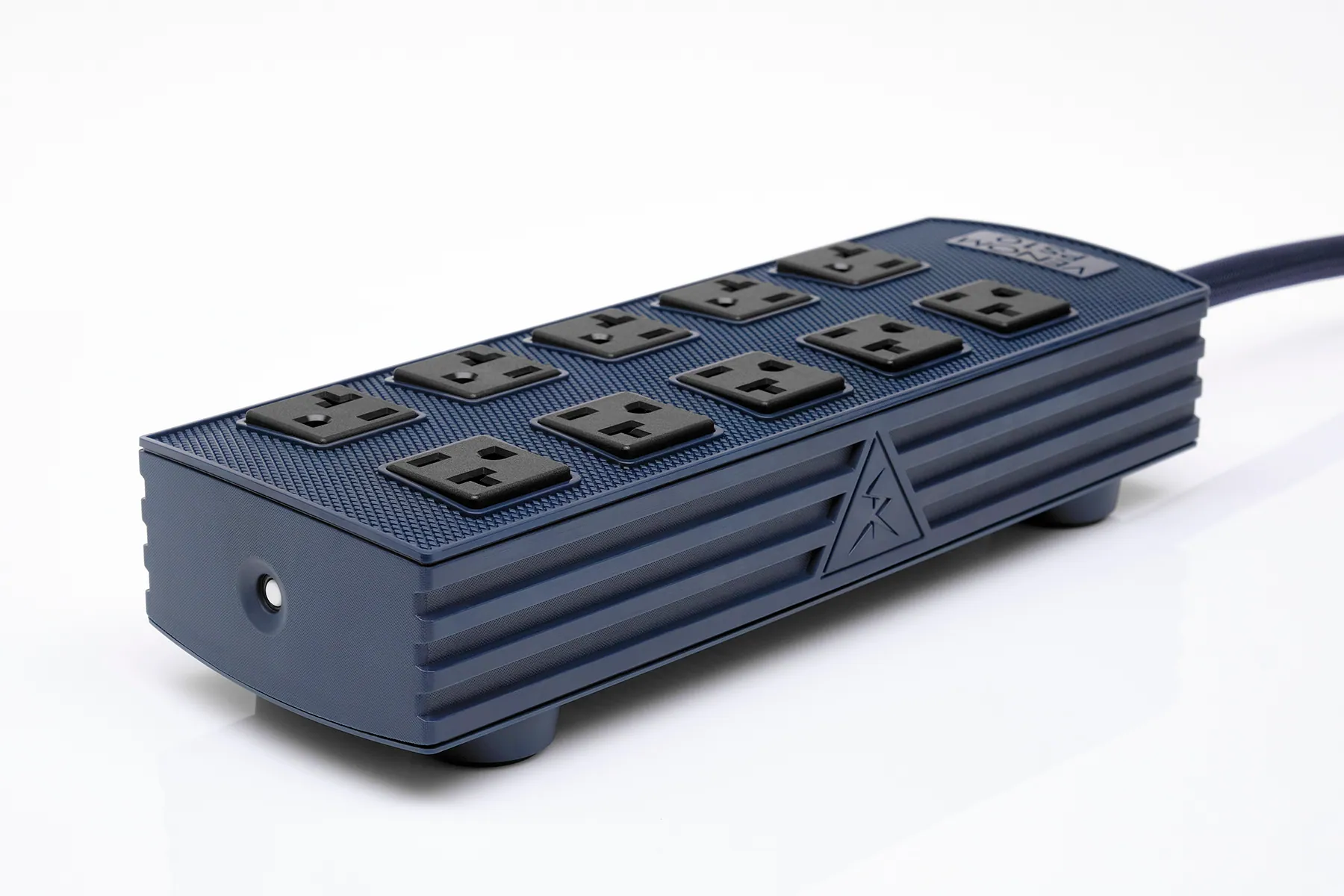

Venom PS10 is a 10-outlet power distributor with alternating outlet orientation for wall-wart plugs and a 5-foot Venom NR power cord for the wall connection. Its saved specs list 20A maximum current, 12-gauge OFE conductors, more than 24 dB line-to-outlet noise suppression, electromagnetic breaker protection, Shunyata Isolation Footer support, and a high-strength polymer case.
Specifications
| KPIP v2 Processing | Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade. | 4-days |
|---|---|
| OFE Alloy 101 | Shunyata Research uses only the highest purity of copper available for the production of its wire products. or C10100 is the highest grade of copper with a minimum 99.99% purity and a conductivity rating of 101% IACS. OFE stands for oxygen-free electrolytic and supersedes the term OFHC (oxygen-free high conductivity). C10100 is the only grade of copper that comes with a written certification of purity. Certified by ASTM F68 C10100. |
| Isolation Footer | Power distributors react very similarly to power amplifiers in their sensitivity to vibration. Using the Shunyata vibration analyzer, Caelin Gabriel developed the Shunyata , which possesses excellent measured vibration dampening characteristics. Shunyata Research also produces several SSF (stainless steel feet) that employ energy absorbing polymers. (Note: SSF feet are standard on some models and optionally available on others) |
| Voltage Range | 90-240 VAC r.m.s. unregulated (US) |
| Maximum Current | 20A |
| Over-Current Protection | Electromagnetic Breaker |
| Wiring System | 12 gauge OFE conductors |
| Noise Suppression | >24db @ (100kHz – 30MHz) line to outlets |
| Outlets / connectors | 10 triple-wipe contact outlets Alternating directions to accommodate wall-warts |
| Vibration Control | Shunyata Isolation Footer |
| Construction | High Strength Polymer Case |
| Dimensions | Width: 3.69 inches (93.66 mm) Depth: 10.63 inches (269.88 mm) Height: 2.29 inches (58.15 mm) Weight: 1.9 lbs |
| Product type | power distributor / conditioner |
| Series / family | Venom |
