Shunyata · Power Conditioning
Venom Series V16
Sixteen-outlet Venom power distributor with 2 isolation zones, CCI noise filtering, ArNi VTX buss wiring, and a C19 inlet.

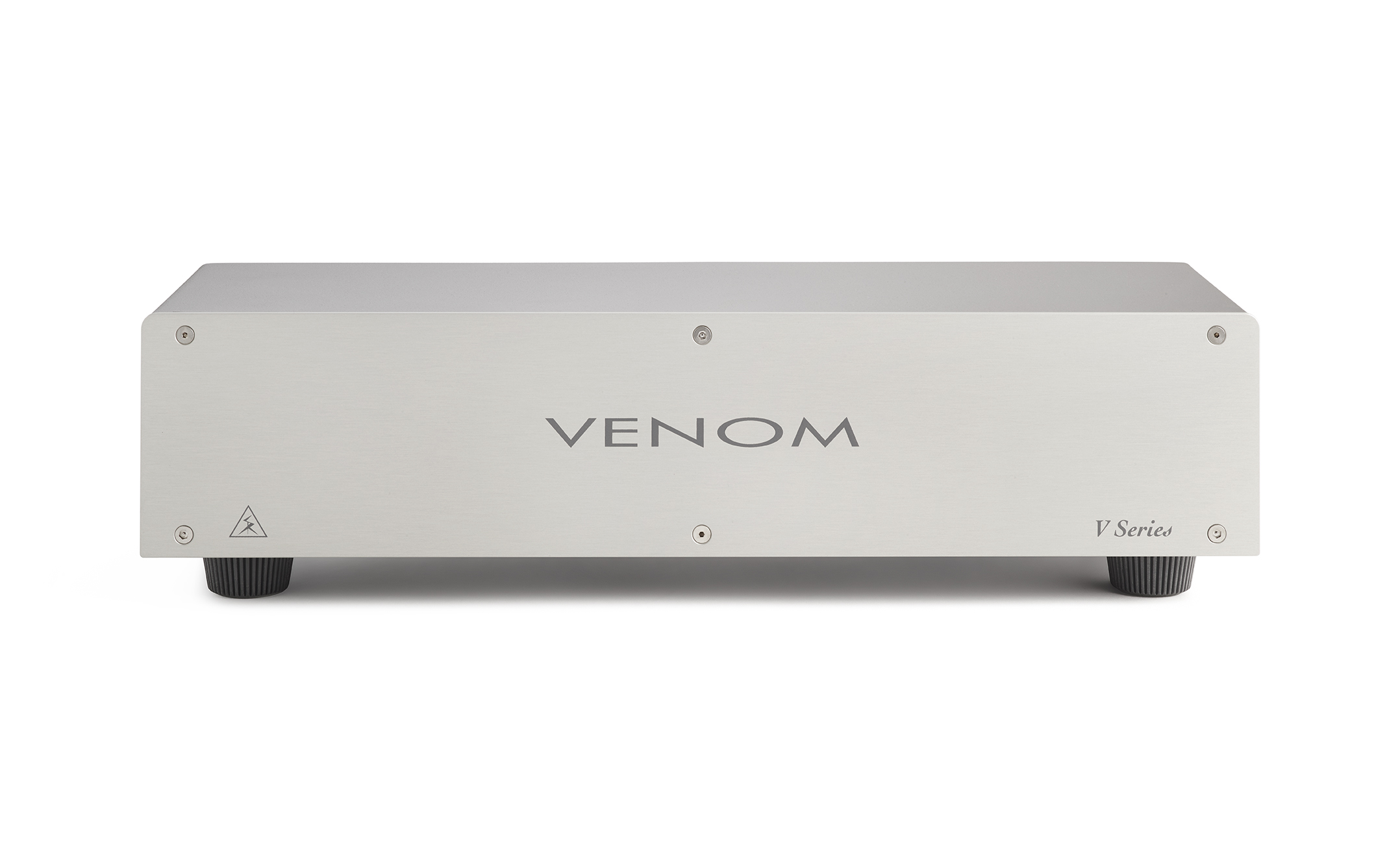

fig. 01 · power conditioning
Venom Series V16
21159
current
From Shunyata
Venom V16 splits its 16 outlets into 2 independent isolation zones of 8 each, built for home theater and complex music systems. It runs dual 12-gauge ArNi VTX buss wiring with CCI noise filtering, a hydraulic electromagnetic breaker, internal vibration damping, and an aluminum-and-steel chassis with a C19 inlet.
Specifications
| ArNi | Shunyata Research’s conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™. The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents. |
|---|---|
| KPIP v2 Processing | Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade. | 4-days |
| Maximum Voltage | Maximum Voltage: 90-125 VAC r.m.s. unregulated (US) 220-240 VAC r.m.s. unregulated (AS) |
| Input Current Ratings | Input Current Ratings: Maximum Continuous Current: 20A (US) Maximum Continuous Current: 16A (AS) |
| Output Current Ratings | Output Current Ratings: Max Current/Outlet: 15A (US) Max Current/Socket: 15A (AS) |
| Transient Suppression | Transient Suppression: Maximum Transient Protection: 40,000 A @ 8/50 μs |
| Over-Current Protection | Over-Current Protection: Hydraulic Electromagnetic Breaker |
| Wiring System | Wiring System: Dual 12-gauge ArNi® VTX™ Buss System Ratings: 600 V 105° C |
| Noise Suppression | Noise Suppression: Input to Output (100 kHz – 30 MHz): > 24 dB reduction Zone to Zone (100 kHz – 30 MHz): > 26 dB reduction |
| Isolation Zones | 2 zones |
| Outlets / connectors | Outlets & Connectors: Inlet: IEC C19R |
| Vibration Control | Vibration Control: Vibration dampening panels (internal) AC outlet dampening gaskets |
| Construction | Construction: Aluminum and steel chassis Anodized, aluminum faceplate |
| Dimensions | Dimensions: Width: 17.0 inches (43.2 cm) Depth: 9 inches (22.9 cm) Height: 4.6 inches (11.7 cm) Weight: 5.0lbs. (2.26kg) |
| Product type | power distributor / conditioner |
| Series / family | Venom |
