Shunyata · Power Conditioning
Venom Series V6 EU
EU 6-socket Venom power distributor with C19 inlet, 3 CCI filters, ArNi VTX buss wiring, and Trident transient protection.
fig. 01 · power conditioning

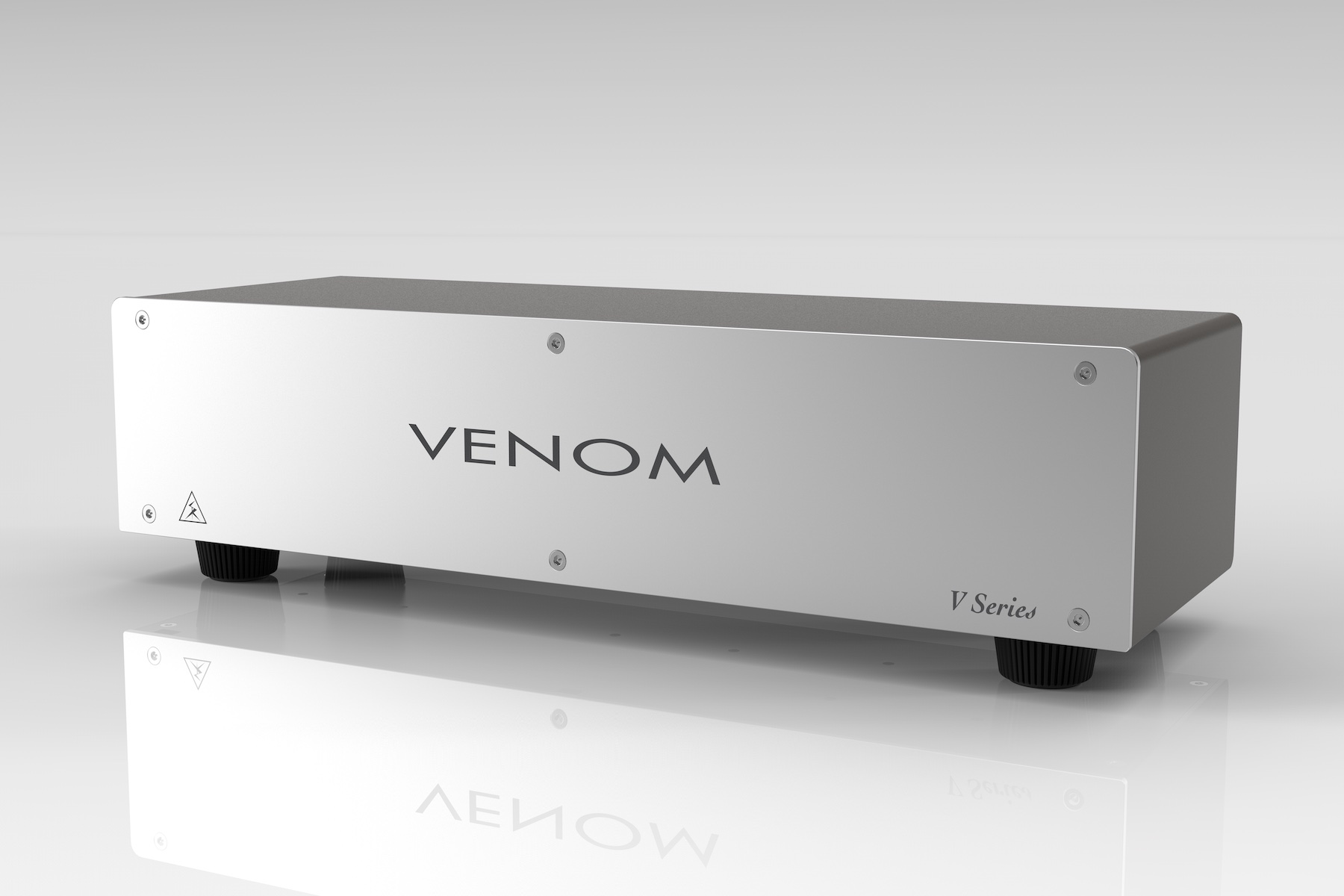

Venom Series V6 EU
From Shunyata
Venom Series V6 EU is a 220 to 240 VAC power distributor for EU systems, with 6 CEE 7/3 sockets and 16A maximum continuous current. Its saved specs list a C19 inlet, 4 mm2 ArNi VTX buss system, 3 CCI filters, hydraulic electromagnetic breaker protection, internal vibration damping, aluminum-and-steel construction, and KPIP v2 processing.
Specifications
| ArNi | Shunyata Research’s conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™. The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents. |
|---|---|
| KPIP v2 Processing | Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade. | 4-days |
| Maximum Voltage | Maximum Voltage: 220-240 VAC r.m.s. unregulated (EU) |
| Input Current Ratings | Input Current Ratings: Maximum Continuous Current: 16A (EU) |
| Output Current Ratings | Output Current Ratings: Max Current/Outlet: 16A (EU) |
| Transient Suppression | Transient Suppression: Maximum Transient Protection: 40,000 A @ 8/50 μs |
| Over-Current Protection | Over-Current Protection: Hydraulic Electromagnetic Breaker |
| Wiring System | Wiring System: 4 mm2 ArNi® VTX™ Buss System Ratings: 600 V 105° C |
| Noise Suppression | Noise Suppression: Input to Output (100 kHz – 30 MHz): > 24 dB reduction Zone to Zone (100 kHz – 30 MHz): > 26 dB reduction |
| CCI Filters | CCI Filters: 3 |
| Outlets / connectors | Outlets & Connectors: Inlet: IEC C19R EU Sockets: 6 CEE 7/3 |
| Vibration Control | Vibration Control: Vibration dampening panels (internal) |
| Construction | Construction: Aluminum and steel chassis Anodized, aluminum faceplate |
| Dimensions | Dimensions: Width: 43.2 cm Depth: 22.9 cm Height: 11.7 cm Weight: 4.3 kg |
| Product type | power distributor / conditioner |
| Series / family | Venom |
