Shunyata · Power Conditioning
Venom Series V6 UK
UK 6-socket Venom power distributor with C19 inlet, ArNi VTX outlet wiring, CCI filtering, and Trident transient protection.
fig. 01 · power conditioning

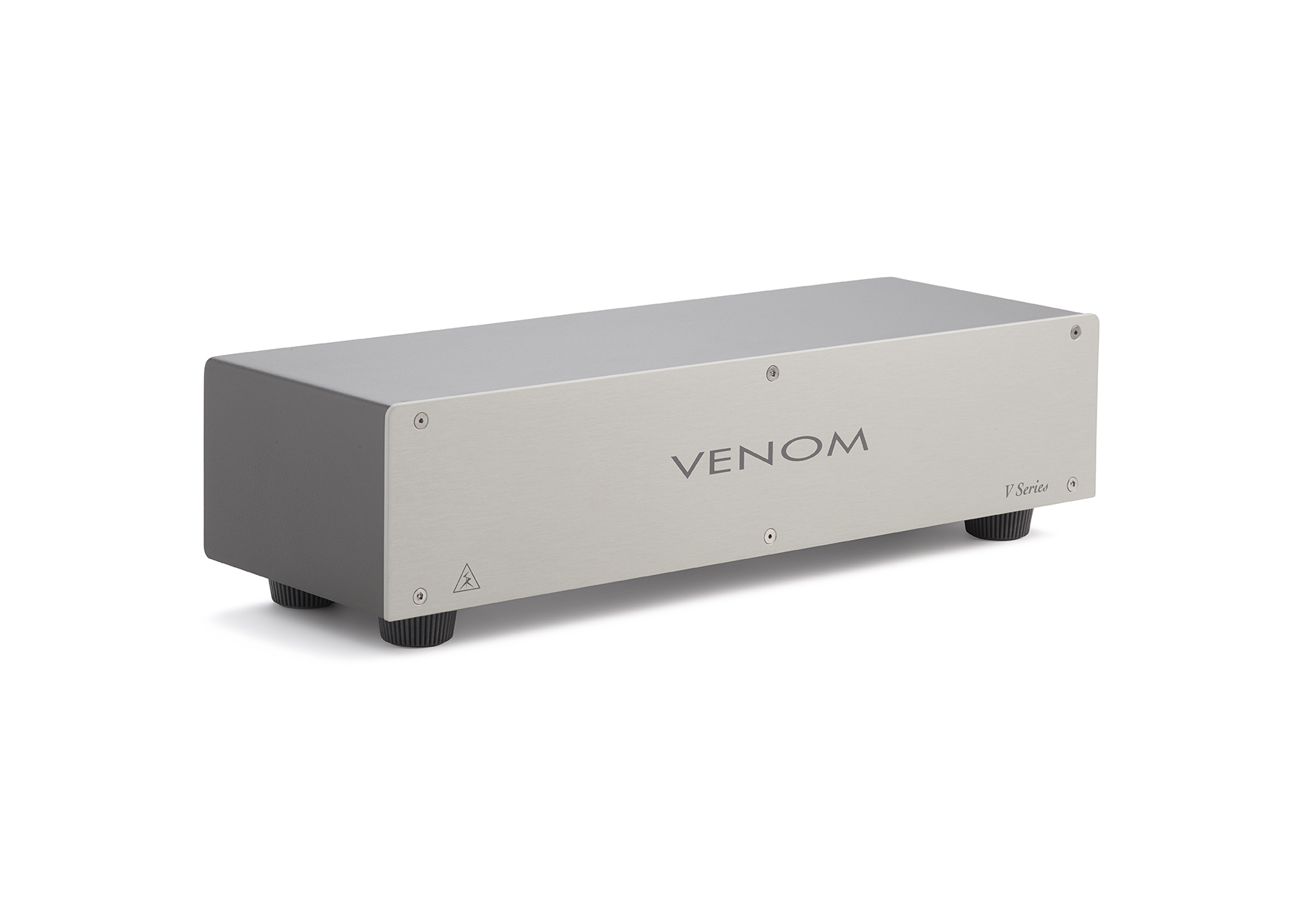

Venom Series V6 UK
From Shunyata
Venom Series V6 UK is a 220 to 240 VAC power distributor with 6 BS 1363 sockets and 16A aggregate output current. Its saved specs list a C19 inlet, 4 mm2 ArNi VTX outlet wiring, hydraulic electromagnetic breaker protection, internal vibration damping, aluminum-and-steel construction, KPIP v2 processing, and more than 30 dB input-to-output noise reduction.
Specifications
| ArNi | Shunyata Research’s conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™. The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents. |
|---|---|
| KPIP v2 Processing | Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade. | 4-days |
| Maximum Voltage | Maximum Voltage: 220-240 VAC r.m.s. unregulated |
| Input Current Ratings | Input Current Ratings: Maximum Continuous Current: 16A |
| Output Current Ratings | Output Current Ratings: Max Current/Outlet: 16A aggregate |
| Transient Suppression | Transient Suppression: Maximum Transient Protection: 40,000 A @ 8/50 μs |
| Over-Current Protection | Over-Current Protection: Hydraulic Electromagnetic Breaker |
| Wiring System | Wiring System: 4 mm2 ArNi® VTX™ outlet wiring Ratings: 600 VAC 105° C |
| Noise Suppression | Noise Suppression: Input to Output (100 kHz – 30 MHz): > 30 dB reduction Zone to Zone (100 kHz – 30 MHz): > 40 dB reduction |
| Outlets / connectors | Outlets & Connectors: Inlet: IEC C19R Sockets: 6 BS 1363 |
| Vibration Control | Vibration Control: Vibration dampening panels (internal) |
| Construction | Construction: Aluminum and steel chassis Anodized, aluminum faceplate |
| Dimensions | Dimensions: Width: 17 inches (43.2 cm) Depth: 9 inches (22.9 cm) Height: 4.6 inches (11.7 cm) Weight: 5.6 lbs (2.54 kg) |
| Product type | power distributor / conditioner |
| Series / family | Venom |
