Shunyata · Power Conditioning
VENOM UK6
UK 6-socket Venom power distributor with top-entry outlets, dual ArNi VTX conductors, and Trident transient protection.
fig. 01 · power conditioning

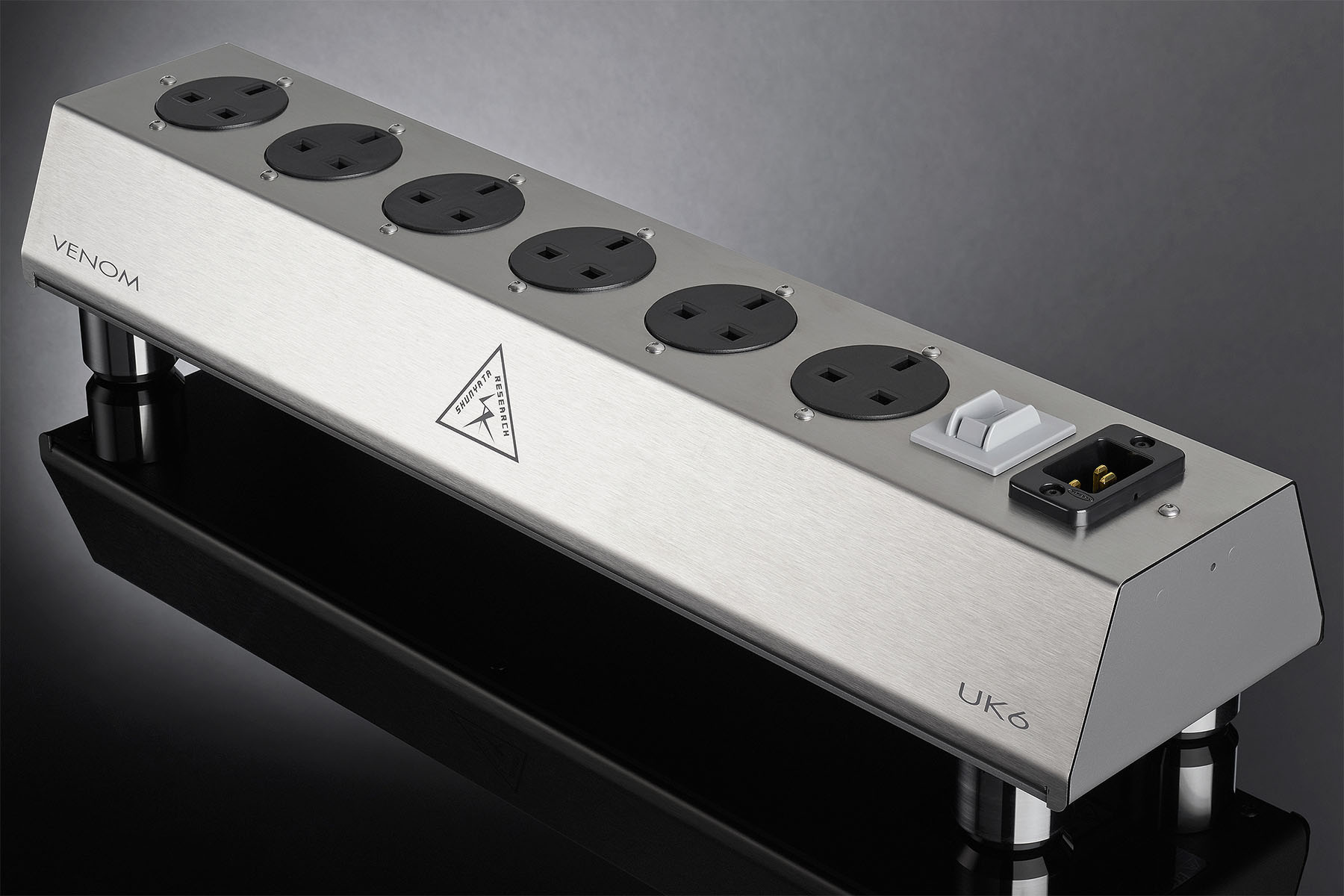

VENOM UK6
From Shunyata
VENOM UK6 is a 220 to 250 VAC power distributor with 6 BS-1363 sockets, a C19 inlet, and a narrow profile designed for cabinet placement. Its saved specs list dual 6 mm2 ArNi VTX conductors, hydraulic electromagnetic breaker protection, Trident transient protection, internal vibration damping, a Shunyata Isolation Footer, and stainless-steel-and-steel construction.
Specifications
| ArNi | Shunyata Research’s conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™. The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents. |
|---|---|
| KPIP v2 Processing | Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade. | 4-days |
| Maximum Voltage | 220-250 VAC r.m.s. unregulated (UK) |
| Input Current Ratings | Input Current Ratings: Maximum Continuous Current: 16A |
| Output Current Ratings | Max Current/Socket: 16A |
| Transient Suppression | Transient Suppression: Shunyata Research Trident Defense System Maximum Transient Protection: 40,000 A @ 8/50 μs |
| Over-Current Protection | Hydraulic Electromagnetic Breaker |
| Noise Suppression | > 24db @ (100 kHz – 30 MHz) [line to outlets] |
| Outlets / connectors | Inlet: IEC C19R UK Sockets: 6 BS-1363 (3-pin) |
| Wiring System | Wiring System: Dual ArNi® VTX™ conductors (6 mm2) Ratings: 600 V 105° C |
| Vibration Control | Vibration dampening panels (internal) Shunyata Isolation Footer |
| Construction | Stainless steel and steel chassis |
| Dimensions | Width: 52.07 cm Depth: 9.00 cm Height: 12.5 cm Weight: 3.4 kg |
| Product type | power distributor / conditioner |
| Series / family | Venom |
