Advance Paris · Integrated Amplifiers
Advance Paris A10 Classic

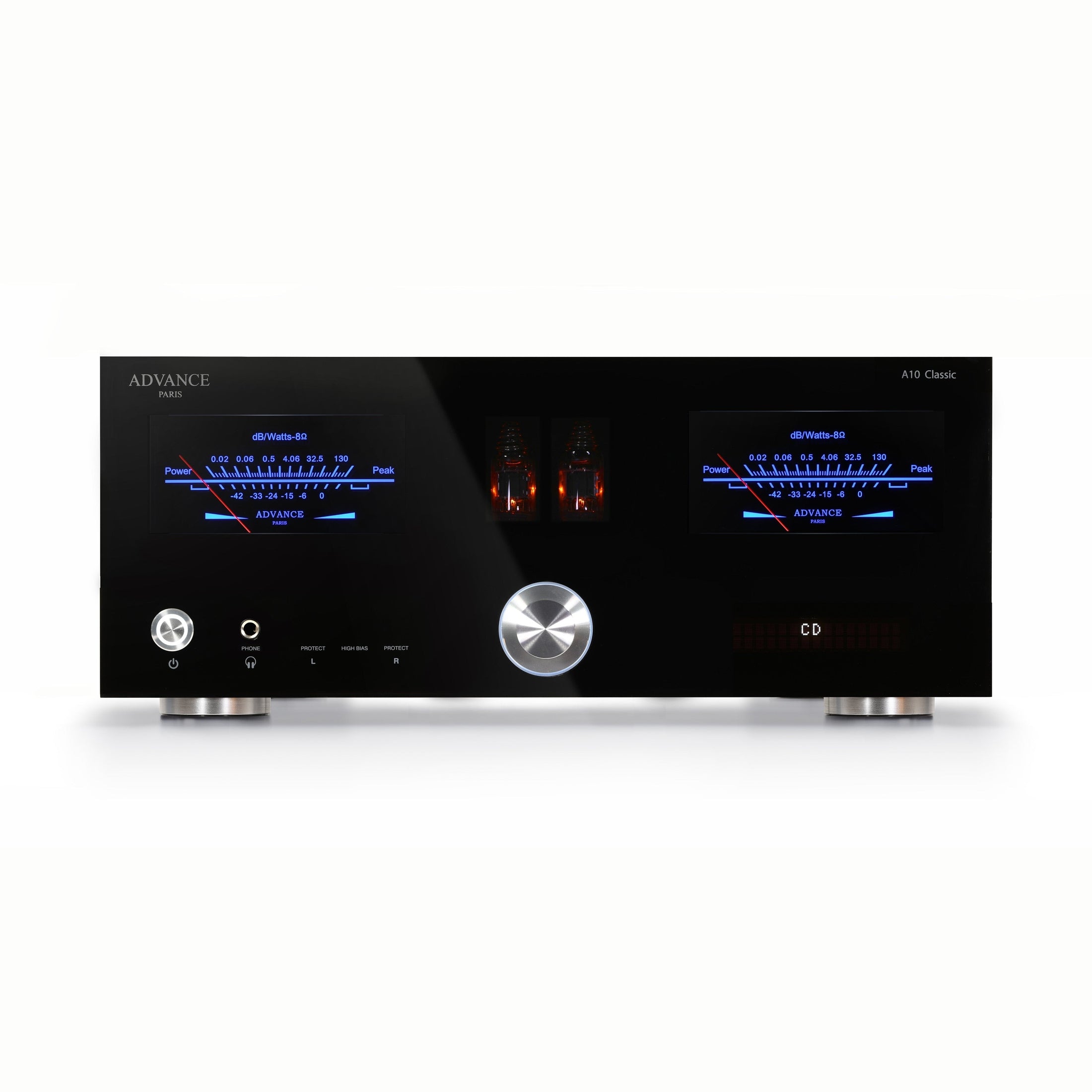

A10 Classic is a hybrid stereo amp with 130W per channel, tube preamp stage, Class AB output, DAC inputs, MM/MC phono, and front VU meters.
fig. 01 · integrated amplifiers
Advance Paris A10 Classic
APA10
current
From Advance Paris
The A10 Classic pairs an ECC81/12AT7 tube preamp stage with a Class AB output section rated at 130W per channel into 8 Ohms. It also has USB, optical, analog, record, subwoofer, and speaker outputs, plus Hi Bias mode and tone controls for system matching.
Specifications
| Output power (8 Ohms) | 2 x 130W RMS |
|---|---|
| Output power (4 Ohms) | 2 x 190W RMS |
| Bandwidth | (-3dB) 10Hz-35kHz |
| Tone control | +/- 10 dB |
| Distortion | <0.1% |
| Signal-to-noise ratio | > 90 dB |
| Channel separation | > 70 dB |
| Input impedance | 47KΩ |
| Phono input impedance | 47KΩ |
| Amplifier input level | < 300mV |
| Phono MM/MC input level | 2,5mV |
| Mains voltage | 115-230V |
| Max power consumption | 400 |
| Transformer | 1 |
| Width | 430 mm |
| Height | 175 mm |
| Depth | 385 mm |
| Net weight | 14,5 kg |
| Gross weight | 17 kg |
| CD input | 1 |
| Tuner input | 1 |
| Auxiliary Input | 4 |
| RCA Analog Input | 1 |
| Record output | 1 |
| Output for Subwoofer | 1 |
| Amp-Preamp | Disconnectable |
| Optical input | 1 |
| USB-A input | 1 |
| USB-B input | 1 |
| Output Pair of speakers | 1 |
| 5 Volt Output WTX 500 | 1 |
| Settings | Treble, Balance, Bypass, Hi Bias Switch, Bass, Volume |
| VU meter | Yes |
| Tubes | Yes |
| DAC | SSE 9018 |
| Product type | hybrid stereo amplifier |
| Series | Classic |
| Phono cartridge support | MM / MC |
| Bluetooth | aptX HD | aptX |
| USB input | asynchronous USB-B |
