Advance Paris X-A160 EVO

X-A160 EVO is a stereo power amp rated at 160W per channel into 8 Ohms and 240W per channel into 4 Ohms.

fig. 01 · power amplifiers

Advance Paris X-A160 EVO

APXA160EVO

current

Advance Paris Advance Paris X-A160 EVO

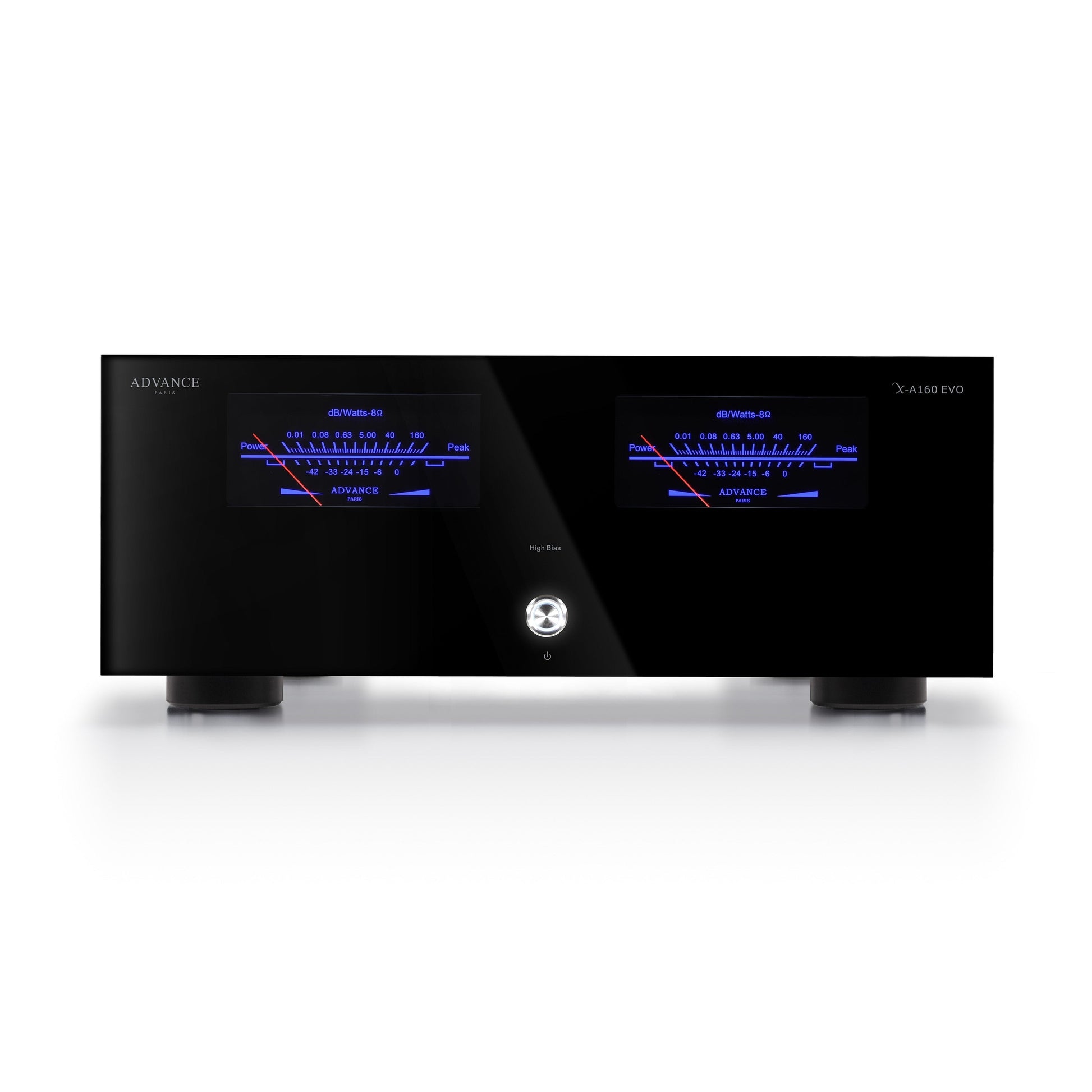

fig. 01 · Advance Paris X-A160 EVOphotograph · Advance Paris

From Advance Paris

The X-A160 EVO uses a compartmentalized chassis, toroidal transformer, and high-current output devices related to Advance Paris's larger MAA 1000 design. Saved specs list 10 Hz-80 kHz bandwidth, balanced and unbalanced inputs, 120 dB signal-to-noise ratio, and 19 kg net weight.

Specifications

Output power (8 Ohms)2 x 160W RMS
Output power (4 Ohms)2 x 240W RMS
Bandwidth10 Hz - 80 kHz
Distortion<0,07%
Signal-to-noise ratio> 120 dB
Channel separation> 80 dB
Unbalanced input impedance20 KΩ
Balanced input impedance38 KΩ
Mains voltage115-230V
Standby power consumption<0,5W
Max power consumption500
Transformer power700
TransformerToroidal
Height160 mm
Width440 mm
Depth430 mm
Net weight19 kg
Product typestereo power amplifier
SeriesEVO
