Advance Paris · Power Amplifiers

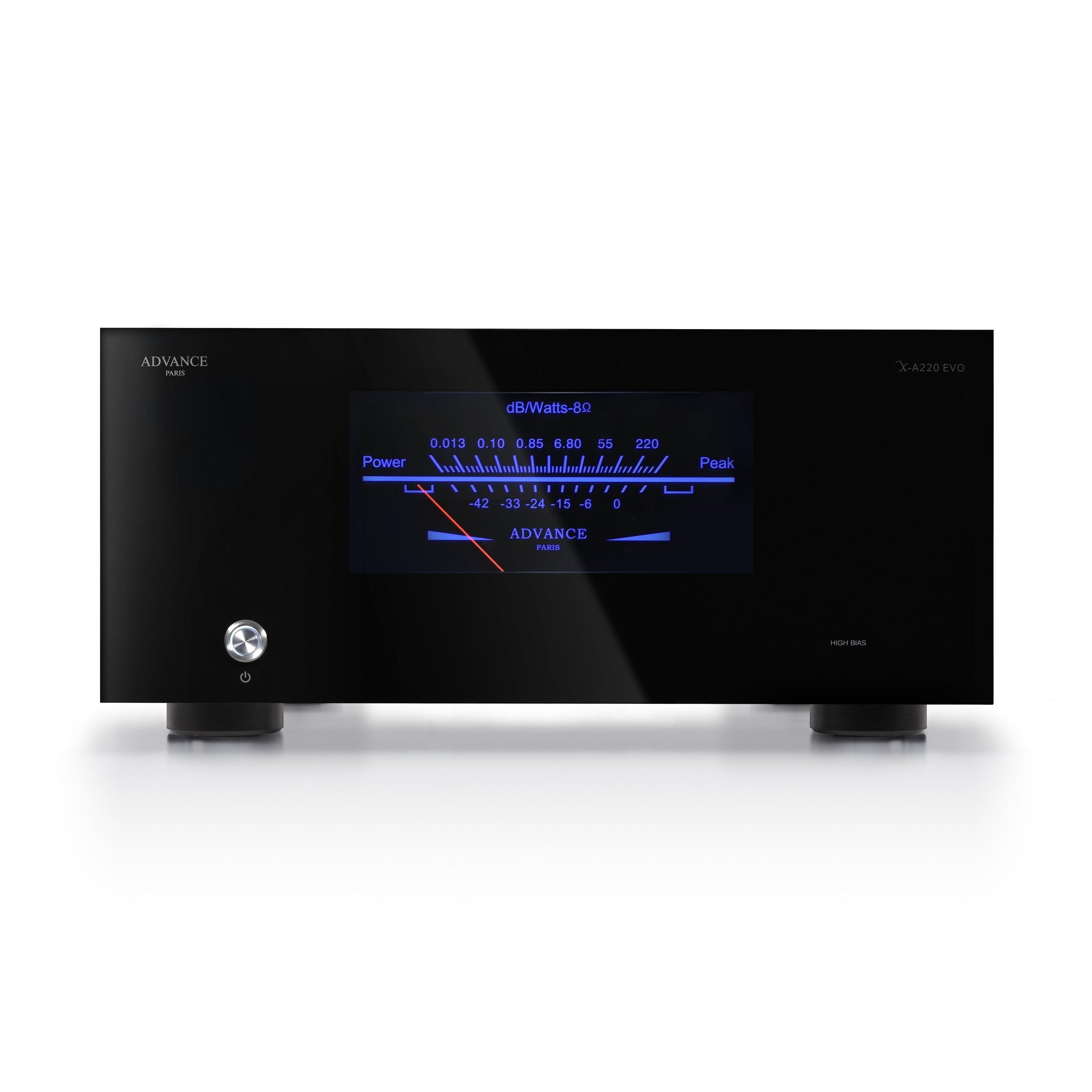

Advance Paris X-A220 EVO
X-A220 EVO is a mono power amp rated at 220W into 8 Ohms and 350W into 4 Ohms.
fig. 01 · power amplifiers
Advance Paris X-A220 EVO
APXA220EVO
current
From Advance Paris
The X-A220 EVO is intended for one-channel power amplification, commonly used as a pair with a matching preamp. Saved specs list toroidal transformer, VU meter, balanced and unbalanced inputs, 10 Hz-80 kHz bandwidth, 100 dB signal-to-noise ratio, and 21 kg net weight.
Specifications
| Output power (8 Ohms) | 1 x 220W RMS |
|---|---|
| Output power (4 Ohms) | 1 x 350W RMS |
| Bandwidth | 10 Hz - 80 kHz |
| Distortion | <0,08% |
| Signal-to-noise ratio | > 100 dB |
| Channel separation | > 80 dB |
| Unbalanced input impedance | 32 KΩ |
| Balanced input impedance | 38 KΩ |
| Mains voltage | 115-230V |
| Standby power consumption | <0,5W |
| Max power consumption | 500 |
| Transformer power | 700 |
| Transformer | Toroidal |
| Height | 200 mm |
| Width | 430 mm |
| Depth | 450 mm |
| Net weight | 21 Kg |
| VU meter | Yes |
| Product type | mono power amplifier |
| Series | EVO |
