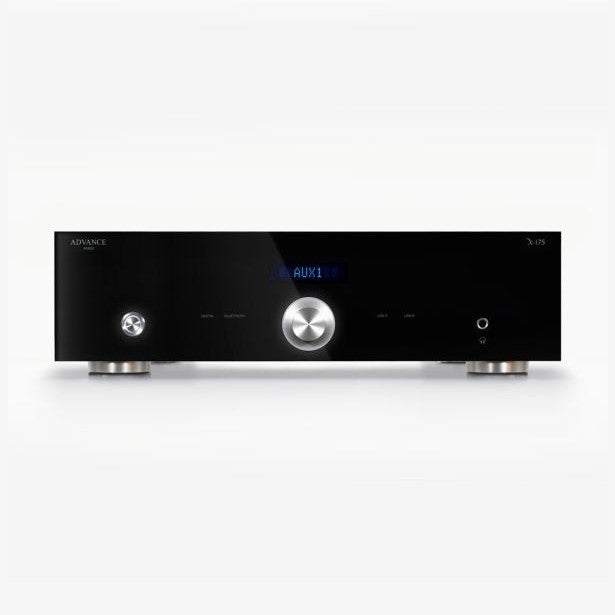

Advance Paris X-i75 Classic
X-i75 Classic is a 75W-per-channel stereo amp with a DAC, analog and digital inputs, phono input, subwoofer output, and Hi Bias mode.
fig. 01 · integrated amplifiers
Advance Paris X-i75 Classic
APXI75
current
From Advance Paris
The X-i75 Classic uses a toroidal transformer, high-current Class AB output, and Hi Bias operation for the first watts. Its saved specs list RCA, phono, USB-A, USB-B, optical, record, subwoofer, and speaker outputs, plus remote control for an Advance Paris system.
Specifications
| Output power (8 Ohms) | 2 x 75W RMS |
|---|---|
| Output power (4 Ohms) | 2 x 110W RMS |
| Bandwidth | (-3dB) 10Hz-35kHz |
| Tone control | +/- 10 dB |
| Distortion | <0.1% |
| Signal-to-noise ratio | > 90 dB |
| Channel separation | > 70 dB |
| Input impedance | 47KΩ |
| Phono input impedance | 47KΩ |
| Amplifier input level | < 300mV |
| Phono MM/MC input level | 2,5mV |
| Mains voltage | 115-230V |
| Max power consumption | 300 |
| Transformer | 1 |
| Height | 120 mm |
| Width | 430 mm |
| Depth | 320 mm |
| Net weight | 8,6 Kg |
| CD input | 1 |
| Tuner input | 1 |
| Auxiliary Input | 4 |
| RCA Analog Input | 1 |
| Record output | 1 |
| Output for Subwoofer | 1 |
| Amp-Preamp | Disconnectable |
| Optical input | 1 |
| USB-A input | 1 |
| USB-B input | 1 |
| Output Pair of speakers | 1 |
| 5 Volt Output WTX 500 | 1 |
| Settings | Treble, Balance, Bypass, Hi Bias Switch, Bass, Volume |
| Product type | stereo amplifier with dac |
| Series | Classic |
| Phono cartridge support | MM / MC |
| USB input | asynchronous USB-B |
