Arcam · Home Theater Electronics
AV41

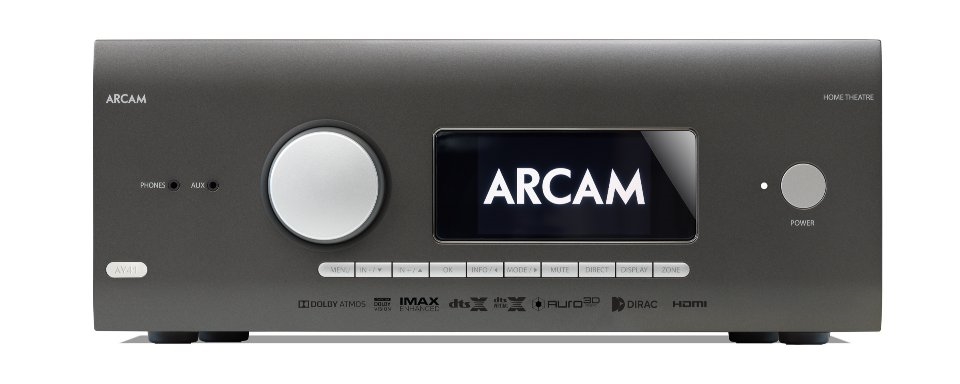

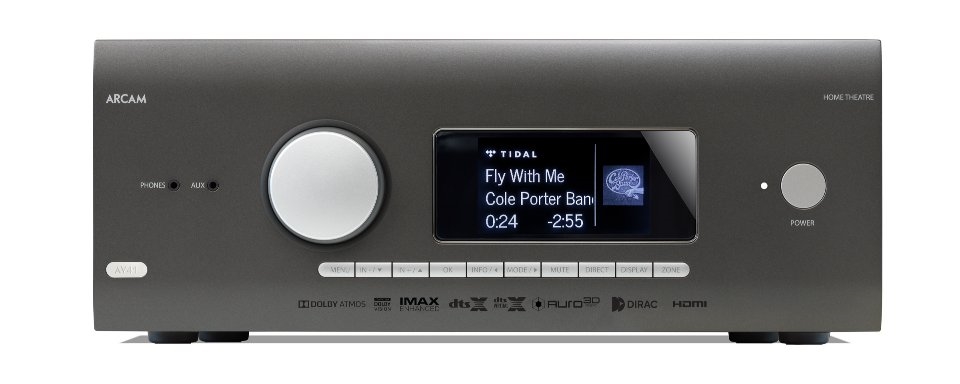

The Arcam AV41 is an HDA-series AV processor with HDMI 2.1 and 16 balanced XLR output channels.
fig. 01 · home theater electronics
AV41
current
From Arcam
The Arcam AV41 is an HDA-series AV processor with HDMI 2.1 and HDCP 2.3, 7 HDMI inputs, and 3 outputs including Zone 2. It decodes 16 audio channels and drives 16 transformerless balanced XLR outputs through dual ESS 9026PRO DACs. It supports Dirac Live room correction, is Dirac Live Bass Control ready, and is Roon Ready.
Specifications
| Product type | HDMI 2.1 AV processor |
|---|---|
| HDMI inputs/outputs | 7 inputs / 3 outputs including Zone 2, eARC compatible |
| HDMI version | HDMI 2.1 with HDCP 2.3 |
| Audio decoding channels | 16 |

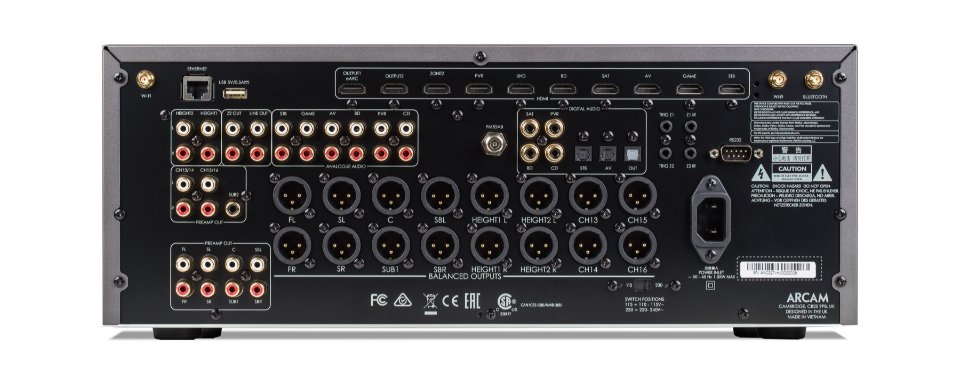

| Processor output channels | 16 transformerless balanced XLR output channels |
| DAC | dual ESS 9026PRO DACs with ESS reference voltage regulators |
| Room correction | Dirac Live room correction | Dirac Live Bass Control ready |
| Streaming support | Google Chromecast built-in | Apple AirPlay 2 | Bluetooth aptX HD | Spotify Connect | Tidal Connect | UPnP MusicLife app | Roon Ready | MQA |
| Input impedance | 47k Ohms |
| Signal/noise ratio | 100dB/110dB (A-wtd ref 100W, normal/stereo direct) |
| Frequency response | 20Hz - 20kHz +/- 0.2dB |
| Dimensions | 433 x 425 x 171mm |
| Weight (net) | 10.6kg |
| Weight (packed) | 13.9kg |
