Arcam · Home Theater Electronics
AVR11

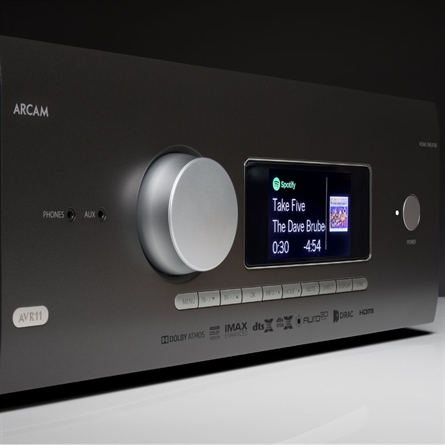

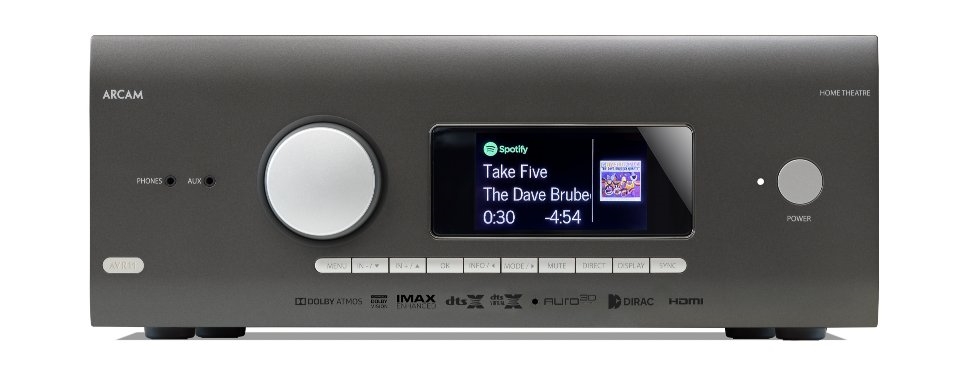

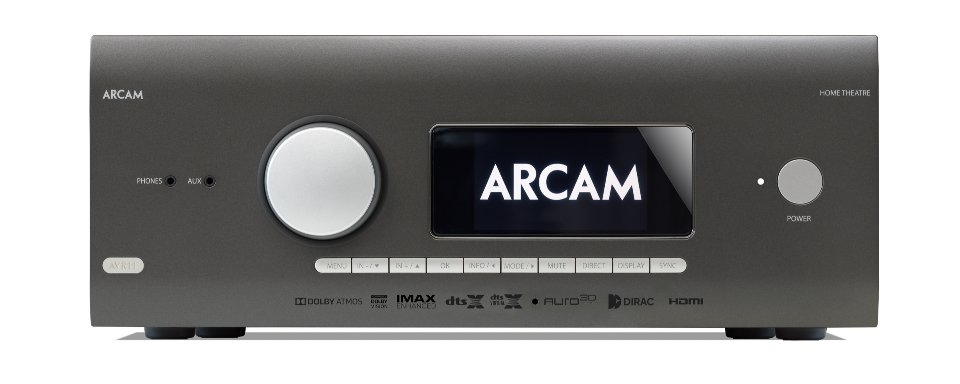

The Arcam AVR11 is an HDA-series HDMI 2.1 Class AB AV receiver with 7 amplifier channels.
fig. 01 · home theater electronics
AVR11
current
From Arcam
The Arcam AVR11 is an HDA-series AV receiver with HDMI 2.1 and HDCP 2.3, 7 HDMI inputs, and 2 outputs. It has 7 Class AB amplifier channels and decodes 12 audio channels through dual ESS 9026PRO DACs. It supports Dirac Live room correction, is Dirac Live Bass Control ready, and is Roon Ready.
Specifications
| Product type | HDMI 2.1 Class AB AV receiver |
|---|---|
| HDMI inputs/outputs | 7 inputs / 2 outputs, eARC compatible |
| HDMI version | HDMI 2.1 with HDCP 2.3 |
| Amplifier class | Class AB |
| Amplifier channels | 7 |
| Audio decoding channels | 12 |
| Power output | 2 channels driven, 20Hz - 20kHz, <0.02% THD: 80W/100W at 8 Ohms / 4 Ohms | 2 channels driven, 1kHz, 0.2% THD: 85W/120W at 8 Ohms / 4 Ohms | 7 channels driven, 1kHz, 0.2% THD: 60W/85W at 8 Ohms / 4 Ohms |
| DAC | dual ESS 9026PRO DACs with ESS reference voltage regulators |
| Room correction | Dirac Live room correction | Dirac Live Bass Control ready |
| Streaming support | Google Chromecast built-in | Apple AirPlay 2 | Bluetooth aptX HD | Spotify Connect | Tidal Connect | UPnP MusicLife app | Roon Ready | MQA |
| Input impedance | 47k Ohms |
| Signal/noise ratio | 100dB/110dB (A-wtd ref 100W, normal/stereo direct) |
| Frequency response | 20Hz - 20kHz +/- 0.2dB |
| Dimensions | 433 x 425 x 171mm |
| Weight (net) | 16.5kg |
| Weight (packed) | 19.8kg |
