AVR31

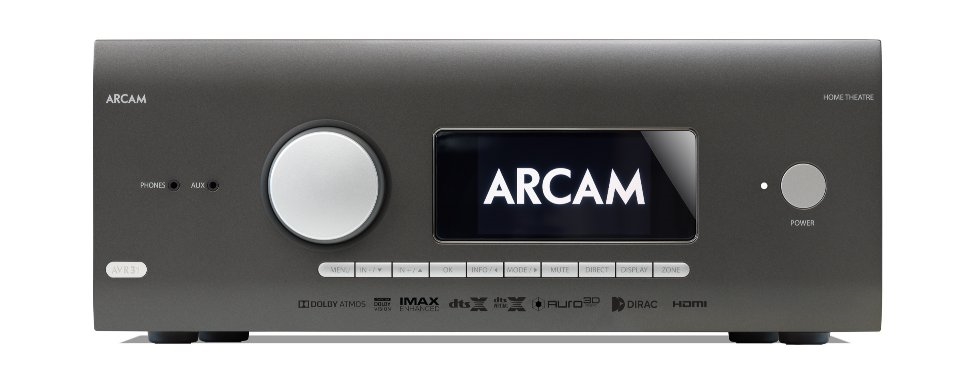

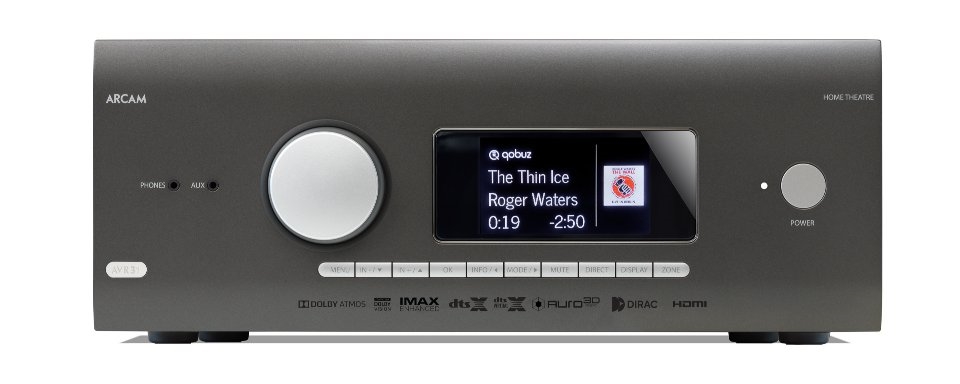

The Arcam AVR31 is an HDA-series HDMI 2.1 Class G AV receiver with 16 decoding channels.
fig. 01 · home theater electronics
AVR31
current
From Arcam
The Arcam AVR31 is an HDA-series AV receiver with HDMI 2.1 and HDCP 2.3, 7 HDMI inputs, and 3 outputs including Zone 2. It has 7 Class G amplifier channels and decodes 16 audio channels through dual ESS 9026PRO DACs. It supports Dirac Live room correction, is Dirac Live Bass Control ready, and is Roon Ready.
Specifications
| Product type | HDMI 2.1 Class G AV receiver |
|---|---|

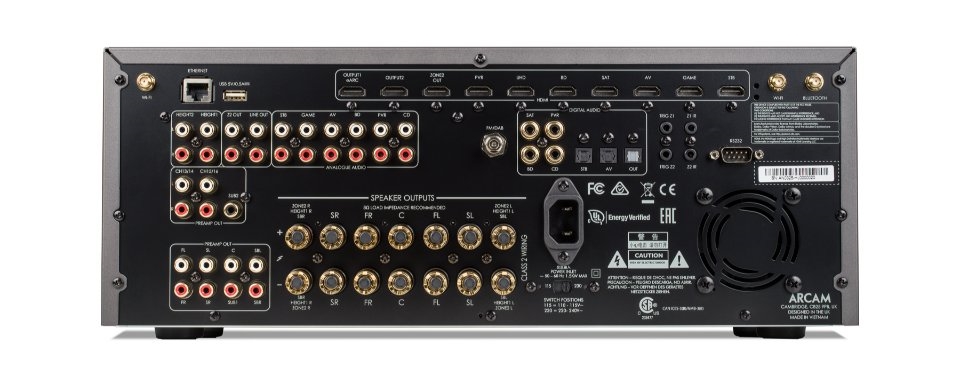

| HDMI inputs/outputs | 7 inputs / 3 outputs including Zone 2, eARC compatible |
| HDMI version | HDMI 2.1 with HDCP 2.3 |
| Amplifier class | Class G |
| Amplifier channels | 7 |
| Audio decoding channels | 16 |
| Power output | 2 channels driven, 20Hz - 20kHz, <0.02% THD: 120W/200W at 8 Ohms / 4 Ohms | 2 channels driven, 1kHz, 0.2% THD: 140W/220W at 8 Ohms / 4 Ohms | 7 channels driven, 1kHz, 0.2% THD: 100W/180W at 8 Ohms / 4 Ohms |
| DAC | dual ESS 9026PRO DACs with ESS reference voltage regulators |
| Room correction | Dirac Live room correction | Dirac Live Bass Control ready |
| Streaming support | Google Chromecast built-in | Apple AirPlay 2 | Bluetooth aptX HD | Spotify Connect | Tidal Connect | UPnP MusicLife app | Roon Ready | MQA |
| Input impedance | 47k Ohms |
| Signal/noise ratio | 100dB/110dB (A-wtd ref 100W, normal/stereo direct) |
| Frequency response | 20Hz - 20kHz +/- 0.2dB |
| Dimensions | 433 x 425 x 171mm |
| Weight (net) | 18.1kg |
| Weight (packed) | 21.4kg |
