Arcam · Power Amplifiers
PA240

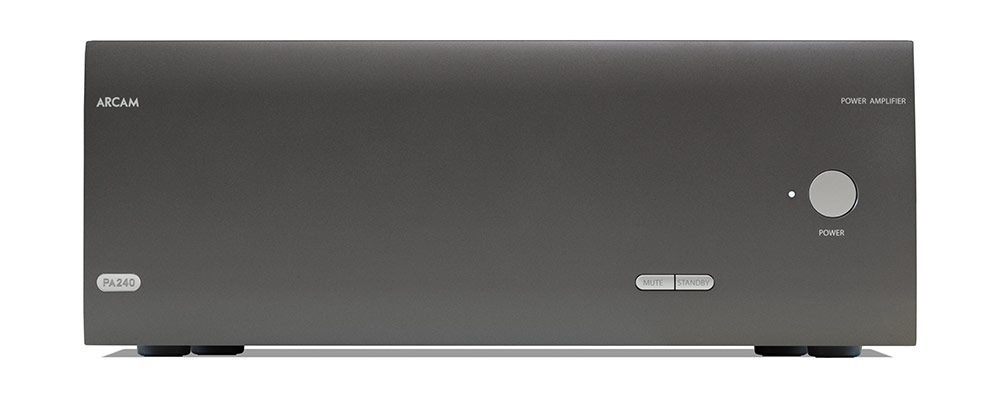

The Arcam PA240 is an HDA-series 2-channel Class G power amplifier with stereo, dual mono, and bridged operating modes.
fig. 01 · power amplifiers
PA240
current
From Arcam
The Arcam PA240 is an HDA-series power amplifier with 2 Class G channels and RCA and balanced XLR inputs. It runs in stereo, dual mono, or bridged mode, operates in Class A up to 50W, and delivers 225W per channel into 8 ohms with 2 channels driven.
Specifications
| Product type | Class G power amplifier |
|---|---|
| Amplifier class | Class G |
| Amplifier channels | 2 |
| Class A operation | 50W |
| Power output | 2 channels driven, 4 Ohms / 8 Ohms, 20Hz - 20kHz: 380W/225W | 1 channel driven, 8 Ohms bridged mode, 20Hz - 20kHz: 790W |
| Operating modes | stereo | dual mono | bridged |
| Inputs | RCA | balanced XLR |
| Input impedance | 10k Ohms |
| Signal/noise ratio | 110dB (A-wtd, 50W / 8 Ohms) |
| Frequency response | 20Hz - 20kHz +/- 0.05dB |
| Dimensions | 433 x 425 x 177mm |
| Weight (net) | 18kg |
| Weight (packed) | 19.7kg |
