Arcam · Speakers · Bookshelf Speakers
R15 (Coming Soon)
The Arcam R15 is a Radia-series bookshelf loudspeaker pair with 54Hz-40kHz frequency response.

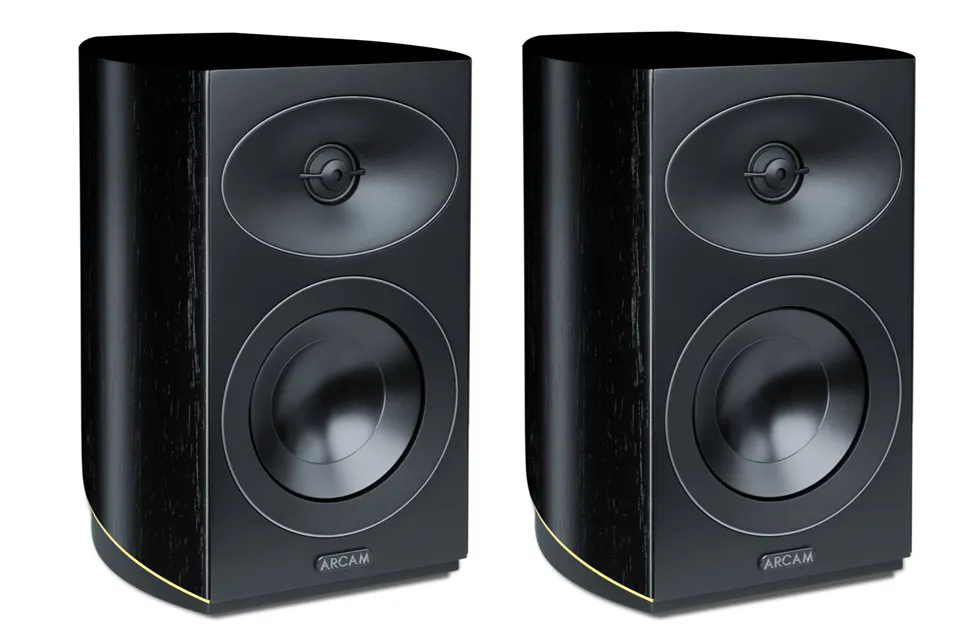

fig. 01 · speakers
R15 (Coming Soon)
From Arcam
The Arcam R15 is a Radia-series bookshelf loudspeaker pair in a black natural walnut veneer cabinet. It pairs a 130mm MCC low-frequency driver with a 25mm DCC dome tweeter, runs at 6-ohm nominal impedance, and has a 54Hz-40kHz frequency response. Recommended amplifier power is 15 to 150W.
Specifications
| Type | Bookshelf Loudspeakers |
|---|---|
| Cabinet Finish | Black Natural Walnut Veneer |
| Recommended Amplifier Power | 15-150W |
| Low Frequency Driver | 130mm (5.25 in) Micro Ceramic Composite (MCC) Cone with inverted surrounds in patented cast frames |
| High Frequency Driver | 25mm (1 in) Deep Ceramic Composite (DCC) Dome Tweeter in a patented waveguide with acoustic lens |
| Enclosure Tuning | Bass-Reflex via Rear-Mounted Port |
| Crossover Frequency | 1.8 kHz |
| Nominal Impedance | 6 Ohms |
| Frequency Response ± 6dB | 54Hz-40kHz |
| Sensitivity @ 1M, 2.83V | 85 dB |
| Dimensions W x D x H | W 200 x D 245 x H 294mm (7.9 x 9.6 x 11.6 in) |
| Product Weight (each) | 6.8kg (15.0 lbs) |
| Shipping Weight | 18.0kg (39.7lbs) |
| Shipping Units of Measure | Pair |
