R35
The Arcam R35 is a Radia-series floorstanding loudspeaker with 36Hz-40kHz frequency response.
fig. 01 · speakers
R35
current
From Arcam

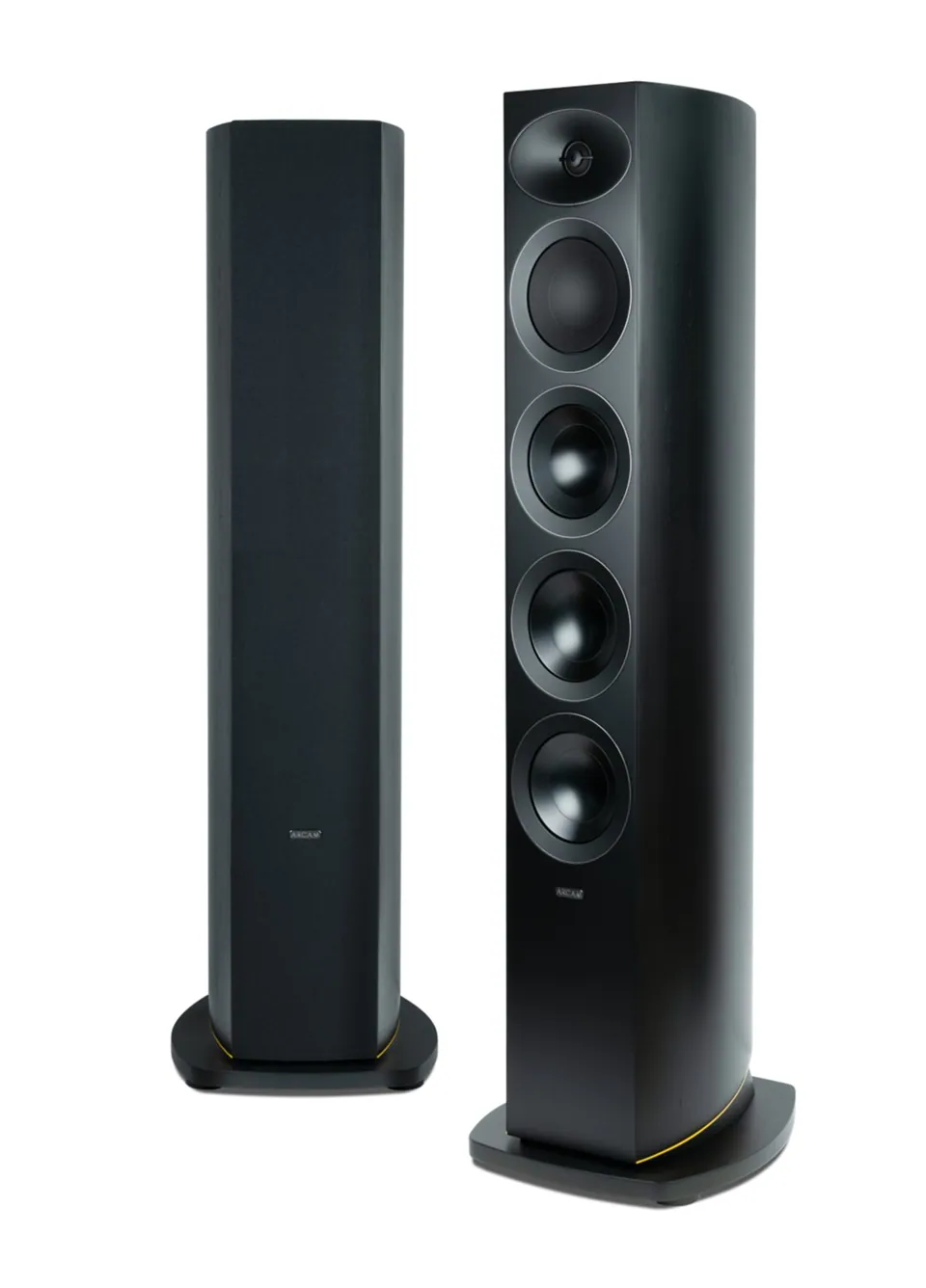

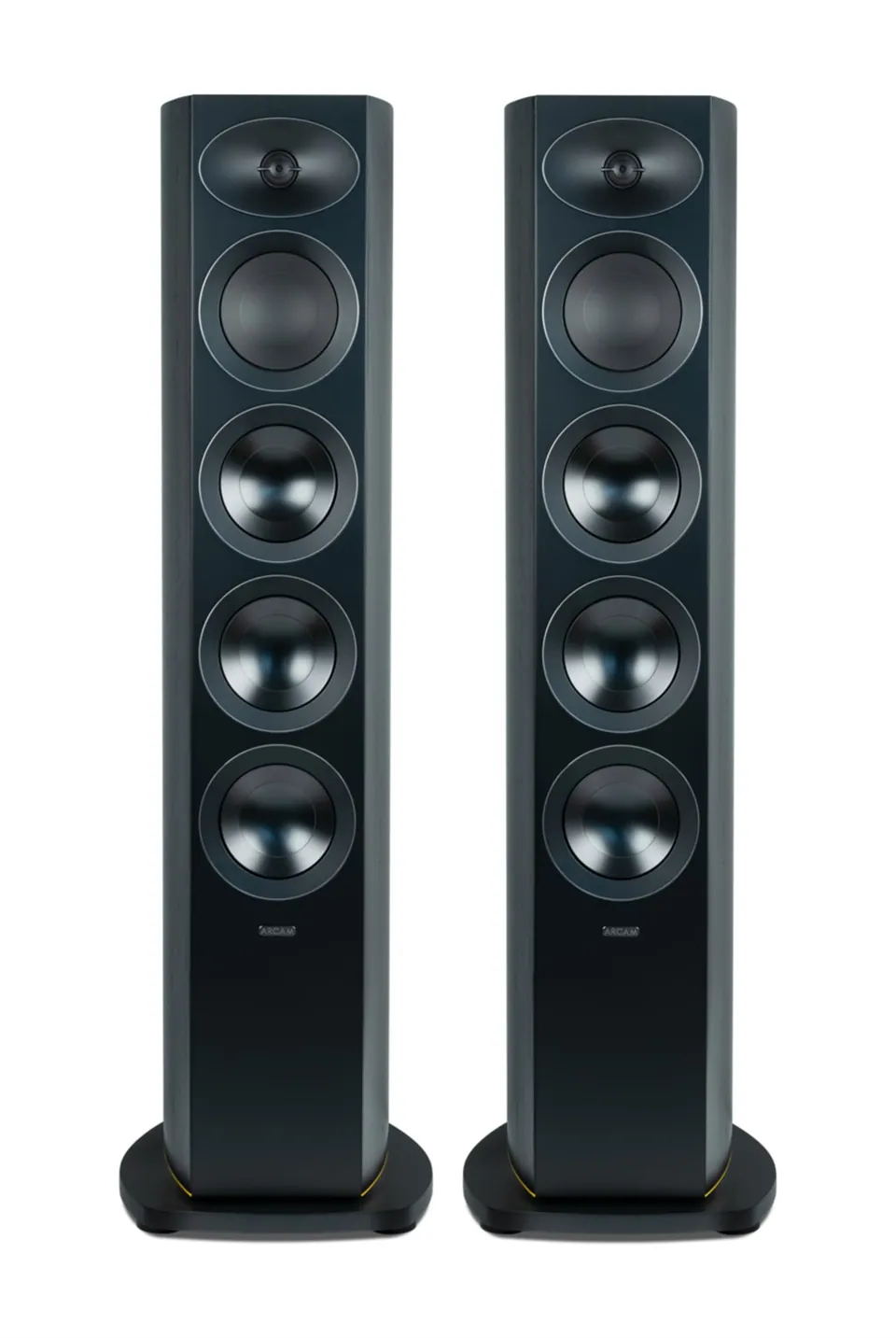

The Arcam R35 is a Radia-series floorstanding loudspeaker in a black natural walnut veneer cabinet. It has three 130mm MCC low-frequency drivers, a 130mm DCC midrange driver, and a 25mm DCC dome tweeter, with a 36Hz-40kHz frequency response. Recommended amplifier power is 30 to 225W.
Specifications
| Type | Floorstanding Loudspeaker |
|---|---|
| Cabinet Finish | Black Natural Walnut Veneer |
| Recommended Amplifier Power | 30-225W |
| Low Frequency Drivers | 3 x 130mm (5.25 in) Micro Ceramic Composite (MCC) Cone with inverted surrounds in patented cast frames |
| Midrange Driver | 130mm (5.25 in) Deep Ceramic Composite (DCC) with inverted surround in a patented cast frame |
| High Frequency Driver | 25mm (1 in) Deep Ceramic Composite (DCC) Dome Tweeter in a patented waveguide with acoustic lens |
| Enclosure Tuning | Bass-Reflex via Dual Rear-Mounted Ports |
| Crossover Frequencies | 350 Hz / 2.1 kHz |
| Nominal Impedance | 6 Ohms |
| Frequency Response ± 6dB | 36Hz-40kHz |
| Sensitivity @ 1M, 2.83V | 87 dB |
| Dimensions W (including plinth) x D x H | W 302 x D 353 x H 1038mm (11.9 x 13.9 x 40.9 in) |
| Product Weight | 29.1kg (64.0 lbs) |
| Shipping Weight | 38.6kg (85.1lbs) |
| Shipping Units of Measure | Single (Each) |
