Arcam · Speakers · Center Channel Speakers
R35C (Coming Soon)
The Arcam R35C is a Radia-series center-channel loudspeaker with dual 5.25-inch MCC drivers.
fig. 01 · speakers
R35C (Coming Soon)
From Arcam

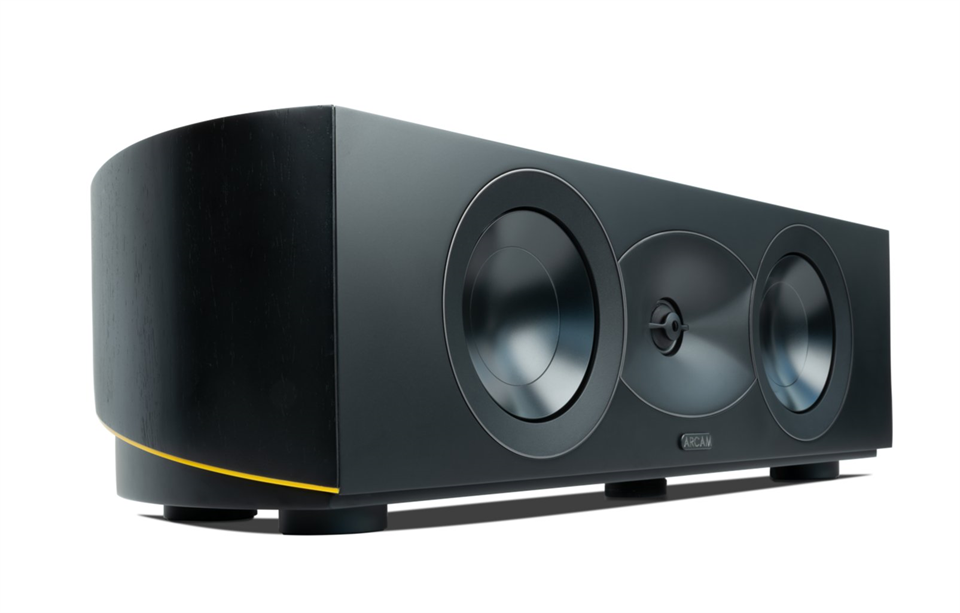

The Arcam R35C is a Radia-series center-channel loudspeaker finished in black natural walnut veneer. It pairs dual 5.25-inch MCC low-frequency drivers with a 1-inch DCC dome tweeter, uses rear bass-reflex tuning, and delivers a 55Hz-40kHz frequency response at 86 dB sensitivity.
Specifications
| Type | Centre Channel Loudspeaker |
|---|---|
| Cabinet Finish | Black Natural Walnut Veneer |
| Recommended Amplifier Power | 15-200W |
| Low Frequency Driver | 2 x 130mm (5.25 in) Micro Ceramic Composite (MCC) Cones with inverted surrounds in patented cast frames |
| High Frequency Driver | 25mm (1 in) Deep Ceramic Composite (DCC) Dome Tweeter in a patented waveguide with acoustic lens |

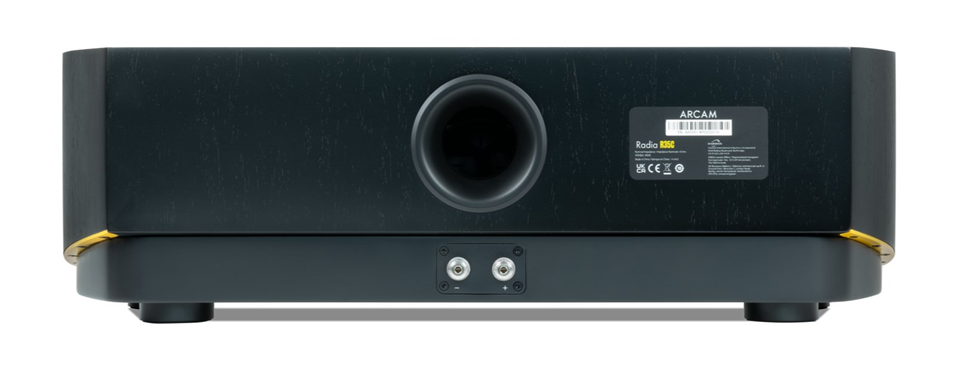

| Enclosure Tuning | Bass-Reflex via Rear-Mounted Port |
| Crossover Frequency | 1.8 kHz |
| Nominal Impedance | 6 Ohms |
| Frequency Response ± 6dB | 55Hz-40kHz |
| Sensitivity @ 1M, 2.83V | 86 dB |
| Dimensions W x D x H | W 595 x D 277 x H 181mm (23.4 x 10.9 x 7.1 in) |
| Product Weight (each) | 12.3kg (27.1 lbs) |
| Shipping Weight | 15.9kg (35.1 lbs) |
| Shipping Units of Measure | Each |
