Audiolab · Integrated Amplifiers
8300A
The 8300A is an 8300 Series stereo amplifier with an RCA input, speaker binding posts, and a frequency response held within +/-0.1dB from 10Hz to 20kHz.

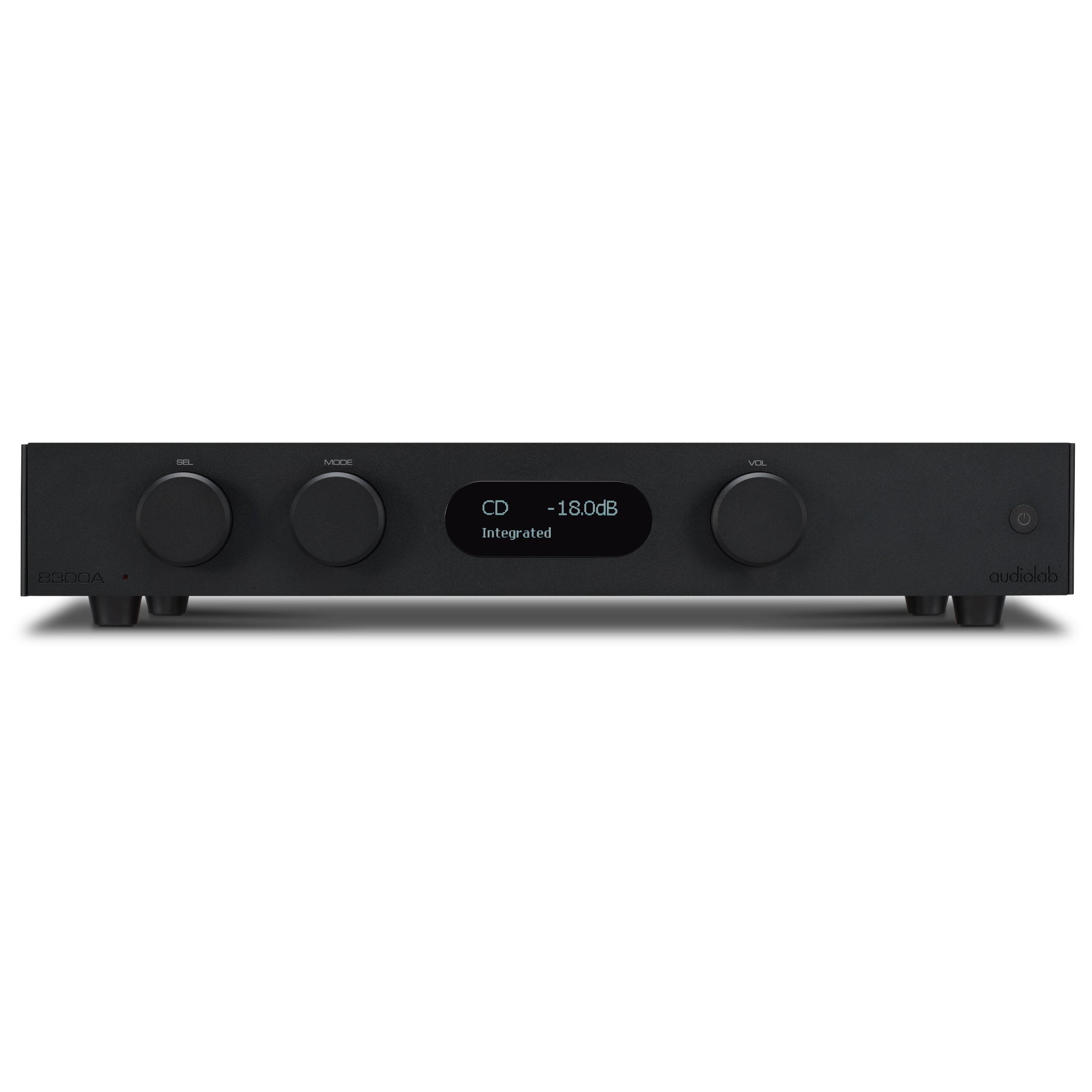

fig. 01 · integrated amplifiers
8300A
45335362142488
From Audiolab
The 8300A is Audiolab's main stereo amplifier in the 8300 line. It has an RCA input, speaker binding posts, and standby and trigger controls, with frequency response held within +/-0.1dB from 10Hz to 20kHz.
Specifications
| Model | 8300A |
|---|---|
| General description | Integrated Amplifier |
| Design philosophy and core technology | Dual Mono Power Amp Design |
| Display | OLED 128x64 pixels 2.7" |
| Controls | Logarithmic Ladder Volume Design |
| Finish | Fine Textured Aluminium (Black / Silver) |
| Standby Features | Yes |
| 12V Trigger | Yes |
| Phono | Yes (MM/MC) |
| Balanced XLR Input | Yes |
| Inputs | 1 x RCA |
| Outputs | Speaker Binding Post Terminals |
| Input sensitivity (Phono RIAA) | 50K // 100pF |
| Input impedance (line inputs) | 50K // 100pF |
| Input impedance (phono inputs) | 47K // 100pF (MM), 100R // 1.5nF (MC) |
| Output voltage | 2.3V max. (< 0.02% THD) |
| Output impedance | 120Ω |
| Frequency response (Line) | +/- 0.1dB (10Hz - 20kHz)+/- 3.0dB (1Hz - 100kHz) |
| Frequency response (Phono RIAA) | +/- 1.0dB (20Hz - 20kHz) |
| Channel Imbalance | < 0.2dB (10Hz - 20kHz) |
| Total harmonic distortion (THD) Line | <0.001% |
| Total harmonic distortion (THD) Phono | <0.002% |
| Signal-to-noise ratio (Line) | > 107dB>109dB(A-weighted) |
| Signal-to-noise ratio Phono (MM) | > 73dB> 78dB(A-weighted) |
| Signal-to-noise ratio Phono (MC) | > 68dB> 73dB(A-weighted) |
| Crosstalk | < 80dB (L-> R & R->L @10kHz) |
| Gain | 29dB (20Hz-20kHz) |
| Input Sensitivity | 840mV (Power Out = 70W into 8Ω) |
| Input impedance | 15K // 100pF |
| Rated max power output THD < 1% | 2 x 75W RMS (8Ω) , 2 x 115W (4Ω)(Vmains = 230V , THD < 1%) |
| Peak output current | +/- 15A |
| Frequency response | +/- 0.1dB (10Hz - 20kHz)+/- 3.0dB (1Hz - 100kHz) |
| Total harmonic distortion (THD) | <0.002% (Power Out= 50W @ 1kHz, BW = 20Hz - 20kHz) |
| Signal-to-noise ratio | > 107dB (BW = 20 - 20kHz )>109dB(A-weighted BW = 20 - 20kHz) |
| Damping factor | >100 (8Ω Load @ 1kHz) |
| Dimensions | 80 x 444 x 330.3mm |
| Net weight | 7.8kg |
| Product type | integrated amplifier |
| Series | 8300 Series |
