Audiolab · CD & SACD Players
8300CD

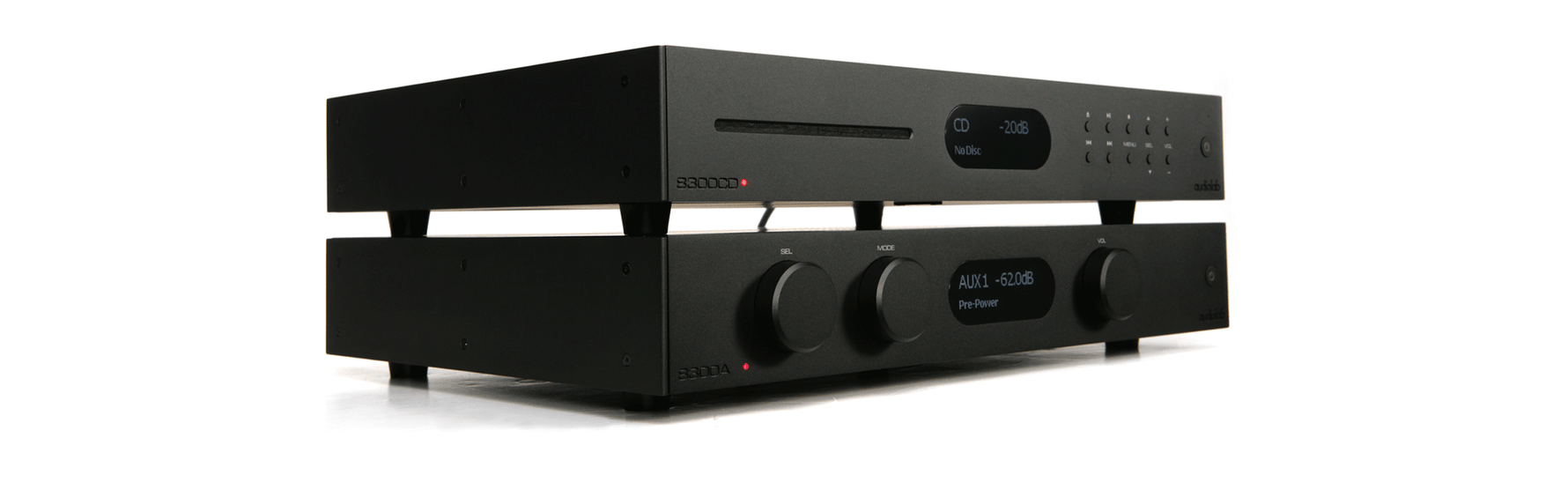

The 8300CD is an 8300 Series CD player and DAC with slot-loading disc playback, USB, coaxial, optical, and AES digital paths.
fig. 01 · cd & sacd players
8300CD
45335365026072
From Audiolab
The 8300CD combines CD/CD-R playback with Audiolab's ESS Sabre32 9018 DAC platform. It supports coaxial, optical, AES, and USB digital use, with PCM to 384kHz and DSD256 listed in the saved specs.
Specifications
| Model | 8300CD |
|---|---|
| General Description | CD Player, Digital-to-Analogue Converter |
| Finish | Fine Textured Aluminium (Black / Silver) |
| Display | POLED 128x64 pixels 2.7" |
| Standby Feature | Yes |
| 12V Trigger | Yes |
| CD Mechanism | Slot-Loading |
| DSD Compatible | Yes (DSD64 / DSD128 / DSD256) |
| Disc Compatibility | CD/CDR |
| DAC | ESS Sabre32 9018 chip |
| Resolution | 32 bits |
| Sampling Frequency | Optical,Coaxial, AES: 32kHz - 192kHzUSB:32kHz - 384kHz(PCM) / DSD64, DSD128, DSD256 |
| Maximum Sampling Frequency | Optical,Coaxial, AES: 192kHzUSB: 384kHz (PCM) / 11.2M (DSD256) |
| Digital Input | 2 x Coaxial, 2 x Toslink Optical, 1xAES/EBU, 1 x USB for PC USB, |
| Digital Output | 1 x Coaxial, 1 x Toslink Optical,1 x AES |
| Output Voltage | 4.2Vrms ±0.1 (Balanced)2.1Vrms ±0.1 (Unbalanced) |
| Output Impedance | 10Ω |
| THD (1kHz 0dB 20Hz - 20kHz A wtd. | <0.002% |
| Frequency Response +/-0.2dB | 20Hz - 20kHz (± 0.2dB) |
| Signal-to-Noise Ratio (S/N) A wtd | RCA:<-98dB ,XLR<-100dB |
| Dynamic Range (A wtd.) | RCA:>98dB ,XLR>100dB |
| Crosstalk @1K | RCA:<-120dB , XLR <-130dB |
| Gain Error | <0.5W |
| Dimensions (H x W x D) | 80 x 444 x 317mm |
| Weight | 6kg |
| Product type | CD player |
| Series | 8300 Series |
