Audiolab · CD & SACD Players
9000CDT

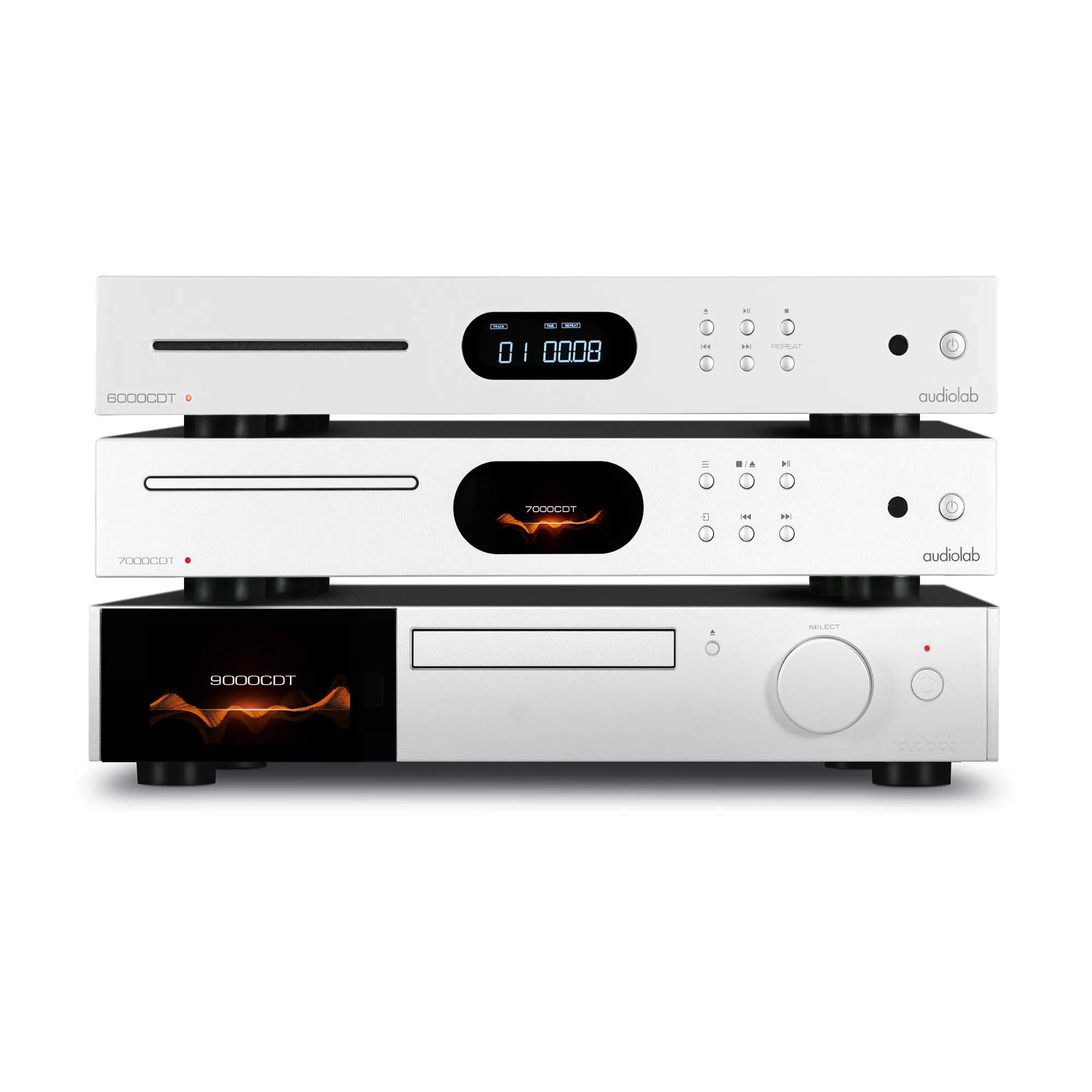

The 9000CDT is a 9000 Series CD transport for disc playback into an external DAC.
fig. 01 · cd & sacd players
9000CDT
45086079025432
From Audiolab
The 9000CDT is the disc transport match for Audiolab's 9000 Series electronics. Its normalized source data identifies it as a CD transport, keeping conversion duties outside the transport path for systems built around a separate DAC or digital input stage.
Specifications
| Model | 9000CDT |
|---|---|
| General Description | CD Transport and USB HDD player |
| USB Storage Device Audio Format | MP3, WMA, AAC, WAV file compatible |
| USB Storage Device File System | FAT12, FAT16 and FAT32 device compatible |
| Digital Output Amplitude | 500mV +/-50mVpp |
| Output Impedance | 75Ω |
| Frequency Response | -0.01dB (20Hz-20kHz, ref.1 kHz) |
| Total Harmonic Distortion (THD) | < 0.002% |
| Sampling Rate | 44.1kHz (48kHz files can be played via the 9000CDTbut will be resampled to 44.1kHz) |
| Digital Output Interface | 1 x Coaxial , 1 x Optical |
| Standby Power Consumption | < 0.5W |
| Power Requirements (according to region) | 220-240V - 50/60Hz100-120V - 50/60Hz |
| Product Size (mm) (W x D x H) | 444 x 89 x 342 |
| Carton Size (mm) (W x D x H) | 514 x 470 x 161 |
| Net Weight | 5.74kg |
| Gross Weight | 7.6kg |
| Product type | CD transport |
| Series | 9000 Series |
