Audiolab · Preamplifiers
9000Q
The 9000Q is a 9000 Series stereo preamp with analogue, XLR, MM phono, Bluetooth, USB, coaxial, and optical inputs.
fig. 01 · preamplifiers
9000Q
49306776338712
From Audiolab

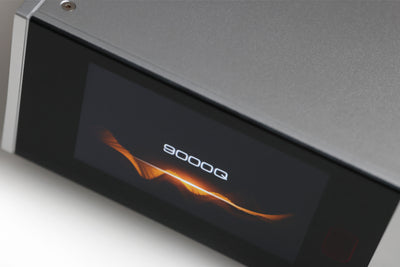

The 9000Q is Audiolab's 9000 Series control component for systems using separate power amplification. It carries RCA and XLR outputs, headphone output, dual trigger outputs, ES9038Pro conversion, MM phono input, and digital playback support up to PCM 768kHz and DSD512.
Specifications
| Model | 90000Q |
|---|---|
| General Description | Preamplifier |
| Design Philosophy and Core Technology | ES9038Pro 32-bit DAC4.3” 800 x 480 IPS LCDBluetooth 5.1 (aptX/aptX HD/LDAC) streamingDedicated Current-Feedback Headphone AmpDedicated High Performance Low Noise MM Phono stage |
| Inputs | 3 x Analogue, 1 x XLR, 1 x Phono (MM)2 x SPDIF (Coax), 2 x SPDIF (Optical)1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC) |
| Outputs | 2 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger |
| Sampling Frequency | Optical/Coaxial: 44.1-192kHzSampling FrequencyPC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD5, DSD512 |
| D to A Converter | ES9038Pro |
| Input Sensitivity | 1Vrms (Line, Volume = 0dB)2Vrms (XLR, Volume = 0dB)4.5mV (Phono MM, Volume = 0dB) |
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW ) |
| Frequency Response | 20Hz - 20kHz (+/-0.1dB) |
| Output lmpedance | 2.35 ohm |
| Max.Sampling Frequency | Optical, Coaxial: 192KHzPC USB: PCM768kHz, DSD512 |
| Signal-to-noise Ratio (S/N) | > 113dB (A-weighted, RCA)> 117dB (A-weighted, XLR Direct) |
| Load lmpedance | 20-600 ohm |
| Standby Power Consumption | <0.5W |
| Net Weight | 6.2kg |
| Gross Weight | 8kg |
| Dimensions(mm) (W x H x D) | 444 x 90 x 328 mm |
| Carton Size (mm) (W x H x D) | 514 x 165 x 470 mm |
| Finish | Silver / Black |
| Power Requirements(depending on region) | 220-240V - 50/60Hz100-120V - 50/60Hz |
| Standard Accessories | Power Cord, Remote Control, User Manual, Antennas |
| Product type | preamplifier |
| Series | 9000 Series |
