D7

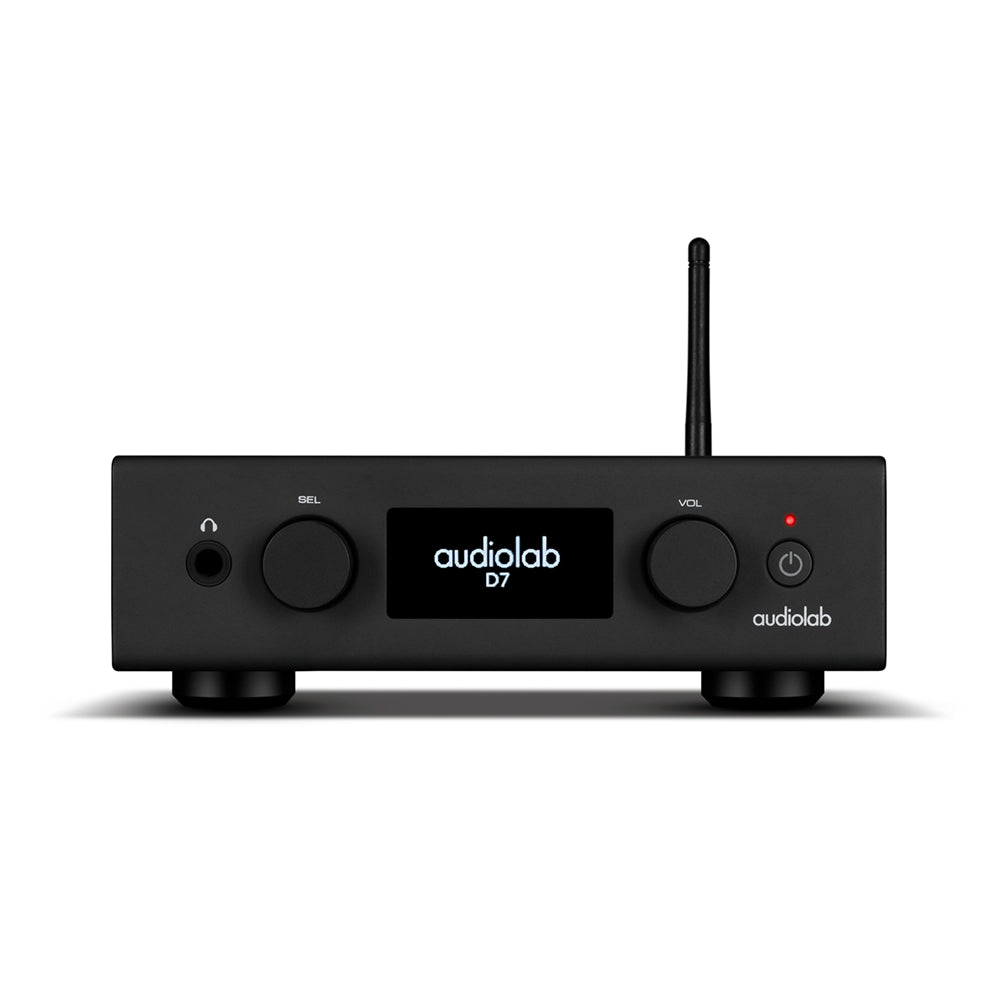

The D7 is a compact DAC with USB-B, USB-A, Bluetooth, coaxial, optical, RCA, XLR, headphone, and trigger connections.
fig. 01 · dacs
D7
50025662021912
From Audiolab
The D7 continues Audiolab's M-DAC family logic in a compact digital component. It uses ES9038Q2M conversion and supports PCM up to 768kHz plus DSD512 over USB-B, with RCA, XLR, headphone, optical, and coaxial outputs.
Specifications
| Model | D7 |
|---|---|
| General Description | DAC |
| Design Philosophy and Core Technology | ES9038Q2M 32-bit DACOLED DisplayBluetooth 5.1 (aptX / aptX HD) streamingDedicated Current-Feedback Headphone AmpSupports playing USB memory device (MP3 / WMA / APE / AAC / WAV / FLAC)USB Firmware Upgrade |
| Inputs | 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD) |
| Outputs | 1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x Coax |
| Sampling Frequency | Optical/Coaxial: 44.1kHz-192kHzUSB HDD: 44.1kHz-96kHzPC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
| D to A Converter | ES9038Q2M |
| Output Level (0dBFS, 1kHz) | 2.05Vrms (RCA), 4.1Vrms (XLR) |
| Total Harmonic Distortion (THD) | < 0.001% (1KHz @ 0dBFS) |
| Frequency Response | 20Hz-20kHz (+/-0.2dB) |
| Output Impedance | 2.35 ohm |
| Max. Sampling Frequency | USB HDD: 96KHz Optical,Coaxial: 192KHz PC USB: PCM768kHz, DSD512 |
| Signal-to-noise Ratio (S/N) | > 115dB (A-weighted, RCA)> 117dB (A-weighted, XLR) |
| Total Harmonic Distortion(THD) | < 0.01% (1kHz, 50mW ) |
| Load Impedance | 20-600 ohm |
| Standby Power Consumption | <0.5W |
| Net Weight | 1.42 kg |
| Gross Weight | 2.2 kg |
| Dimensions (mm) (W x H x D) | 180 x 56 x 208mm |
| Carton Size (mm) (W x H x D) | 290 x 85 x 325mm |
| Power Requirements (depending on region) | 220-240V ~ 50/60Hz100-120V ~ 50/60Hz |
| Standard Accessories | Power adapter, Remote Control, User Manual, etc. |
| Product type | digital-to-analog converter |
| Series | D Series |
