D9

The D9 is a D Series DAC with ES9038Pro conversion, USB, AES3/EBU, Bluetooth, coaxial, optical, RCA, XLR, and headphone paths.

fig. 01 · dacs

D9

50025670836504

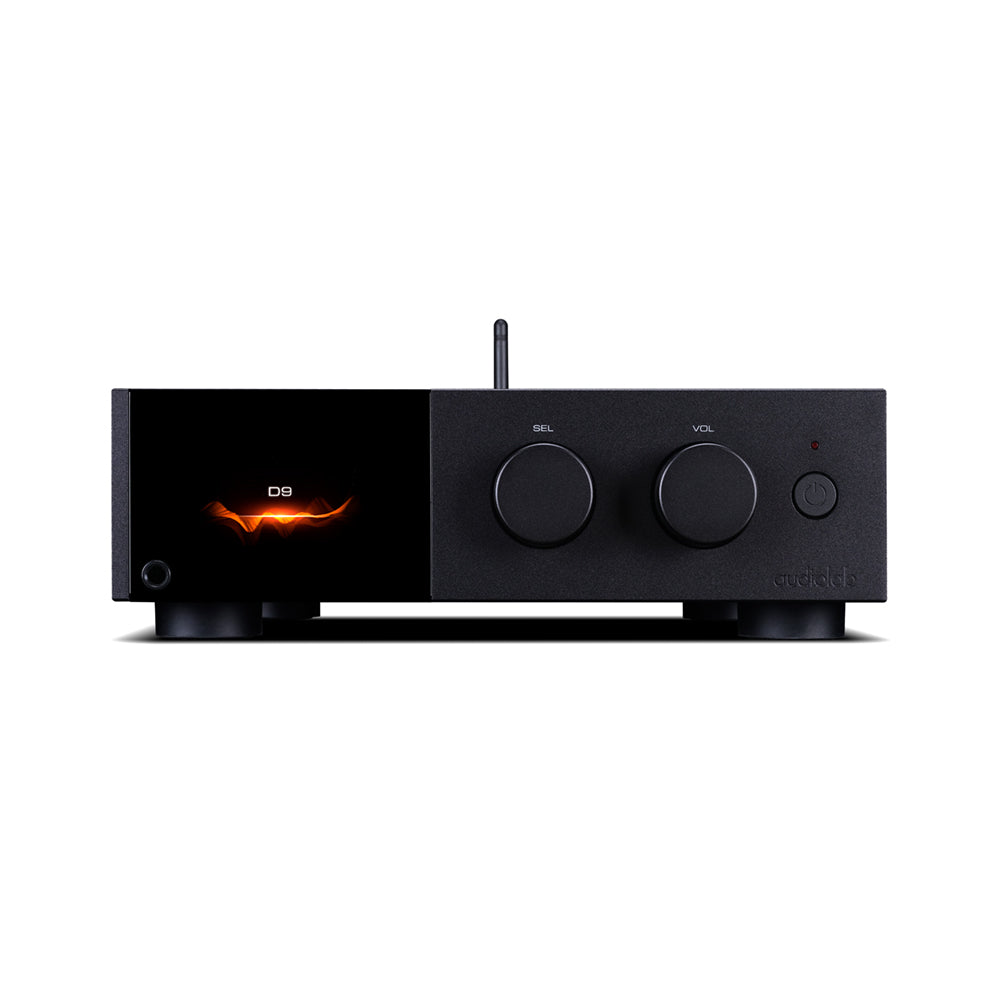

Audiolab D9
fig. 01 · D9photograph · Audiolab

From Audiolab

The D9 is the larger D Series converter in the Audiolab raw set. Its saved specs list ES9038Pro conversion, USB-B support to PCM 768kHz and DSD512, AES3/EBU input, balanced output, and a 277mm-wide chassis.

Specifications

ModelD9
General DescriptionDAC
Design Philosophy and Core TechnologyES9038Pro 32-bit DAC2.8" 480x640 large size full view IPS LCDBluetooth 5.1 (aptX / aptX HD / LDAC) streamingDedicated Current-Feedback Headphone AmpVU Digital / VU Analogue MeterUSB HDD Playback with MP3/WMA/AAC/WAV/FLAC/APE compatibilityUSB Firmware Upgrade
Inputs2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD), 1 x AES3/EBU
Outputs1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x COAX outputs
Sampling FrequencyOptical/Coaxial: 44.1kHz → 192kHzUSB HDD: 44.1kHz → 96kHzPC USB: 44.1kHz → 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
D to A ConverterES9038Pro
Output Level (0dBFS, 1kHz)2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD)< 0.001% (1kHz @ 0dBFS)
Frequency Response20Hz-20kHz (+/-0.1dB)
Output Impedance2.35 ohm
Max. Sampling FrequencyUSB HDD: 96kHzOptical, Coaxial: 192kHzPC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N)> 118dB (A-weighted, RCA)> 123dB (A-weighted, XLR)
Total Harmonic Distortion(THD)< 0.01% (1kHz, 50mW )
Load Impedance20-600 ohm
Standby Power Consumption<0.5W
Net Weight4.2 kg
Gross Weight5.8 kg
Dimensions (mm) (W x H x D)277 x 88.3 x 315mm
Carton Size (mm) (W x H x D)409 x 220 x 451mm
Power Requirements (depending on region)220-240V ~ 50/60Hz100-120V ~ 50/60Hz
Standard AccessoriesPower Cord, Remote Control, User Manual, etc.
Product typedigital-to-analog converter
SeriesD Series
