Audiolab · Power Conditioning

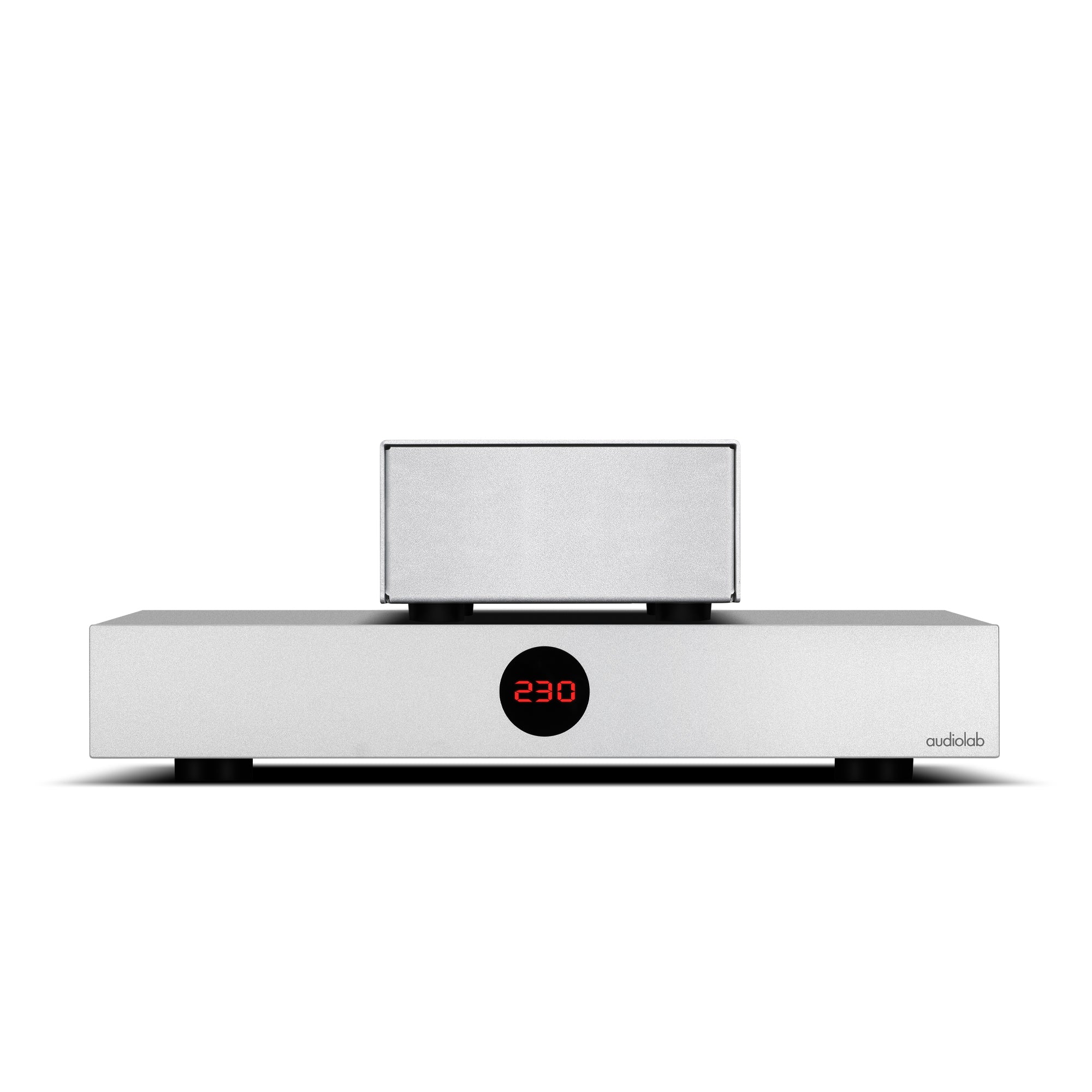

DC Block 6
The DC Block 6 combines DC blocking with six mains receptacles for an audio system.
fig. 01 · power conditioning
DC Block 6
45335874240792
From Audiolab
The DC Block 6 expands Audiolab's DC blocking approach into a mains distribution component. Its saved specs list 8A loading per receptacle, 10A maximum total loading, and compatibility language for audio amplifier use.
Specifications
| Model | DC Block 6 |
|---|---|
| General Description | Mains filter & direct current blocker |
| Design Philosophy and Core Technology | 6 outletsHigh frequency filter suppressing noise on the mains power lineBlocks DC on the mains power lineOverload protectionDigital voltage |
| Audio Power | Each receptacle loading 8A |
| Amplifier Compatibility | Max total loading 10A |
| Net Weight | 4.6k |
| Gross Weight | 6.8kg |
| Dimensions (mm) (W x H x D) | 444 x 306.4 x 78.4 |
| Carton Size (mm) (W x H x D) | 500 x 455 x 140 |
| Finish | Black / silver |
| Power Requirements (depending on region) | 100-240V ~ 50/ 60Hz |
| Standard Accessories | 6 x IEC C13 to C14 cables 1 x Power cord |
| Product type | DC blocker / mains distribution |
