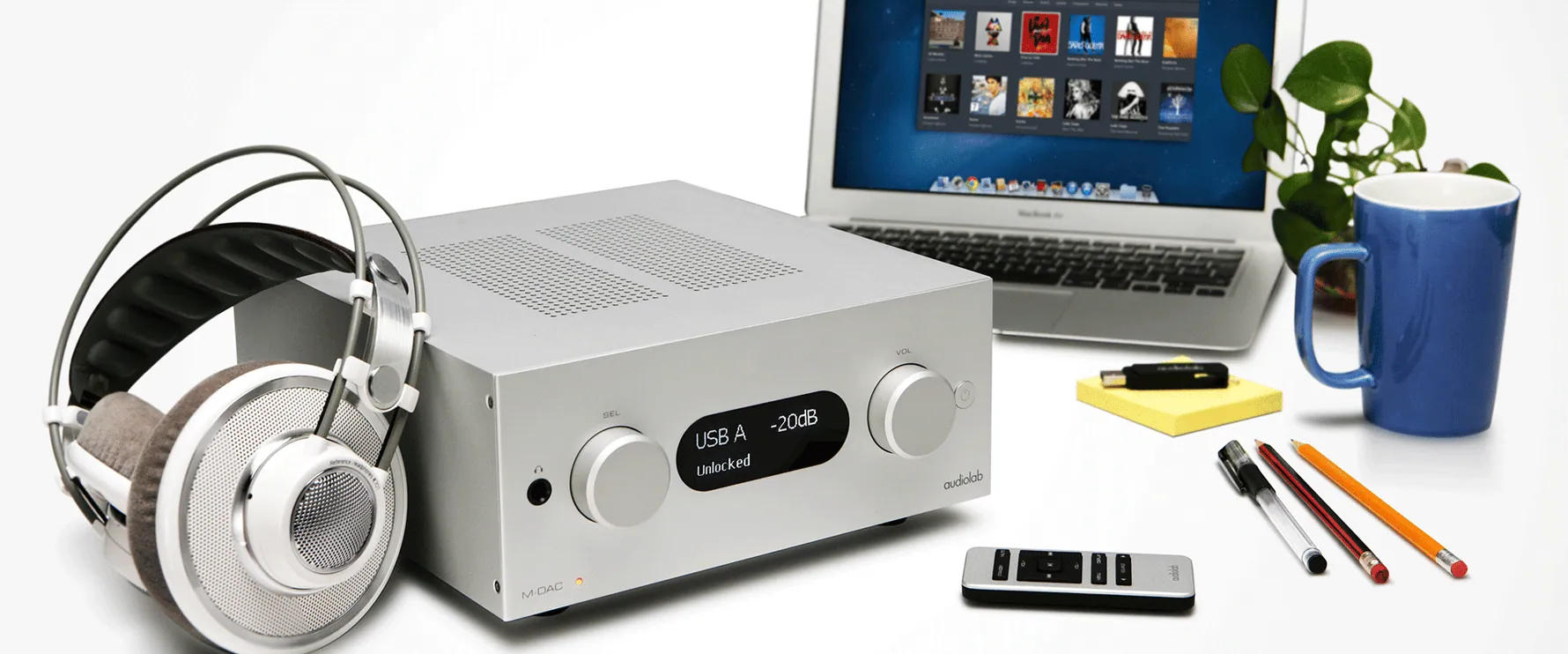

M-DAC+
The M-DAC+ is an M-DAC Series converter with an ESS Sabre32 9018 chip and coaxial plus optical digital outputs.
fig. 01 · dacs
M-DAC+
45335836721432
From Audiolab
The M-DAC+ is Audiolab's desktop or system DAC in the M-DAC family. It converts digital audio through an ESS Sabre32 9018 chip, with coaxial and optical outputs, and works as a digital preamp for home audio systems.
Specifications
| Model | M-DAC+ |
|---|---|
| General description | Digital-to-Analogue Converter |
| DAC | ESS Sabre32 9018 chip |
| Sampling Rate | 24-bit / 192kHz (Optical, Coaxial, AES)32-bit / 384kHz (USB)2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256) |
| Digital Input | 2 x Coaxial, 2 x Toslink Optical, 1 x AES/EBU, 1 x USB for PC USB, 1x USB for iPod/iPhone/iPad |
| Digital Output | 1x Coaxial, 1 x Toslink Optical |
| Output Voltage | Balanced: 4.5V RMSUnbalanced: 2.25V RMS |
| Output Impedance | Balanced: 20ΩUnbalanced: 10Ω |
| THD (1kHz 0dB 20Hz - 20kHz A wtd) | <0.002% |
| Frequency Response | 20Hz - 20kHz (± 0.2dB) |
| Signal to Noise Ratio | RCA: > -115dB, XLR: > -120dB |
| Dynamic Range | RCA: > 115dB, XLR: > 120dB |
| Crosstalk | RCA: > 120dB, XLR: > 130dB |
| Dimensions (mm) | 114mm x 247mm x 292mm |
| Net Weight | 3.7kg |
| Product type | digital-to-analog converter |
| Series | M-DAC Series |
