Audiolab · DACs

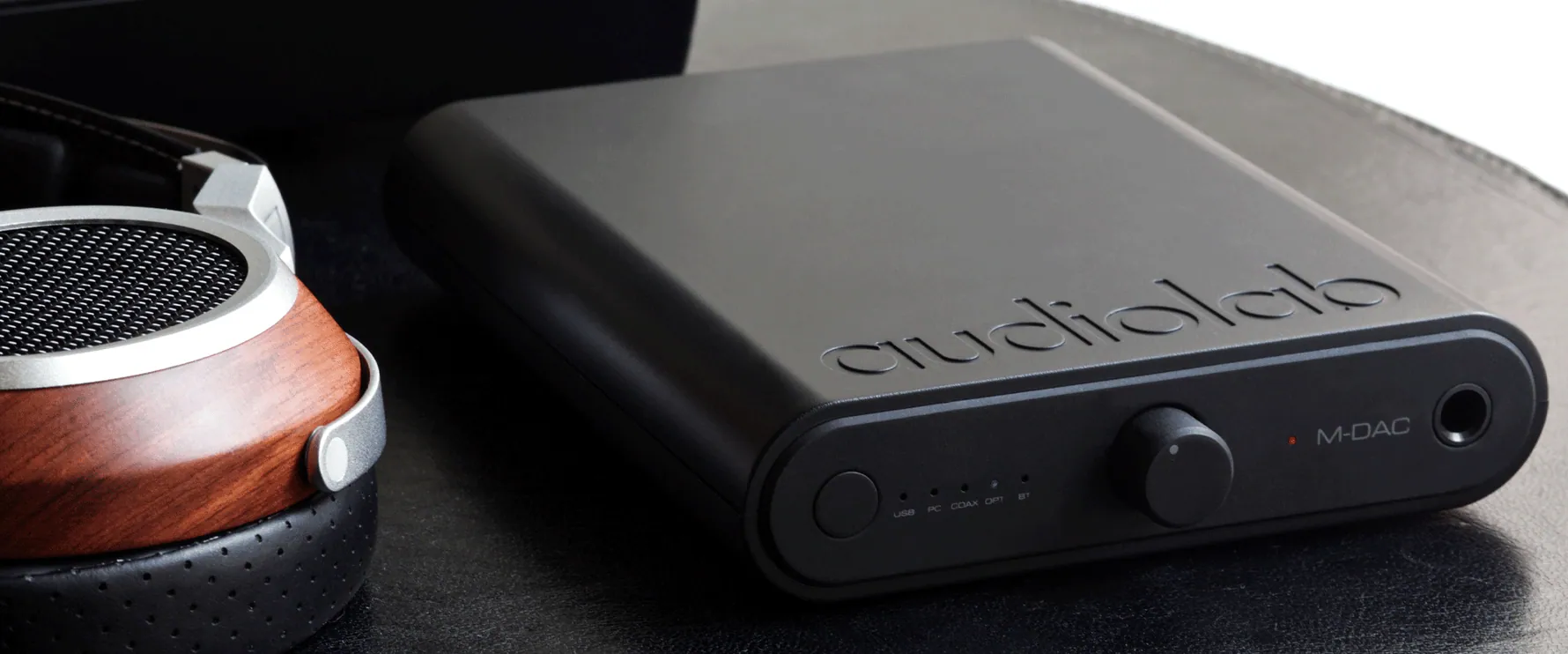

M-DAC Mini
The M-DAC Mini is an M-DAC Series converter using ESS Sabre32 Reference ES9018K2M processing.
fig. 01 · dacs
M-DAC Mini
45912542183704
From Audiolab
The M-DAC Mini brings Audiolab's M-DAC platform into a smaller converter format. Its saved specs list ESS Sabre32 Reference ES9018K2M conversion, coaxial and optical digital output, and support for system or desktop use.
Specifications
| Model | M-DAC MINI |
|---|---|
| General description | Digital-to-Analogue Converter |
| DAC | ESS Sabre32 Reference ES9018K2M |
| Sampling Rate | Optical, Coaxial: 192kHzUSB: 384kHzDSD64, DSD128, DSD256 |
| Digital Input | Coaxial, Optical, USB micro-B for PC/AndroidUSB-A for iOS, Bluetooth |
| Digital Output | Coaxial, Optical |
| Output Voltage | 5Vrms ±0.1 |
| Frequency Response | 20Hz - 20kHz (± 0.2dB) |
| Signal to Noise Ratio | 115dB （A Weighted） |
| Battery | Li-ion Type DC 3.7V 5000mAh |
| Playback Time | Up to 7 hours |
| Dimensions (mm) | 34mm x 136mm x 178mm |
| Product type | digital-to-analog converter |
| Series | M-DAC Series |
