Audiolab · Integrated Amplifiers
M-ONE

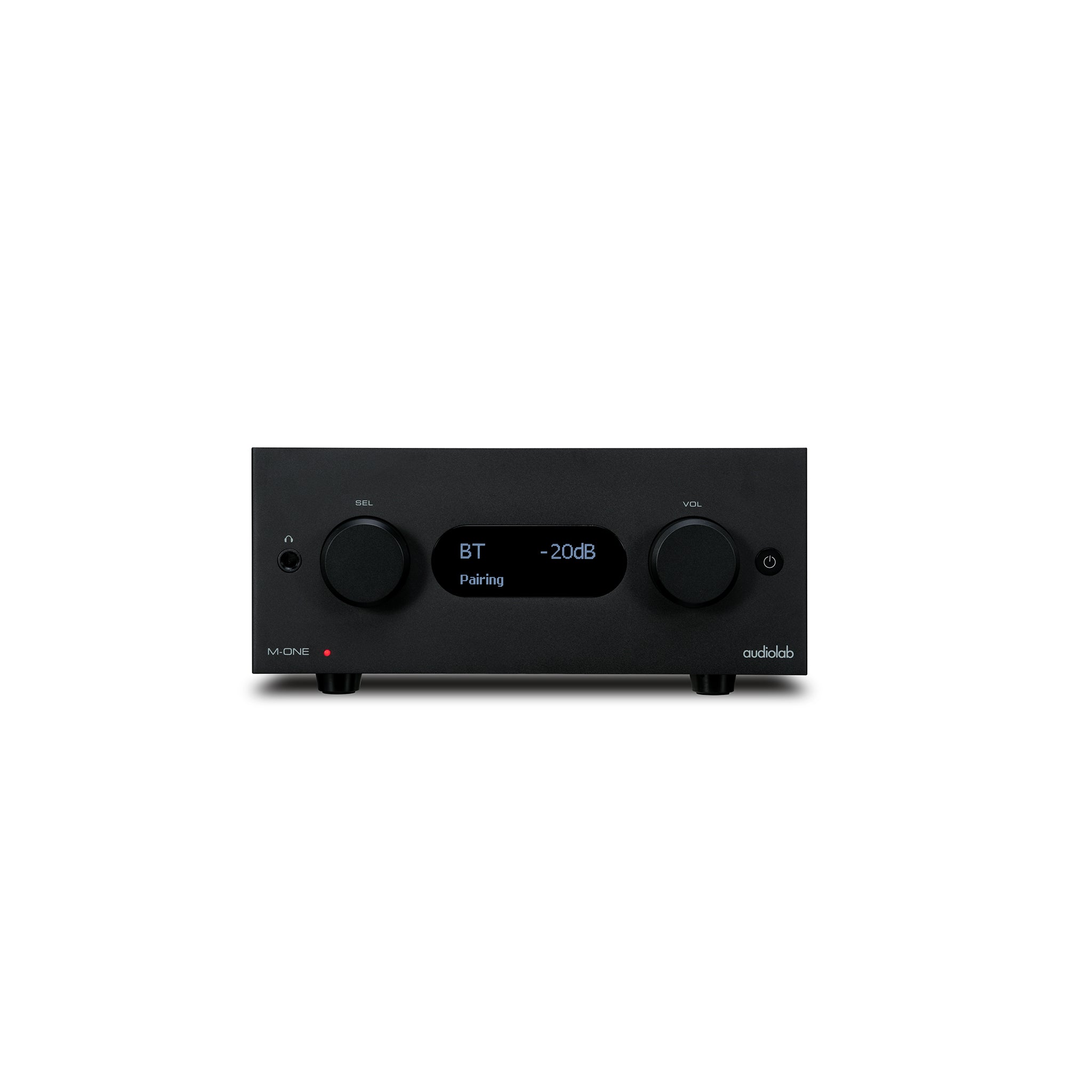

The M-ONE is a compact stereo amp in the M-DAC family with USB, coaxial, optical, Bluetooth, RCA, headphone, and speaker connections.
fig. 01 · integrated amplifiers
M-ONE
45912552538392
From Audiolab
The M-ONE combines Audiolab's compact amp format with M-DAC family digital input support. Its saved specs list USB-A for Apple devices, USB-B for computer audio, coaxial, optical, Bluetooth, RCA, headphone, and speaker terminal connections.
Specifications
| Model | M-ONE |
|---|---|
| General description | Integrated Amplifier with Bluetooth |
| Sampling Rate | 32-bit / 192kHz (Optical, Coaxial)32-bit / 384kHz (USB)2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256) |
| Input sensitivity | 515mV |
| Input impedance | 10K |
| Inputs | 1 x USB A for apple devices, 1 x USB B for computer,1 x COAX, 1 x OPT, 1 x Bluetooth, 2 x RCA ,1 x headphone |
| 12v Trigger | Yes |
| Power Output (8 Ohms) | 2 x 40W |
| Power Output (4 Ohms) | 2 x 60W |
| Frequency response (-3dB) | 10-30kHz |
| Total harmonic distortion (THD) | 0.01% |
| Signal-to-noise ratio (S/N) | 105dB |
| Outputs | Speaker Terminal Outputs |
| Dimensions | 114mm x 247mm x 292mm |
| Net weight | 5.5kg |
| Product type | compact integrated amplifier |
| Series | M-DAC Series |
