Audiolab · All-in-One Systems

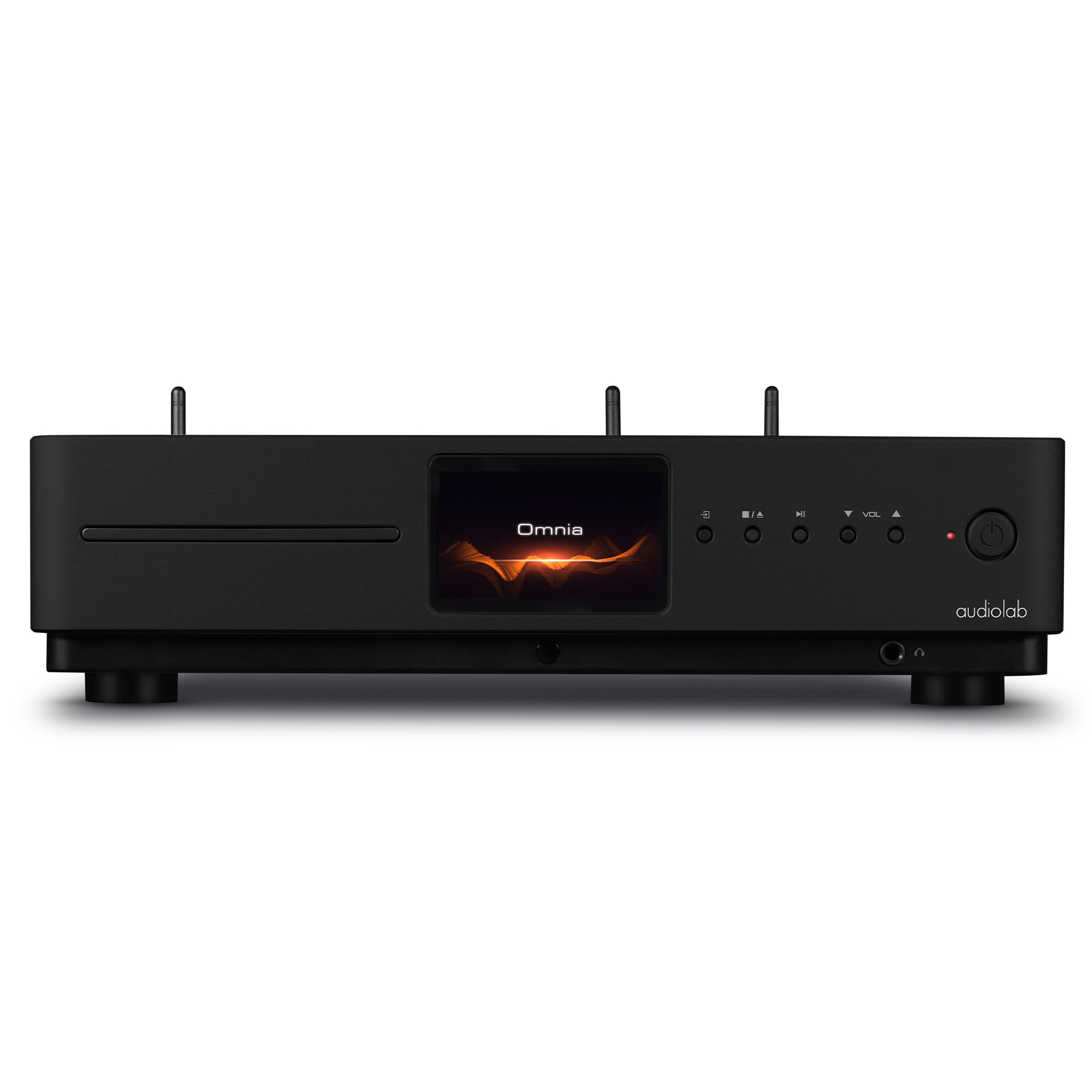

Omnia
Omnia is Audiolab's CD, streaming, Bluetooth, USB, phono, and stereo amp system in one chassis.
fig. 01 · all-in-one systems
Omnia
45335913726232
From Audiolab
Omnia gathers disc playback, DTS Play-Fi streaming, USB audio, Bluetooth, MM phono, coaxial, optical, headphone, preamp, and speaker connections into a single Audiolab component. The source specs list 50W per channel into 8 ohms and PCM up to 768kHz with DSD512 over USB.
Specifications
| Model | Omnia |
|---|---|
| General Description | Integrated Amplifier |
| Inputs | 3 x Analogue, 1 x Phono (MM) , 1 x Power Amplifier, 2 x SPDIF (Coax),2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B),1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger |
| Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
| Sampling Frequency | Optical / Coaxial:44.1kHz ---192kHzPC USB: 44.1kHz - 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
| Gain | +29dB |
| Input Sensitivity | 720mV |
| Input Impedance | 10K (Line)47K // 100pF (Phono MM) |
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW ) |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Output Voltage | 2.3V max. (Volume = 0dB) |
| Output Impedance | 10ohm |
| Signal-to-Noise Ratio | >110dB (Line,A-weighted)76dB (Phono MM,A-weighted) |
| D to A Converte | ES9038Q2M |
| Output level (0dBFS, 1KHz) | 2.1Vrms |
| Max. Sampling Frequency | Optical, Coaxial: 192KHzEthernet,Wi-Fi: 192KHzUSB A：48kHzPC USB: PCM768kHz, DSD512 |
| Signal-to-noise Ratio (S/N) | 114dB (A-weighted) |
| Rated Power Output | 2 x 50W (8 ohm, THD < 1%)2 x 75W (4 ohm, THD < 1%) |
| Signal-to-Noise Ratio (S/N) | 110dB (A - weighted) |
| Max. Output Current | 9A |
| Load impedance | 20-600 ohm |
| Standby Power Consumption | < 0.5W |
| Net Weight | 9.1kg |
| Gross Weight | 11kg |
| Dimensions (mm) (W x H x D) | 440 x156 x 327 |
| Carton Size (mm) (W x H x D) | 540 x 412 x 210 |
| Finish | Black / Silver |
| Power Requirements (depending on region) | 220-240V ~ 50/ 60Hz100-120V ~ 50/ 60Hz |
| Standard Accessories | Power Cord, Remote Control,User Manual, Antennas, etc. |
| Product type | CD / streaming amplifier |
| Series | Omnia |
