Esoteric · CD & SACD Players

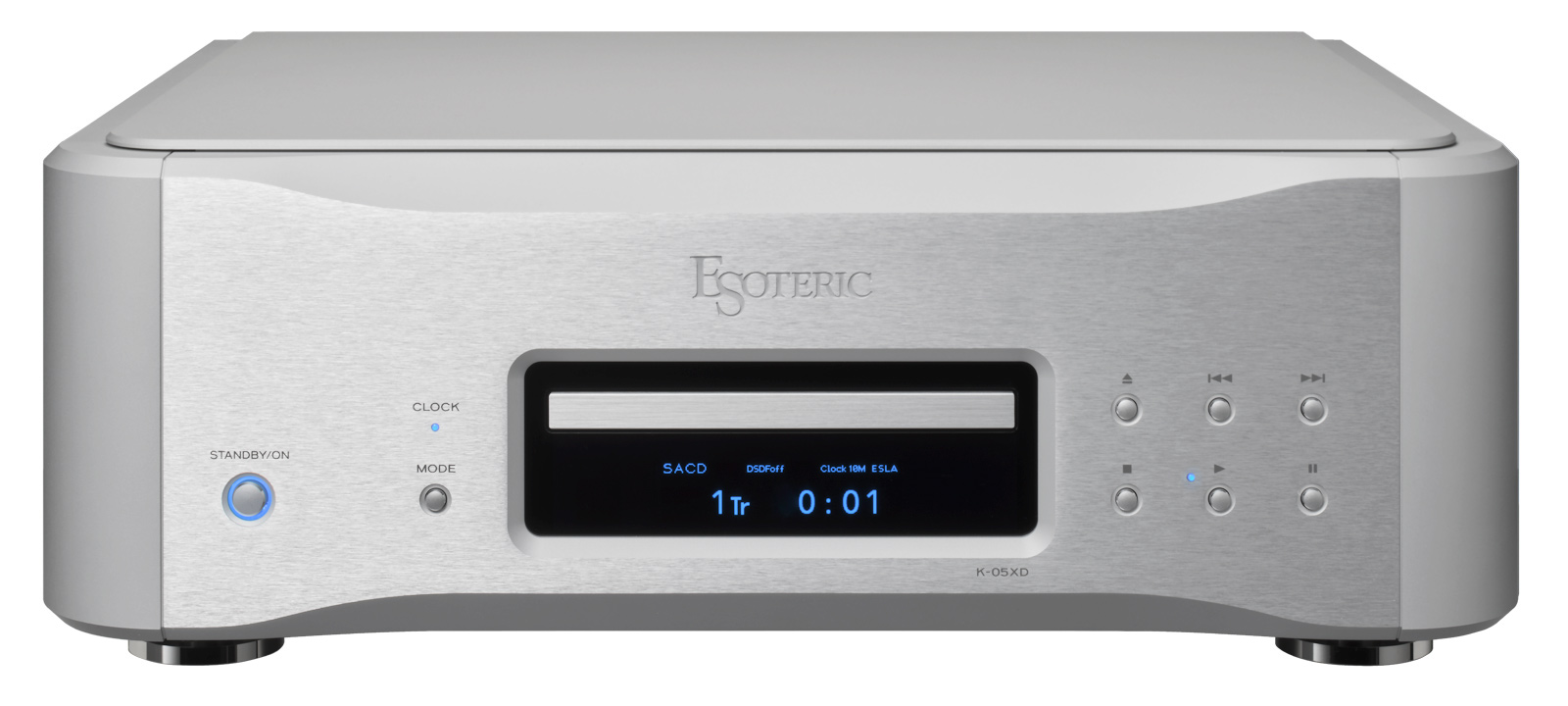

K-05XD
SACD/CD player with XLR and RCA analog outputs, XLR and coaxial digital outputs, USB/coaxial/optical inputs, and 10 MHz clock input.
fig. 01 · cd & sacd players
K-05XD
From Esoteric
The K-05XD is a Reference-series SACD/CD player with balanced XLR and RCA analog outputs, XLR and coaxial digital outputs, and USB, coaxial, and optical digital inputs. Its saved specifications list 10 MHz clock input, 5 Hz to 70 kHz frequency response, 110 dB S/N ratio, and a 20.7 kg chassis.
Specifications
| Analog Audio Outputs: XLR/ES-Link Analog | × 1 pair |
|---|---|
| Analog Audio Outputs: RCA | × 1 pair |
| Digital Audio Outputs: XLR | × 1 |
| Digital Audio Outputs: Coaxial | × 1 |
| Digital Audio Inputs: USB | × 1 |
| Digital Audio Inputs: Coaxial | × 1 |
| Digital Audio Inputs: Optical | × 1 |
| 10MHz Clock Input: BNC | × 1 |
| External Control Section: RS-232C | × 1 |
| External Control Section: Trigger In | ⅛” (3.5mm) Monaural mini jack × 1 |
| General: Overall Dimensions (W×H×D) | 445 × 161 × 357mm (including protrusions) |
| General: Weight | 20.7kg |
| Included accessories | Power cord × 1 Remote control (RC-1333) × 1 AA batteries × 2 Felt pads × 3 Owner’s manual × 1 Warranty card × 1 |
| Included accessories: Frequency Response | 5Hz to 70kHz (–3dB, SACD 0dB, DSDF: F2, XLR Output) |
| Included accessories: S/N Ratio | 110dB (IHF-A, SACD 0dB, DSDF: F2, XLR Output) |
| Included accessories: Total Harmonic Distortion | 0.0007% (1kHz, SACD 0dB, DSDF: F2, XLR Output) |
| Product type | sacd/cd player |
| Series | Reference |
