Focal · Speakers · In-wall & In-ceiling Speakers
100 IC6ST
This in-ceiling speaker pairs a 6.5-inch Polyglass woofer with dual tweeters for stereo sound from one unit.
fig. 01 · speakers
100 IC6ST
7 photographs · 5 shown
From Focal

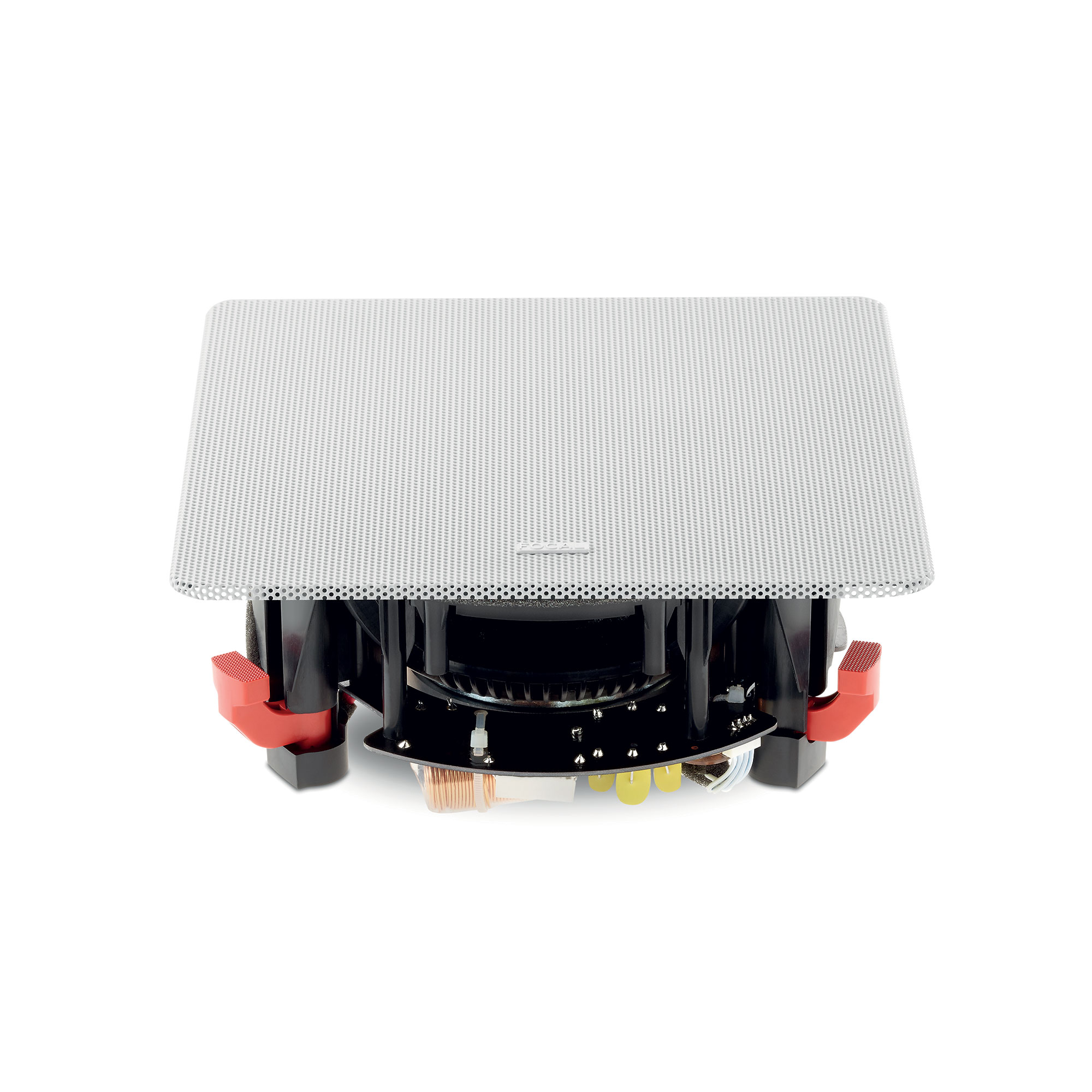

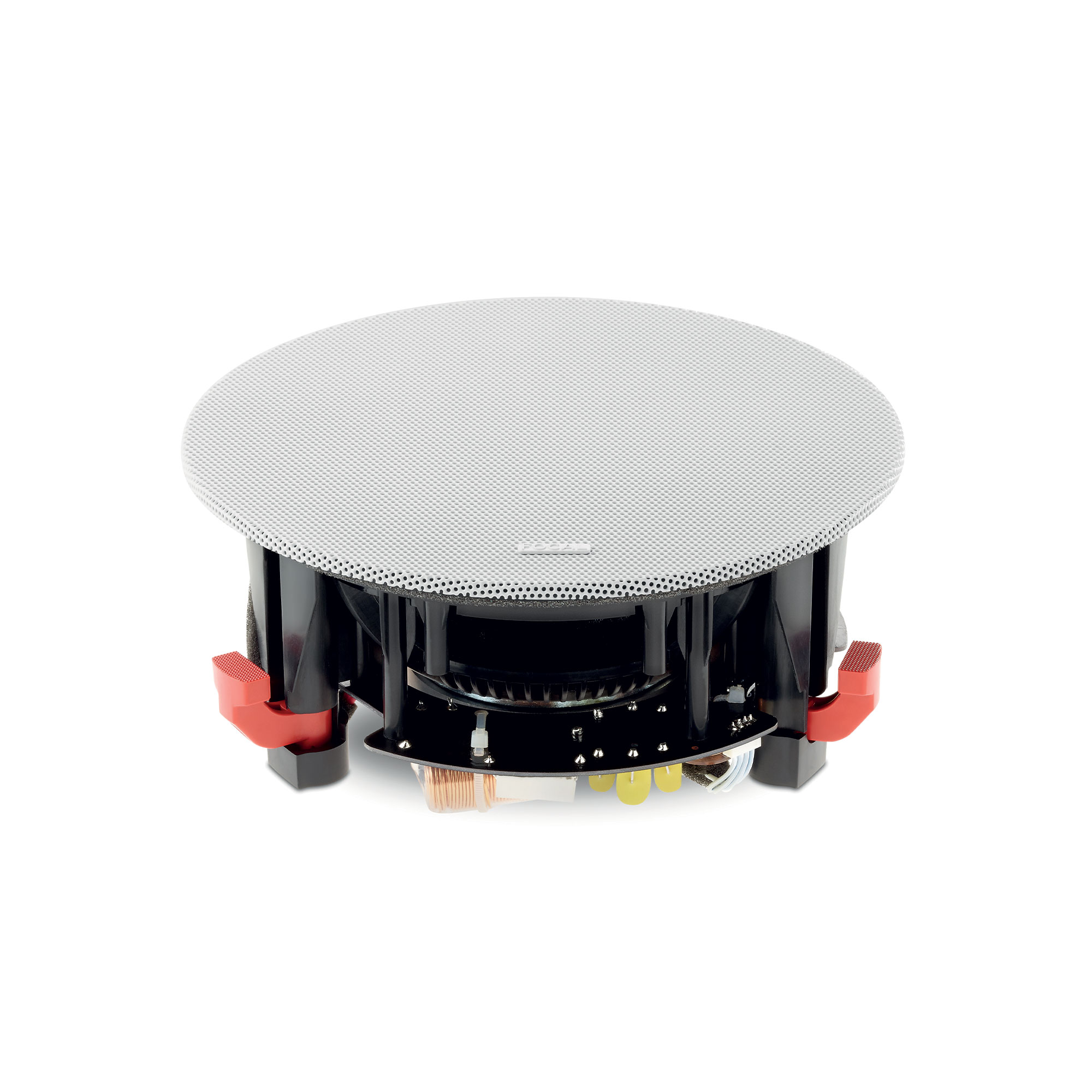

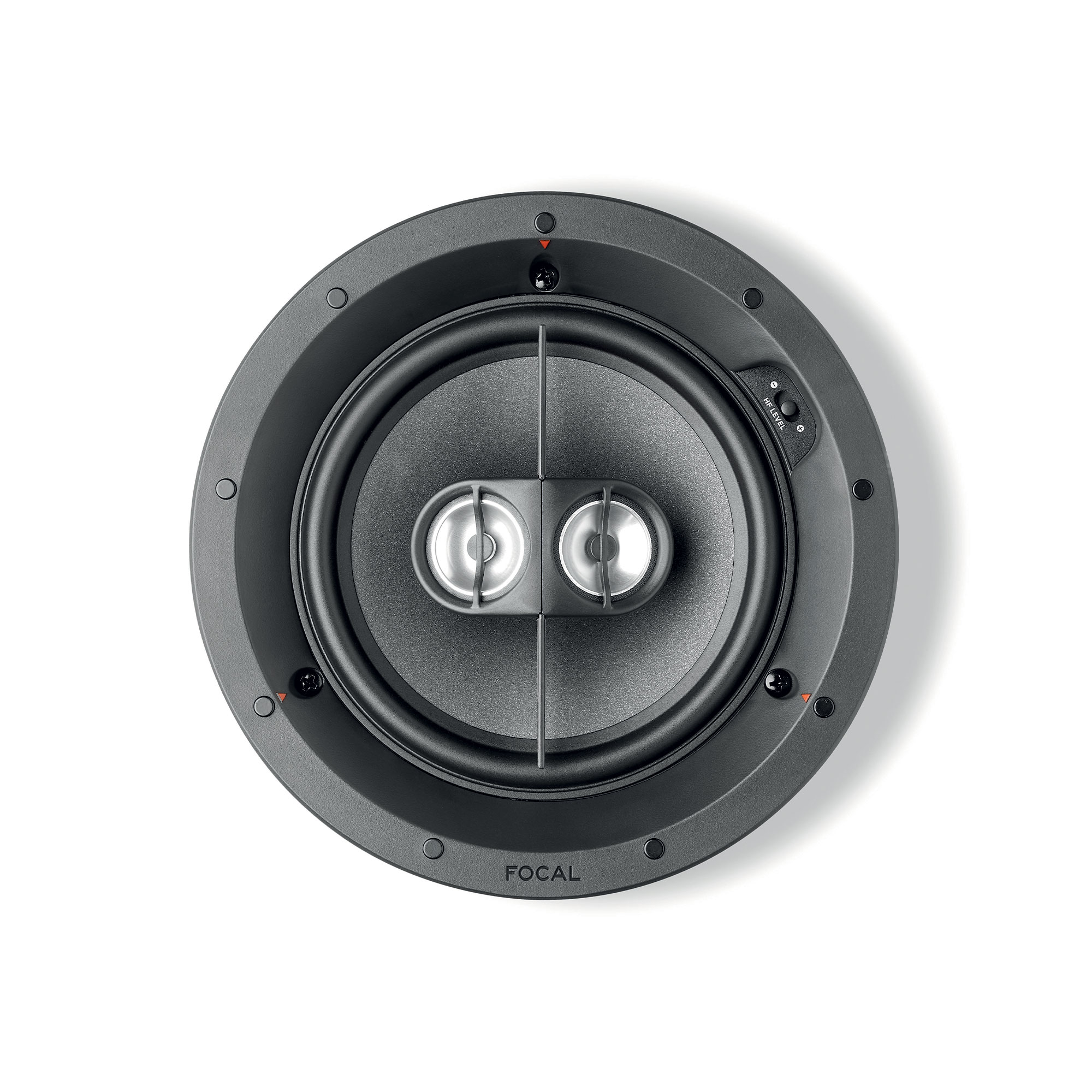

The 100 IC6ST is a compact in-ceiling speaker for bedrooms, kitchens, hallways, and humid rooms like bathrooms. A 6.5-inch dual voice coil Polyglass midbass and two 1-inch tweeters deliver stereo sound from one unit, finished with a moisture-resistant tropicalization treatment and a ready-to-paint grille.
Specifications
| Type | In-celling - Stereo 2-way coaxial |
|---|---|
| Drivers | 61/2" (16.5cm) Dual voice coil Polyglass Midbass | 2 x 1" (25mm) AI inverted dome Tweeters |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 60Hz-23kHz |
| Low frequency point (-6dB) | 48Hz |
| Nominal impedance | 2 x 8Ω |
| Minimal impedance | 2 x 6.7Ω |
| Recommended amplifier power | 25-100W |
| External dimensions (Ø/Depth) | 83/16"x33/4" (208x95mm) |
| Cut-Out diameter | 71/4" (184mm) |
| Depth from wall | 39/16" (91mm) |
| Net weight (with front grille) | 3.86lbs (1.75kg) |
| Packing dimensions (WxDxH) | 105/8"x105/8"x611/16" (270x270x170mm) |
| Total weight (with packaging) | 5.29lbs (2.40kg) |
