100 IC8-T UL
An 8-inch in-ceiling speaker with a switchable 100V/70V transformer for commercial sound coverage.
fig. 01 · speakers

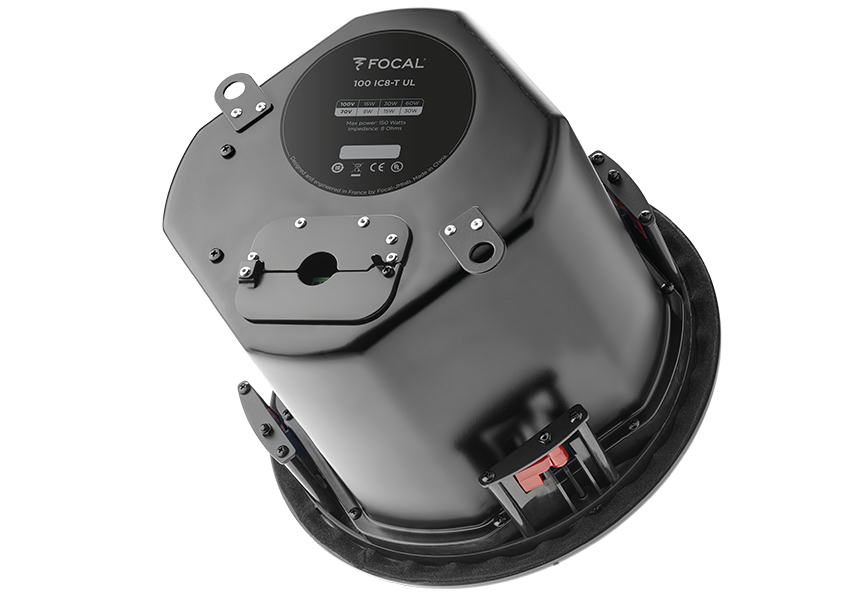

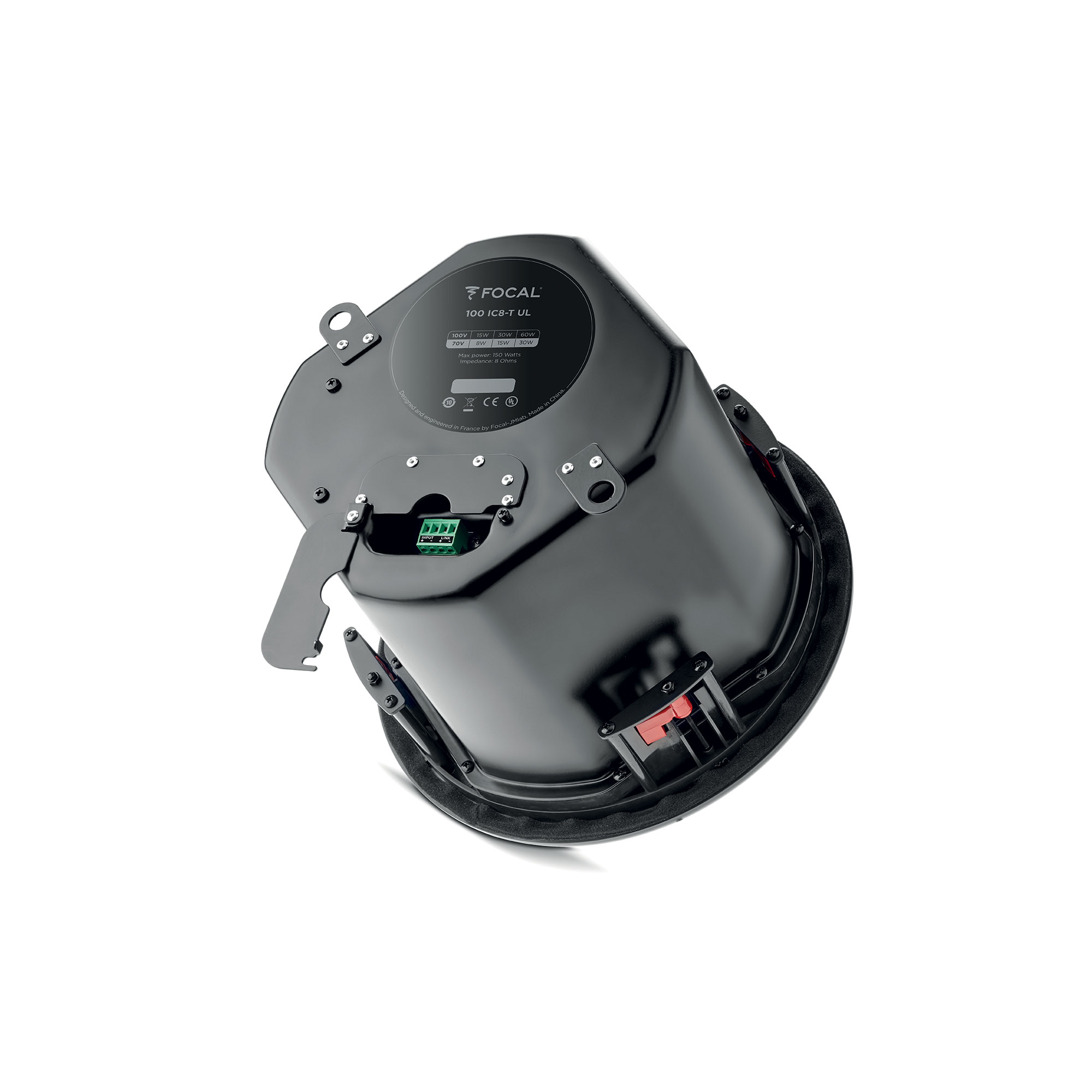

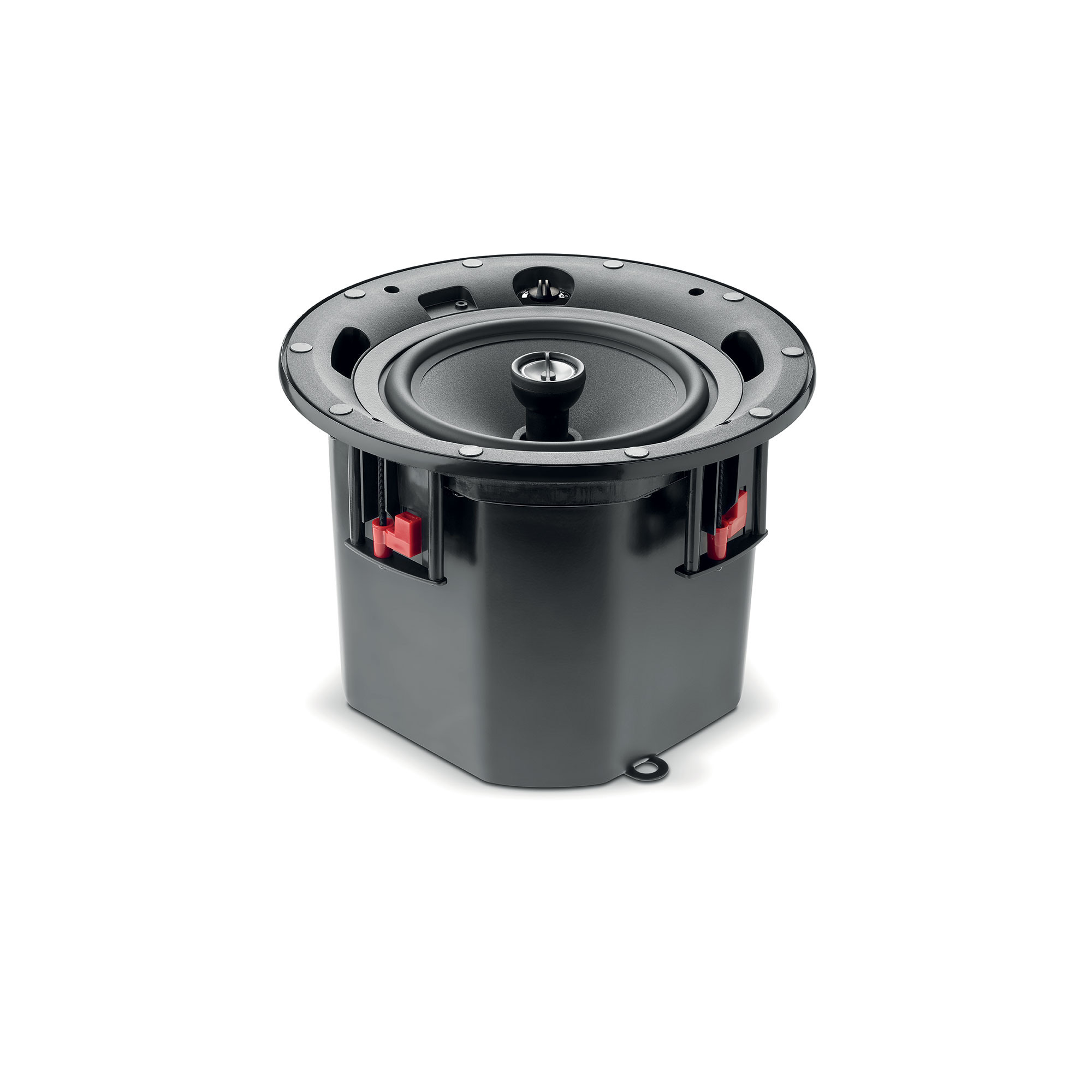

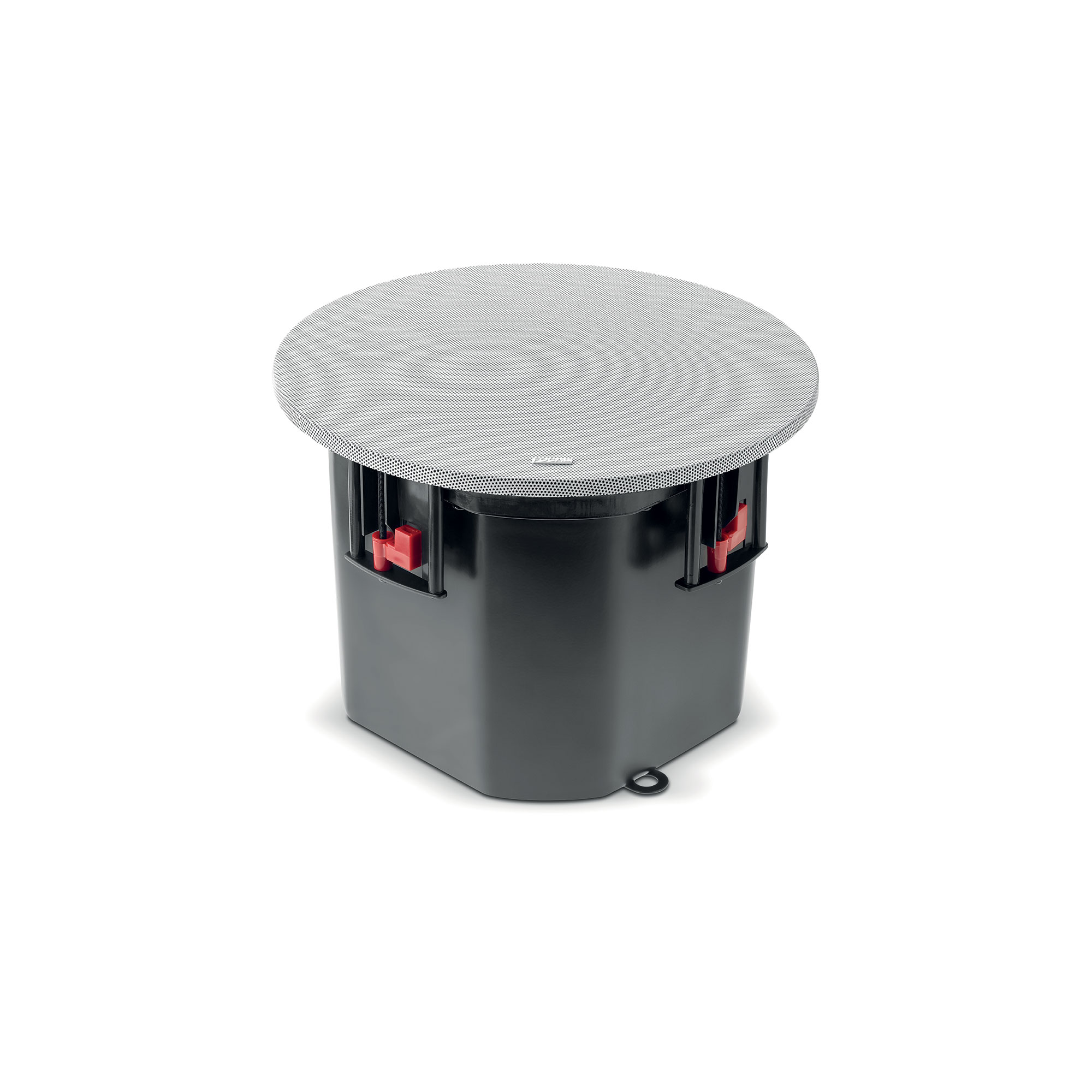

100 IC8-T UL
6 photographs · 5 shown
From Focal
The 100 IC8-T UL is an in-ceiling speaker built for large spaces like shops, hotels, and restaurants. An 8-inch Polyglass midbass and 1-inch tweeter pair with a switchable 100V/70V or 8-ohm transformer for wide, even coverage. UL 1480 and UL 2043 certification rates it for fire-protective signaling systems.
Specifications
| Type | In-ceiling - 2-way coaxial bass-reflex | 100V/70V or 8Ω installations - Steel back can |
|---|---|
| Drivers | 8" (21cm) Polyglass Midbass | 1" (2.5cm) Al inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 91dB |
| Frequency response (±3dB) | 53Hz-23kHz |
| Low frequency point (-6dB) | 48Hz |
| 70V line power | 8/15/30W |
| 100V line power | 15/30/60W |
| 8Ω Recommended amplifier power | 15-150W |
| External dimensions (Ø x Depth) | 113/4" x 87/8" (29.7 x 22.5cm) |
| Cut-out diameter | 103/8" (26.5cm) |
| Depth from wall | 83/8" (21.2cm) |
| Ceiling thickness | 0-13/8" (0-3.6cm) |
| Net weight (with grille) | 10.5lbs (4.75kg) |
| Packing dimensions | 145/8"x 145/8"x 113/8" (37 x 37 x 29cm) |
| Total weight (with packaging) | 13.5lbs (6.15kg) |
