100 ICLCR5
This in-ceiling speaker pairs dual 5-inch woofers with a passive radiator for full sound in rooms without a rear wall.
fig. 01 · speakers
100 ICLCR5
8 photographs · 5 shown
From Focal

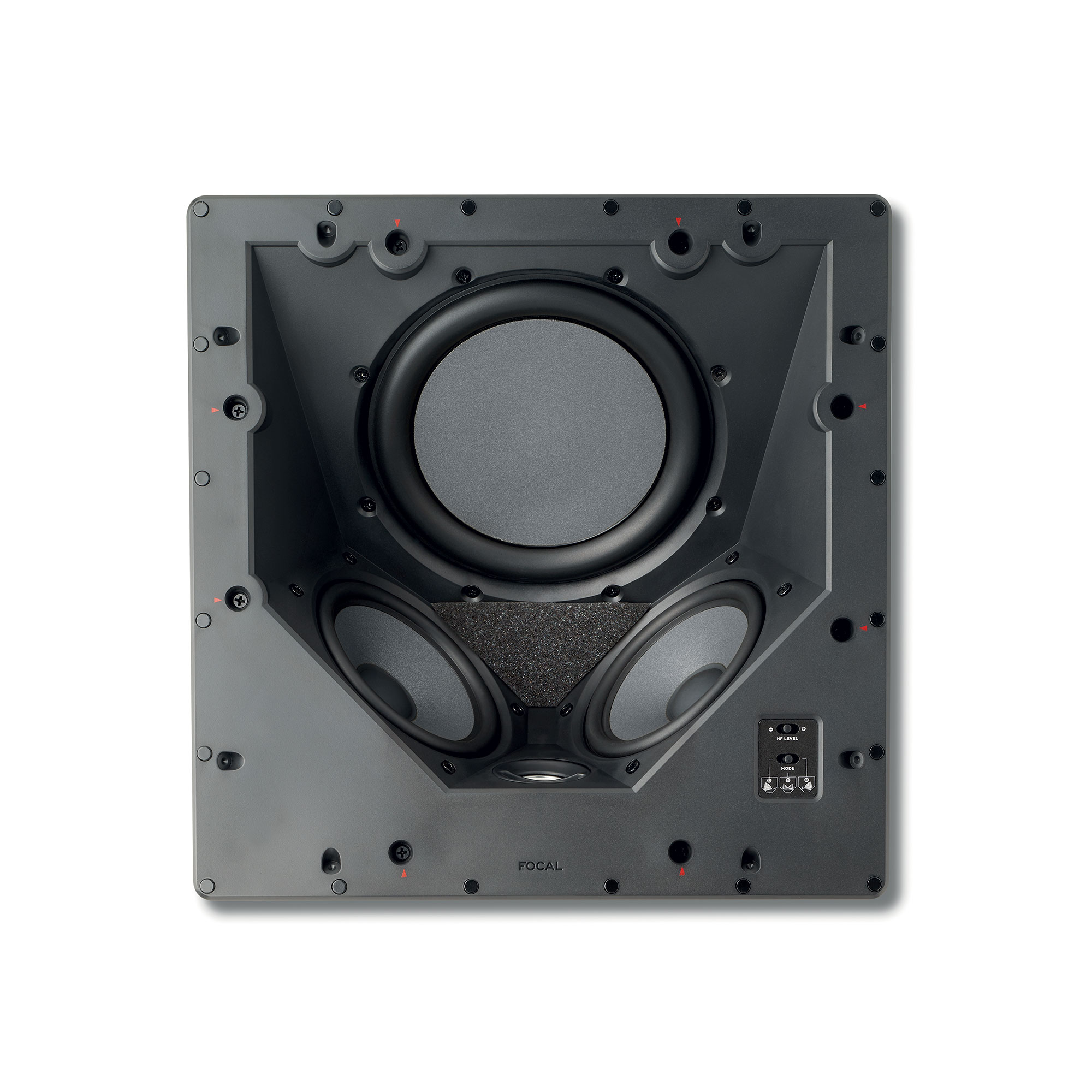

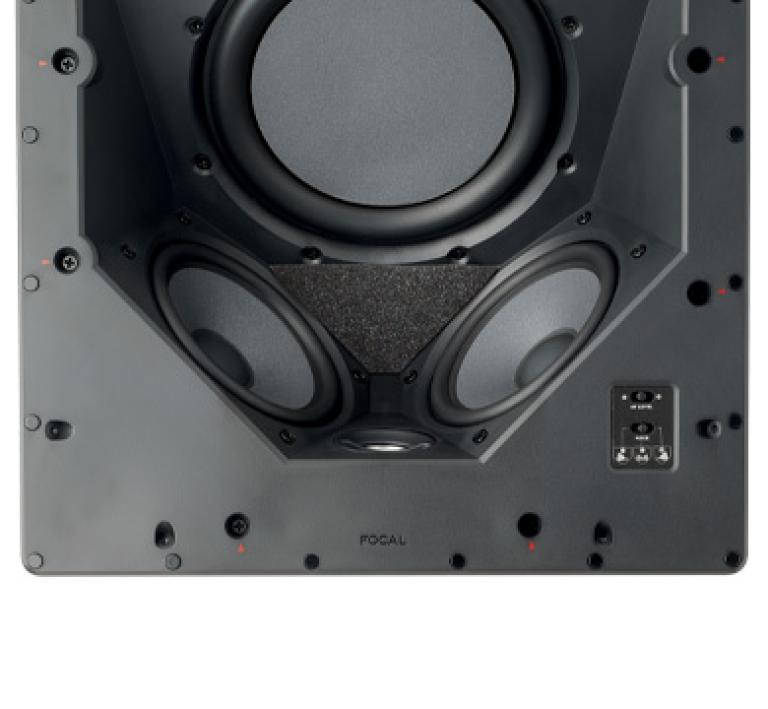

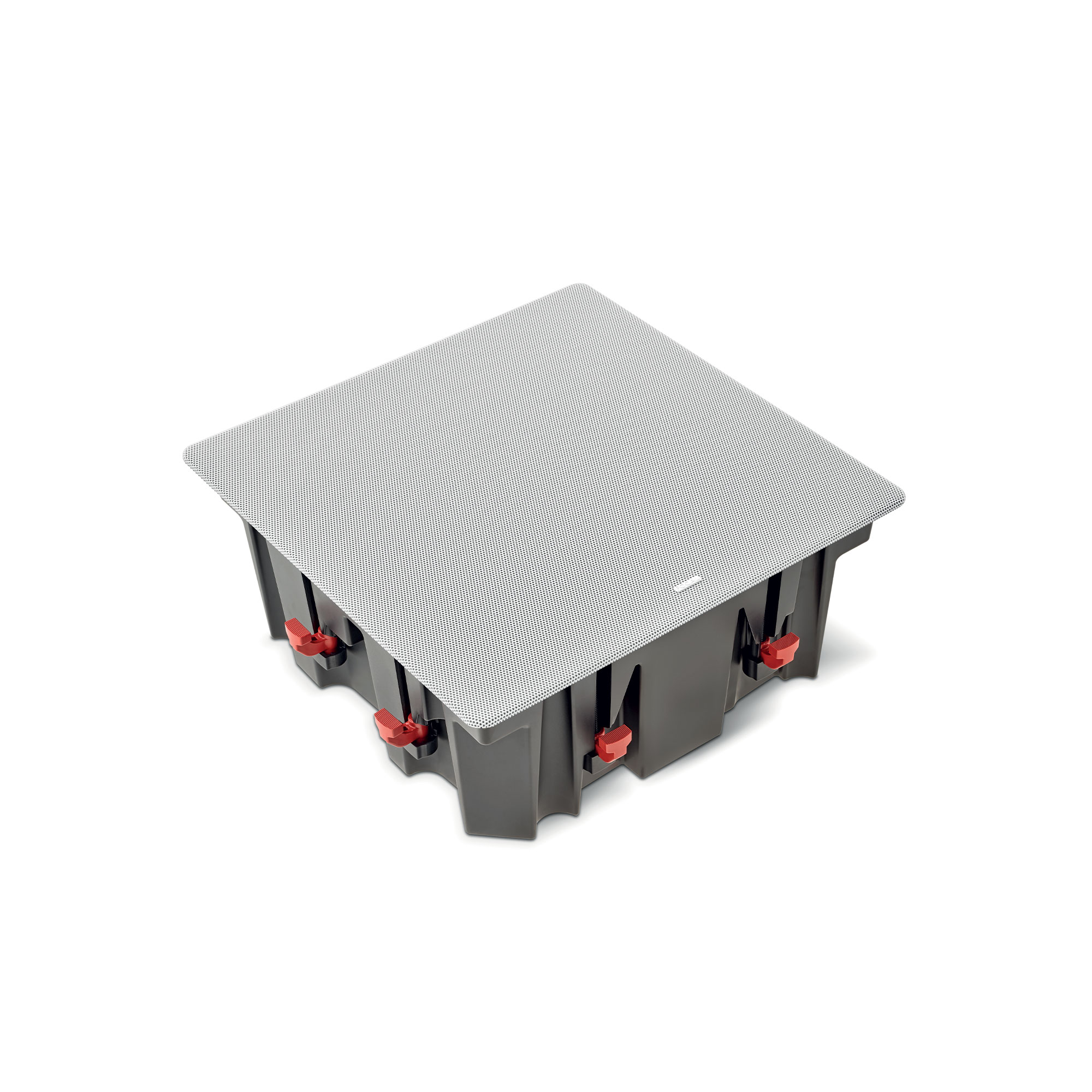

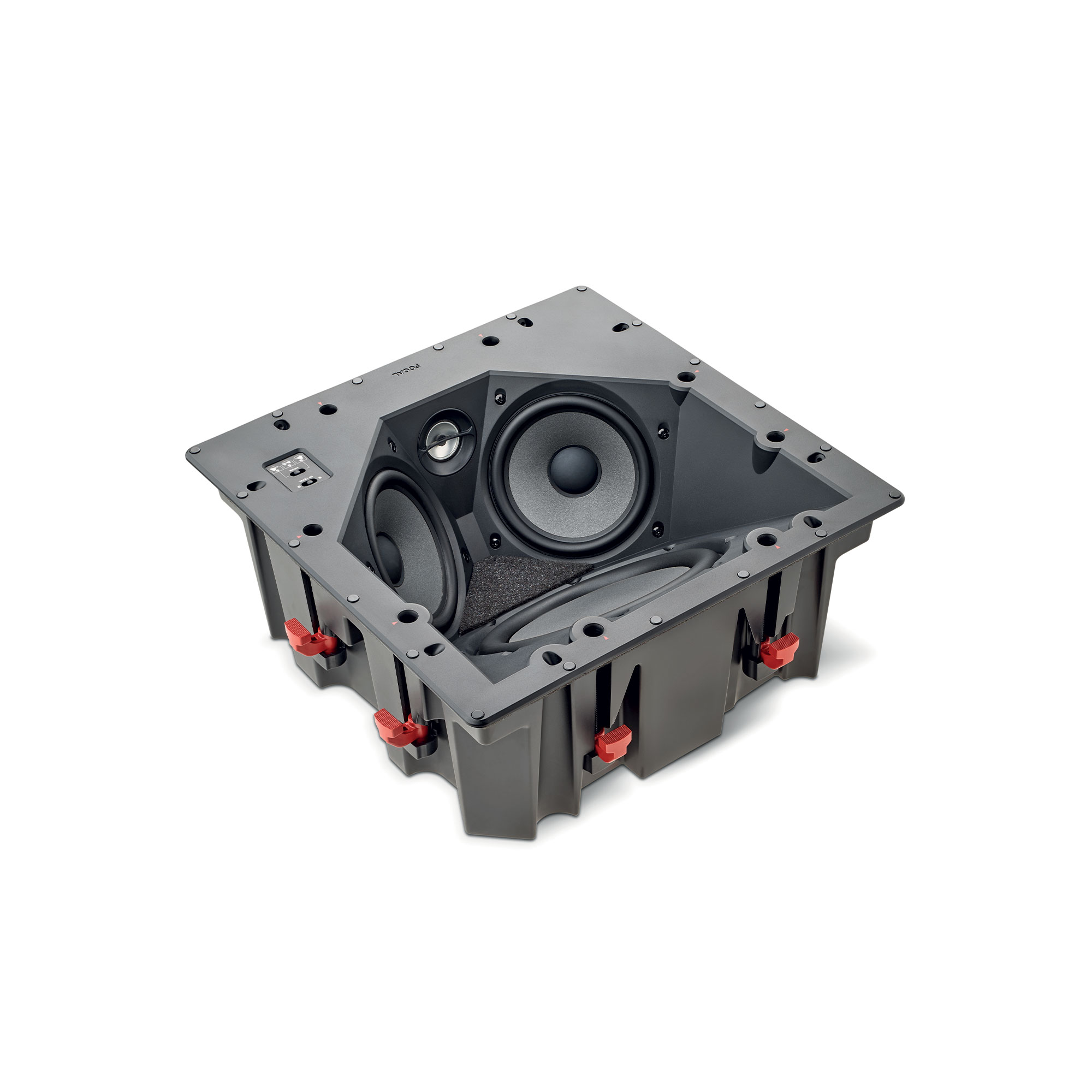

The 100 ICLCR5 is a compact in-ceiling speaker for home theater rooms without a rear wall. Two 5-inch Polyglass woofers, a 1-inch inverted dome tweeter, and an 8-inch Polyglass passive radiator combine for full-range sound at 92dB sensitivity, pairing well with wall-mounted or conventional speakers.
Specifications
| Type | 2-way in-ceiling |
|---|---|
| Drivers | 2 x 5" (13cm) Polyglass woofers, 1" (25mm) inverted | dome tweeter, 8" (21cm) Polyglass passive radiator |
| Sensitivity (2.83V/1m) | 92dB |
| Frequency response (+/-3dB) | 65Hz - 23kHz |
| Low frequency point (-6dB) | 55Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 4.6 Ω |
| Recommended amplifier power | 25 - 120W |
| External dimensions (HxWxD) | 1315/16"x1315/16"x55/16" (354x354x150mm) |
| Cut-Out diameter (HxW) | 1215/16"x1215/16" (328x328mm) |
| Depth from wall | 6" (152mm) |
| Net weight (with front grille) | 11.6lbs (5.3kg) |
| Packing dimensions (WxDxH) | 161/16"x 161/16"x71/2" (408x408x190mm) |
| Total weight (with packaging) | 15.8 lbs (7.2kg) |
