100 ICS6-T UL
A slim 6.5-inch in-ceiling speaker with a switchable 100V/70V transformer for commercial spaces.
fig. 01 · speakers

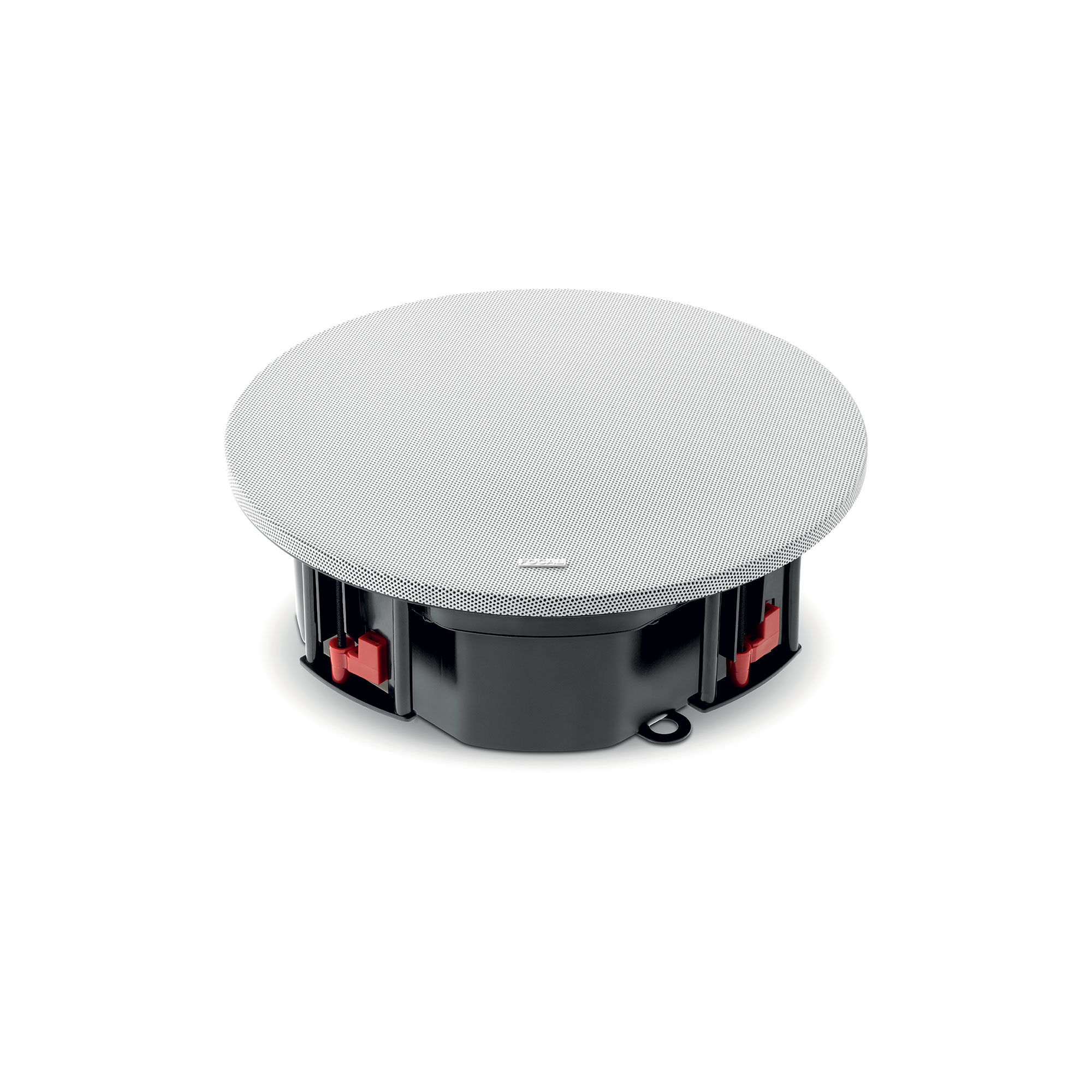

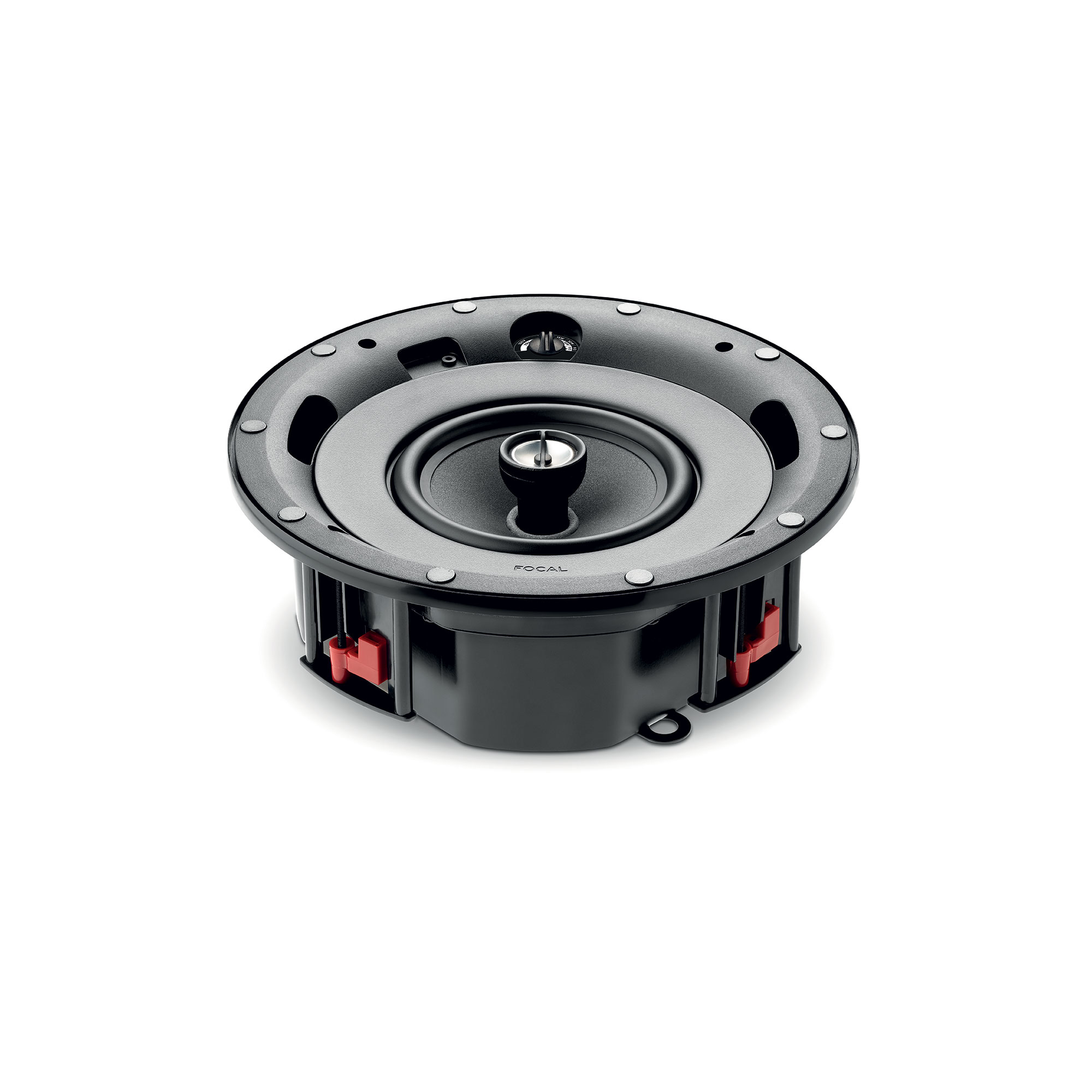

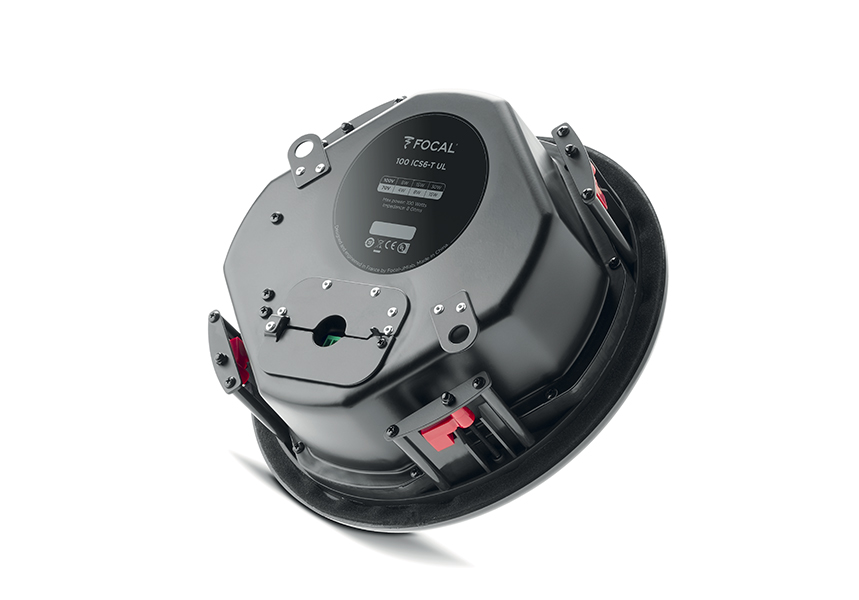

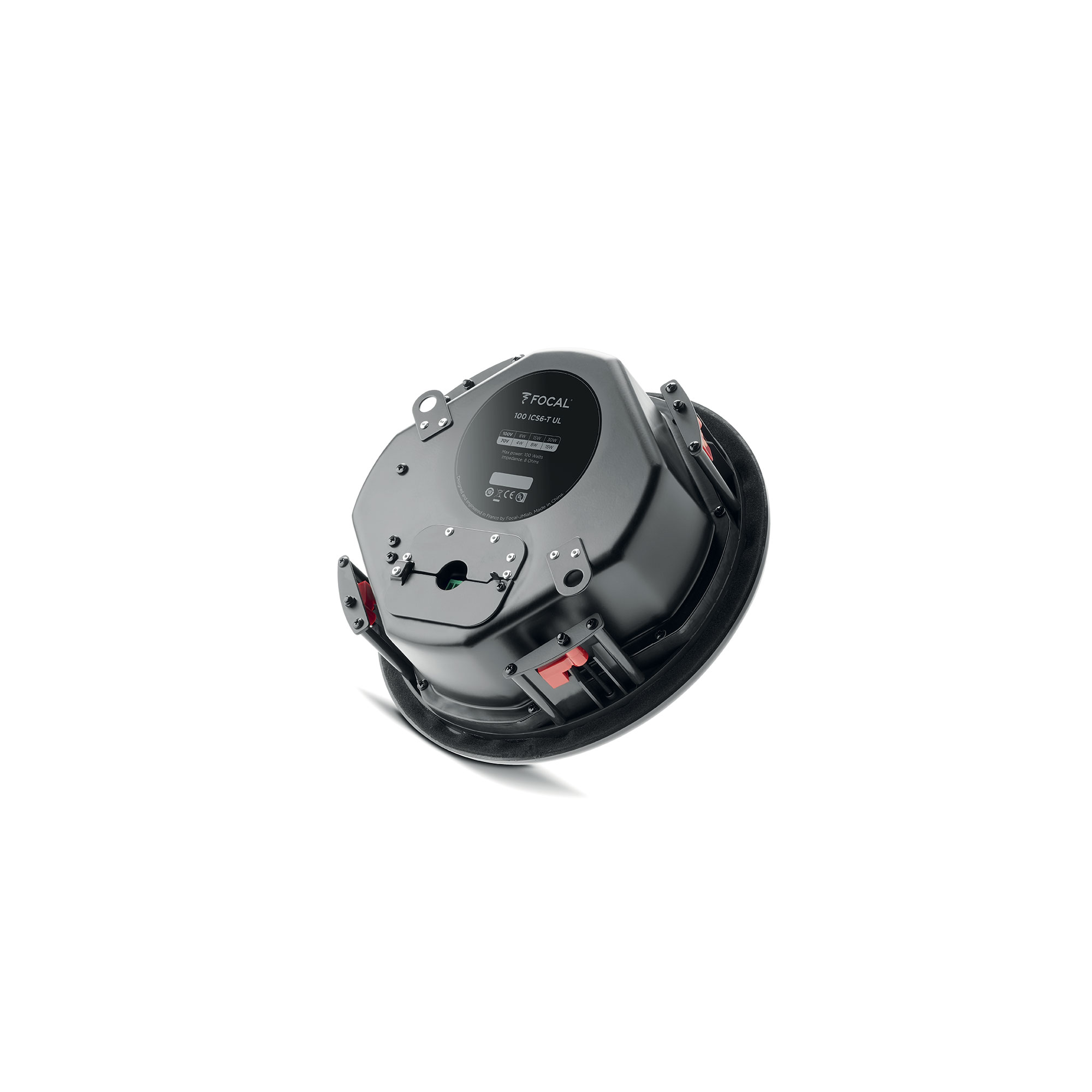

100 ICS6-T UL
6 photographs · 5 shown
From Focal
The 100 ICS6-T UL is a slim in-ceiling speaker built for shops, hotels, and restaurants. A 6.5-inch Polyglass midbass and 1-inch tweeter pair with a switchable 100V/70V or 8-ohm transformer, and a shallow 4-inch depth from wall eases installation. UL 1480 and UL 2043 certification rates it for fire safety.
Specifications
| Type | In-ceiling - 2-way coaxial bass-reflex | 100V/70V or 8 Ω installations - Steel back can |
|---|---|
| Drivers | 61/2" (16.5cm) Polyglass Midbass | 1" (2.5cm) Al inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (±3dB) | 70Hz-23kHz |
| Low frequency point (-6dB) | 60Hz |
| 70V line power | 4/8/15W |
| 100V line power | 8/15/30W |
| 8Ω Recommended amplifier power | 15-100W |
| External dimensions (Ø x Depth) | 113/4" x 51/16"(29.7 x 12.9cm) |
| Cut-out diameter | 103/8"(26.5cm) |
| Depth from wall | 4" (10.3cm) |
| Ceiling thickness | 0-13/8" (0-3.6cm) |
| Net weight (with grille) | 8.26lbs (3.75kg) |
| Packing dimensions | 145/8" x 145/8" x 63/4" (37.5 x 37.5 x 17.2cm) |
| Total weight (with packaging) | 10.8lbs (4.9kg) |
