Focal · Speakers · In-wall & In-ceiling Speakers
100 ICW5

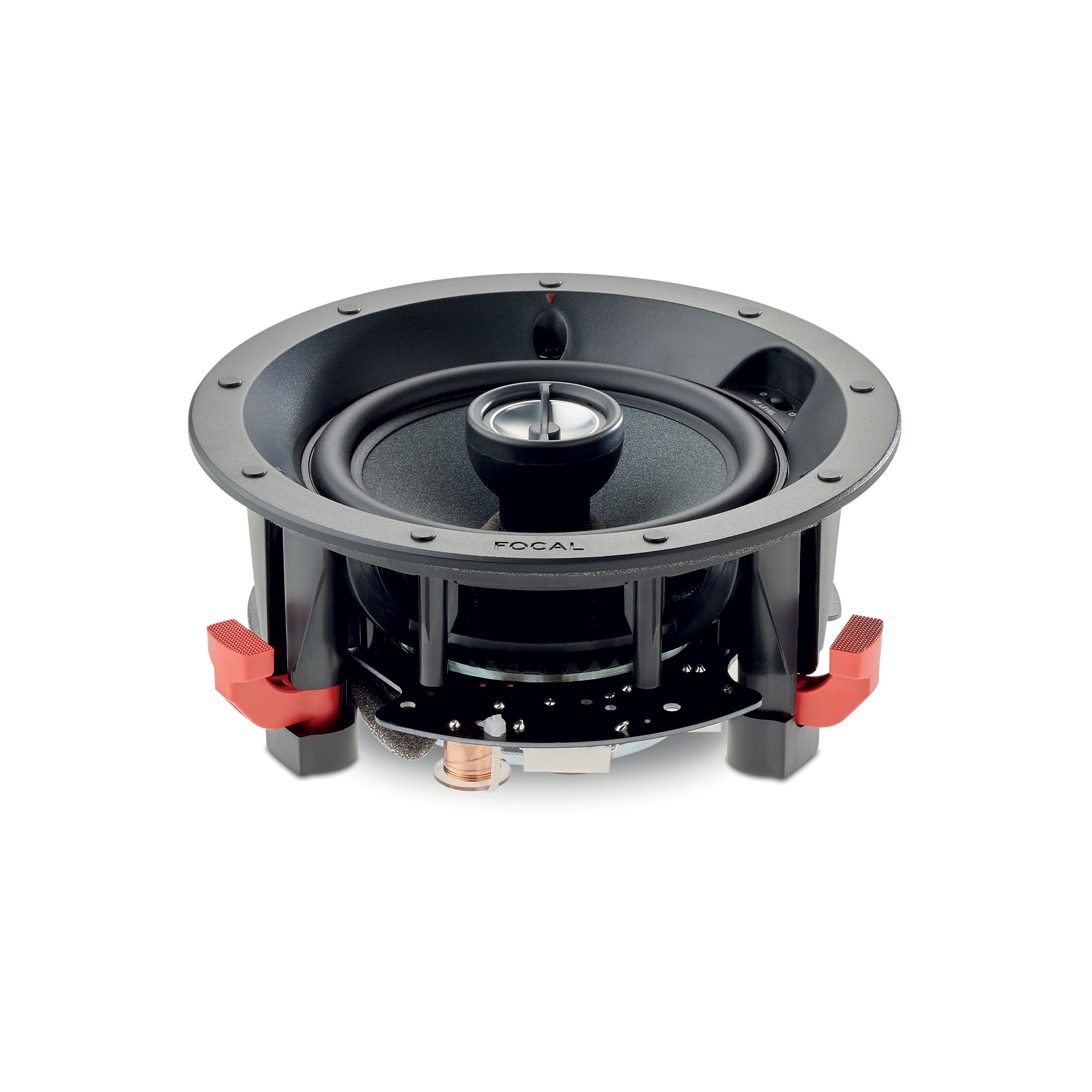

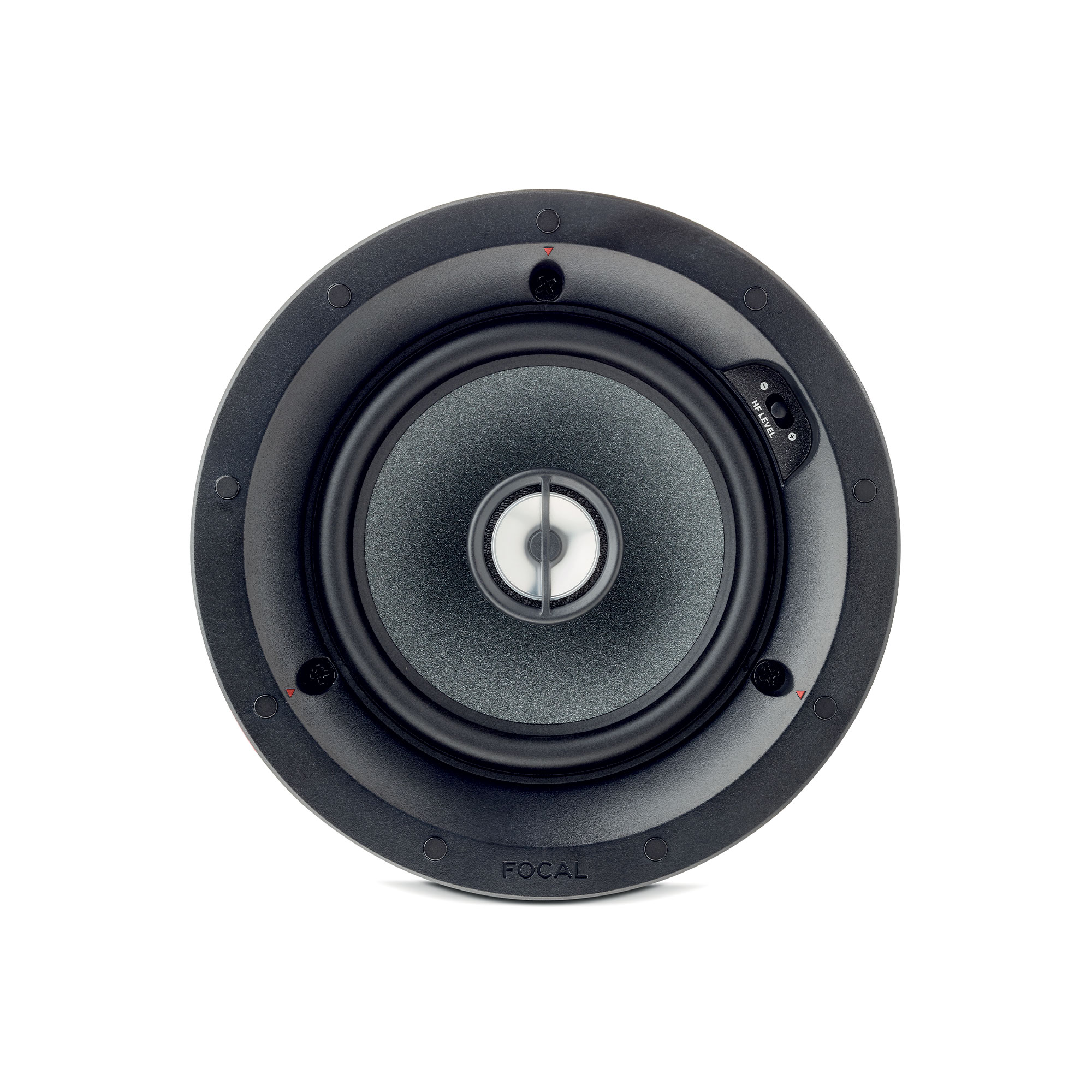

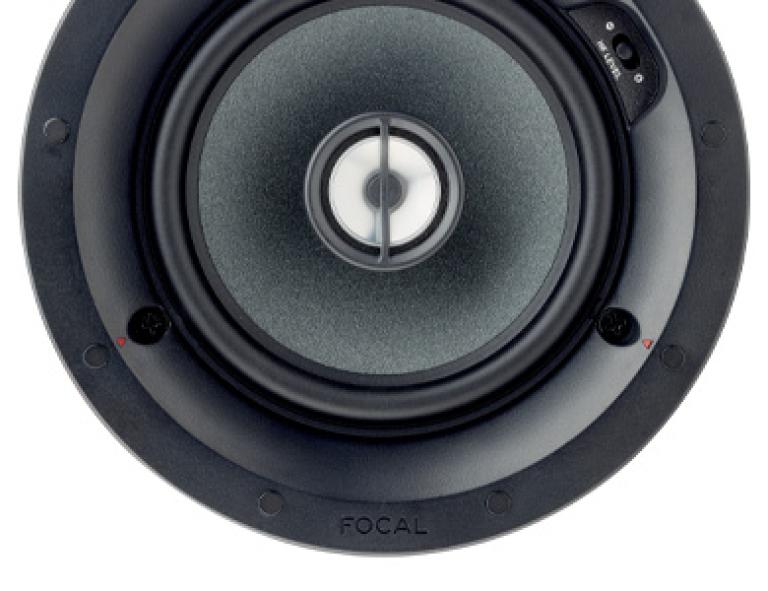

The 100 ICW5 is a 2-way coaxial in-wall or in-ceiling speaker with a 5-inch Polyglass driver.
fig. 01 · speakers
100 ICW5
8 photographs · 5 shown
From Focal

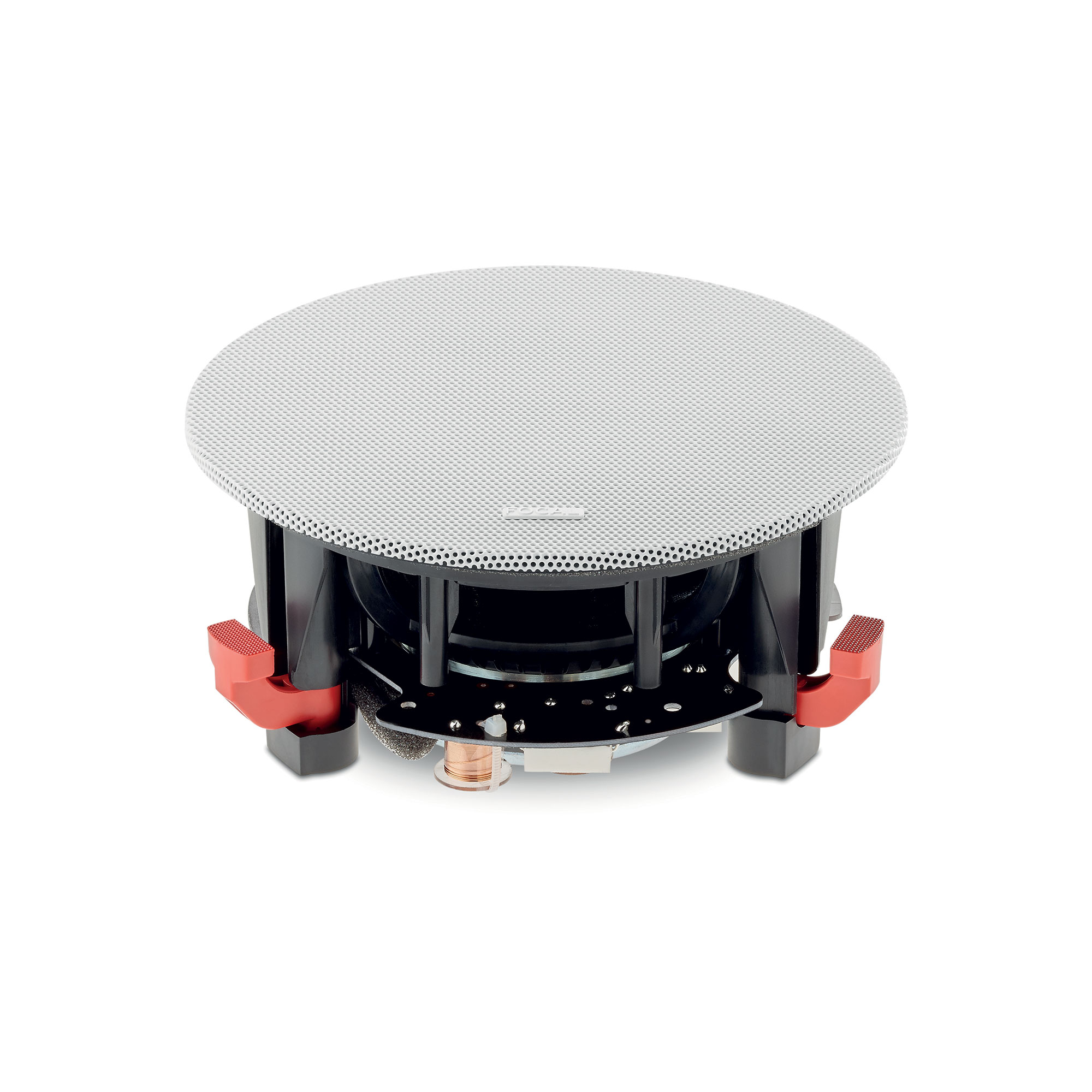

This coaxial speaker mounts flush in walls or ceilings for residential rooms. Its 5-inch Polyglass driver spans 65Hz to 23kHz at 88dB sensitivity. Mounting depth stays shallow for easy installation, and the grille is ready to paint.
Specifications
| Type | In-wall/In-celling - 2-way coaxial |
|---|---|
| Drivers | 5" (13cm) Polyglass Midbass. |
| Sensitivity (2.83V/1m) | 88dB |
| Frequency response (+/-3dB) | 65Hz-23kHz |
| Low frequency point (-6dB) | 56Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 7.3Ω |
| Recommended amplifier power | 15-100W |
| External dimensions (Ø/Depth) | 71/4"x327/64" (184x87mm) |
| Cut-Out diameter | 619/64" (160mm) |
| Depth from wall | 315/64" (82mm) |
| Net weight (with front grille) | 3.19lbs (1.45kg) |
| Packing dimensions (WxDxH) | 95/8" | x95/8" | x65/16" (245x245x161mm) |
| Total weight (with packaging) | 4.52lbs (2.05kg) |
