Focal · Speakers · In-wall & In-ceiling Speakers

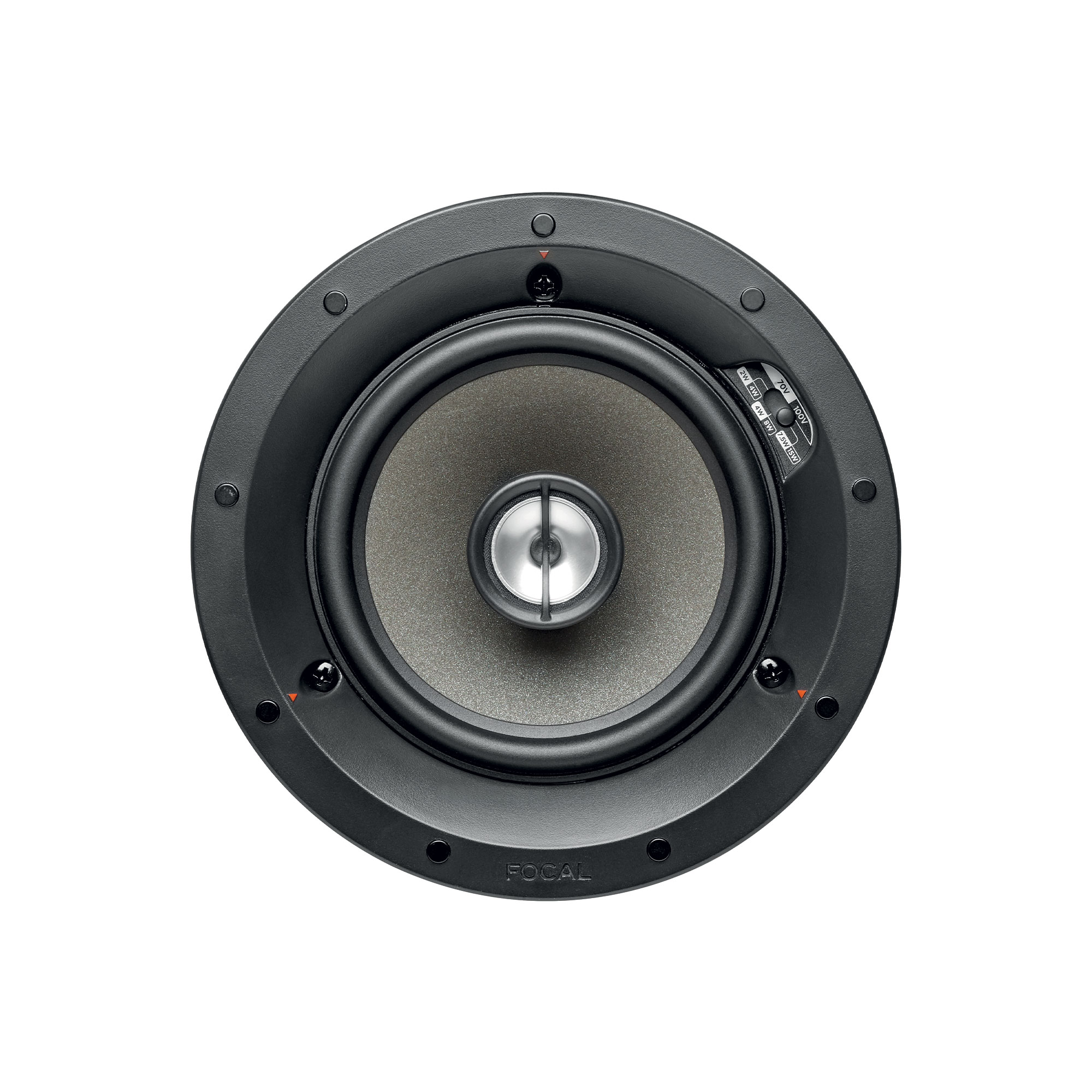

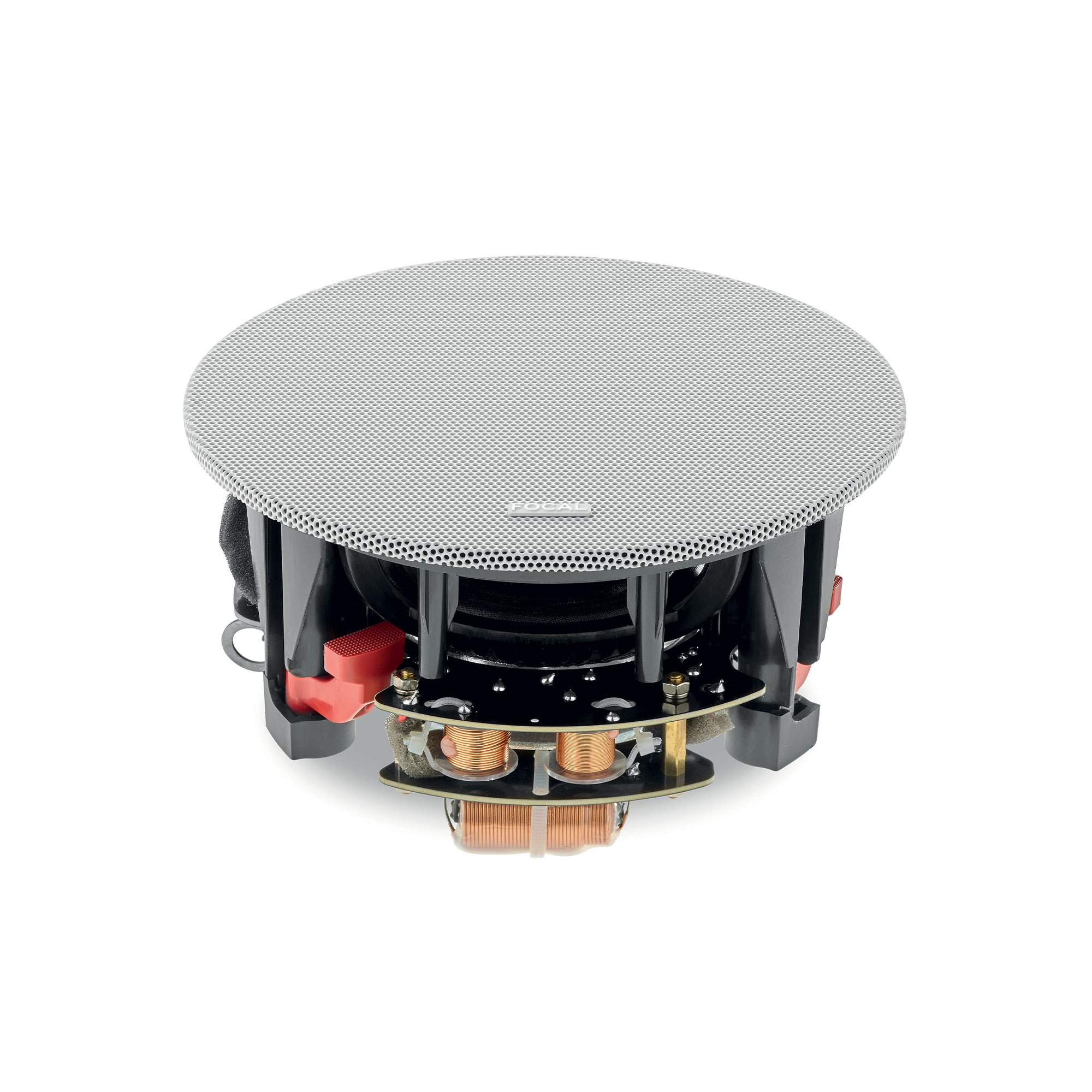

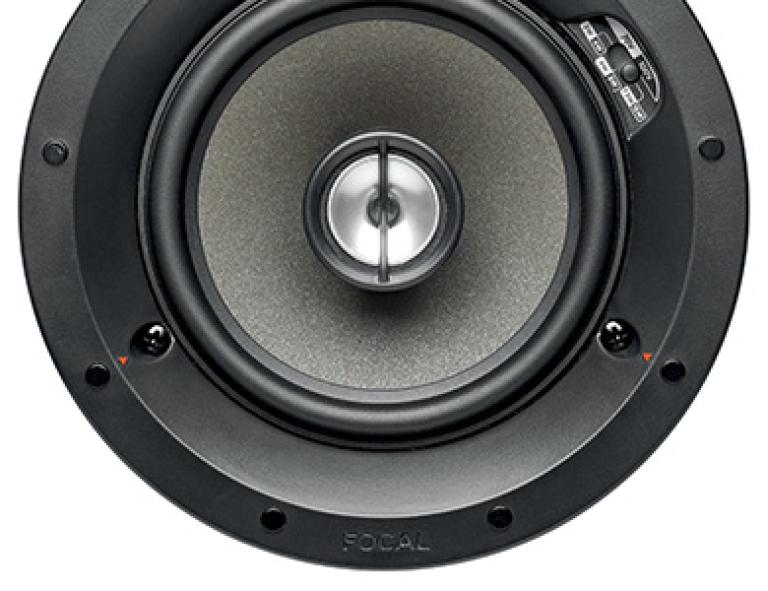

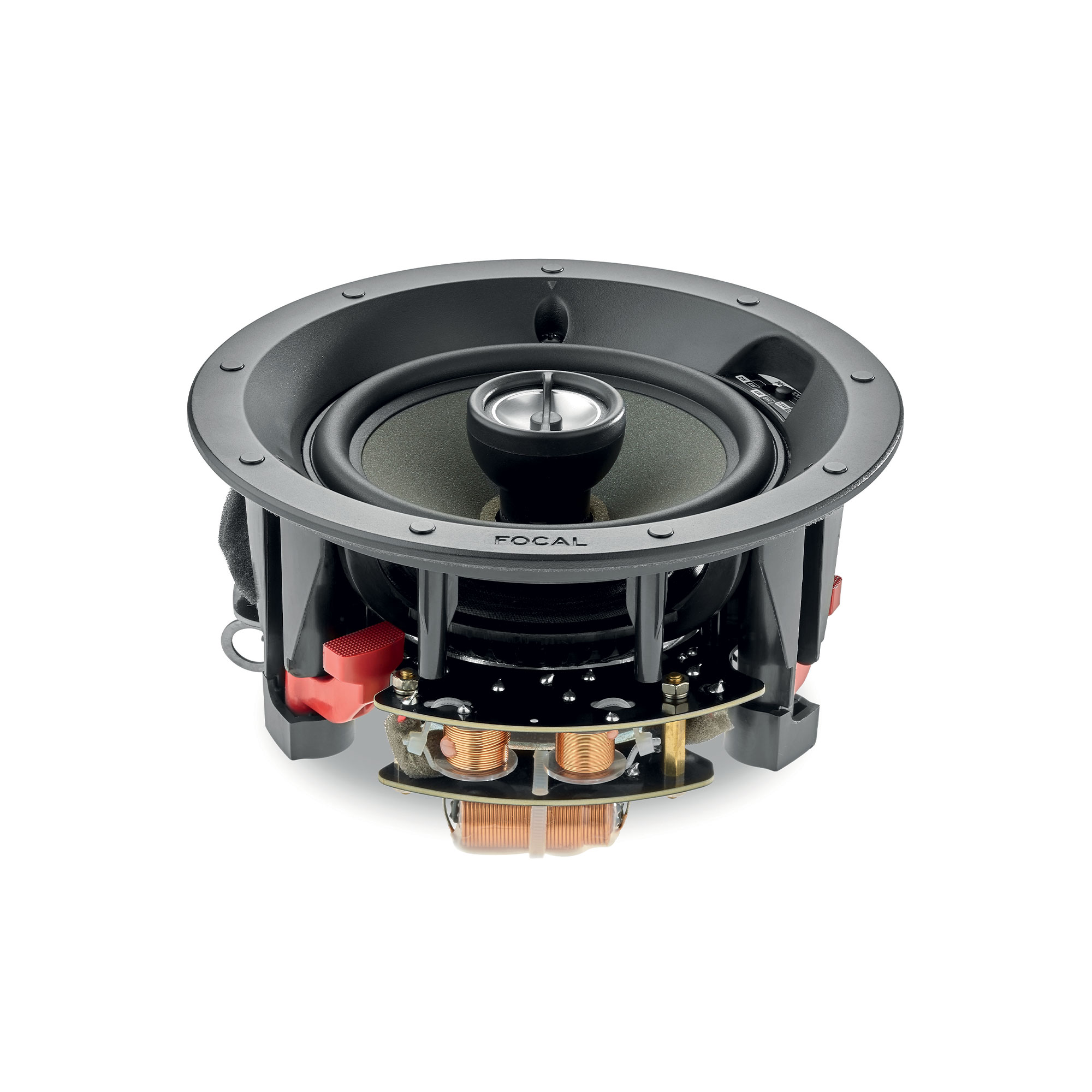

100 ICW5-T
The 100 ICW5-T is a 2-way coaxial in-wall or in-ceiling speaker built for 100V/70V line installations.
fig. 01 · speakers
100 ICW5-T
7 photographs · 5 shown
From Focal
This wall or ceiling speaker pairs a 5-inch Polyglass driver with a 1-inch aluminum inverted dome tweeter for hi-fi sound in commercial spaces. A built-in adjustable transformer switches between 100V and 70V lines for clear coverage over wide areas. Mounting stays shallow with a ready-to-paint grille.
Specifications
| Type | In-wall/In-celling - 2-way coaxial for 100V/70V line installation |
|---|---|
| Drivers | 5" (13cm) Polyglass Midbass | 1" (25mm) Aluminium inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 88dB |
| Frequency response (+/-3dB) | 65Hz - 23kHz |
| Low frequency point (-6dB) | 56Hz |
| Power in 70V | 2/4/7.5W |
| Power in 100V | 4/8/15W |
| External dimensions (Ø/Depth) | 71/4x4" (184x100mm) |
| Cut-Out diameter | 63/16" (157mm) |
| Depth from wall | 33/4" (96mm) |
| Net weight (with front grille) | 3.52lbs (1.6kg) |
| Packing dimensions (WxDxH) | 95/8x95/8x615/16" (245x245x161mm) |
| Total weight (with packaging) | 5.29lbs (2.4kg) |
