100 ICW6

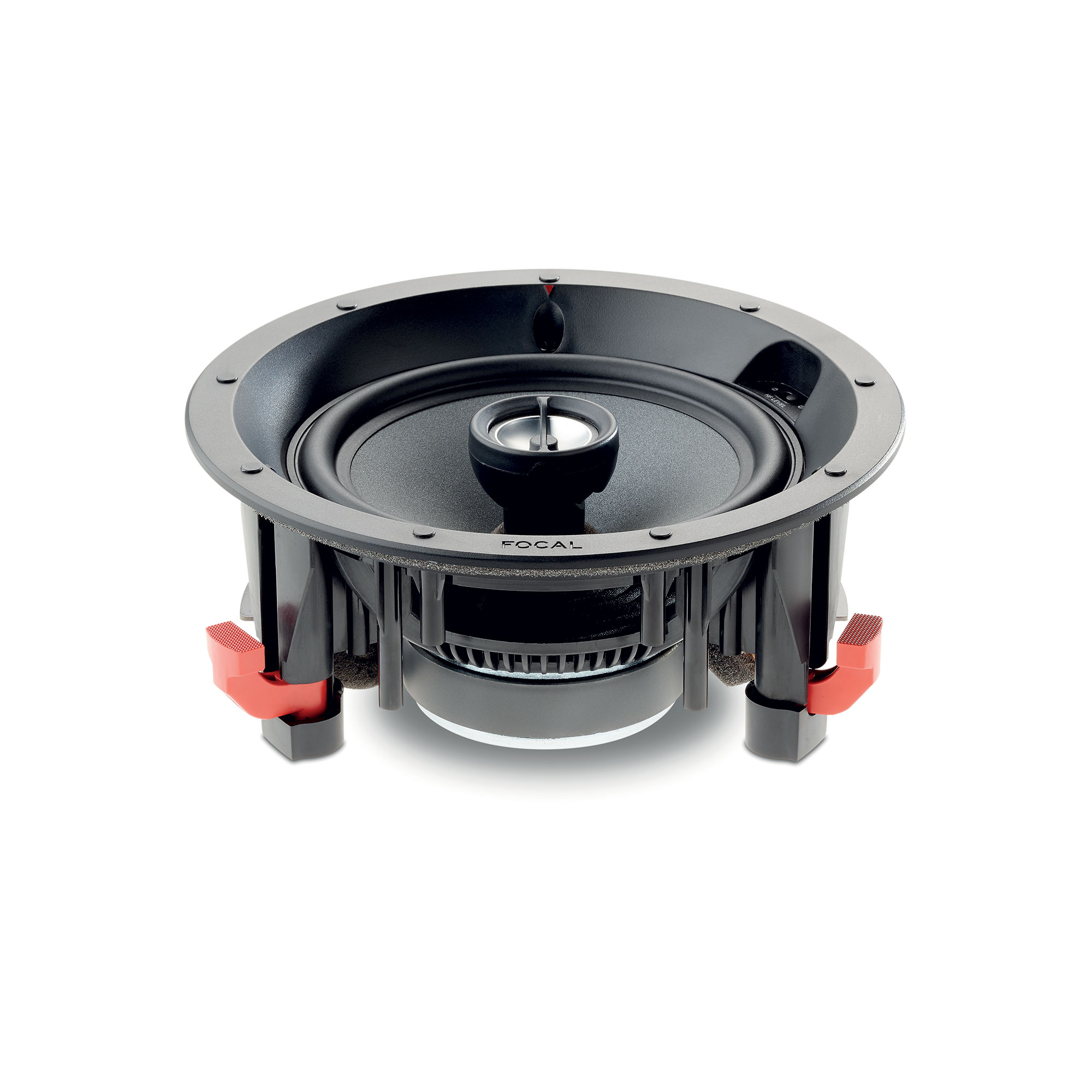

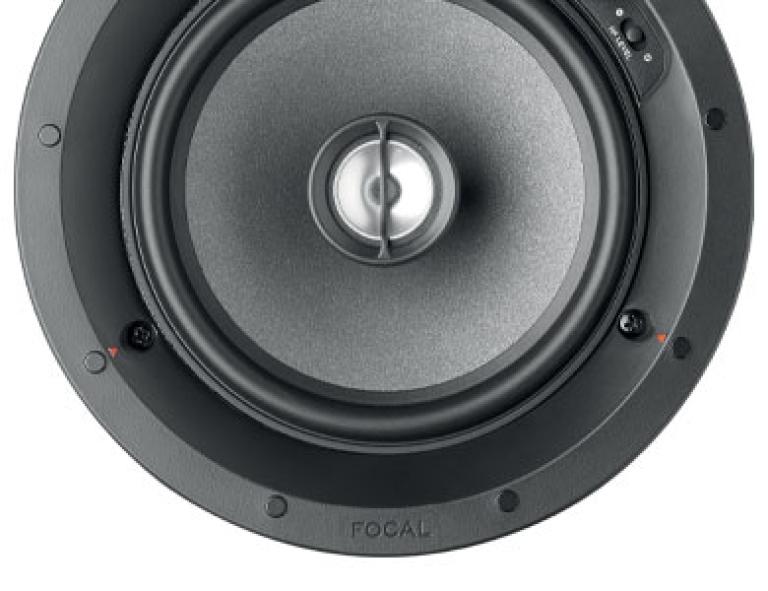

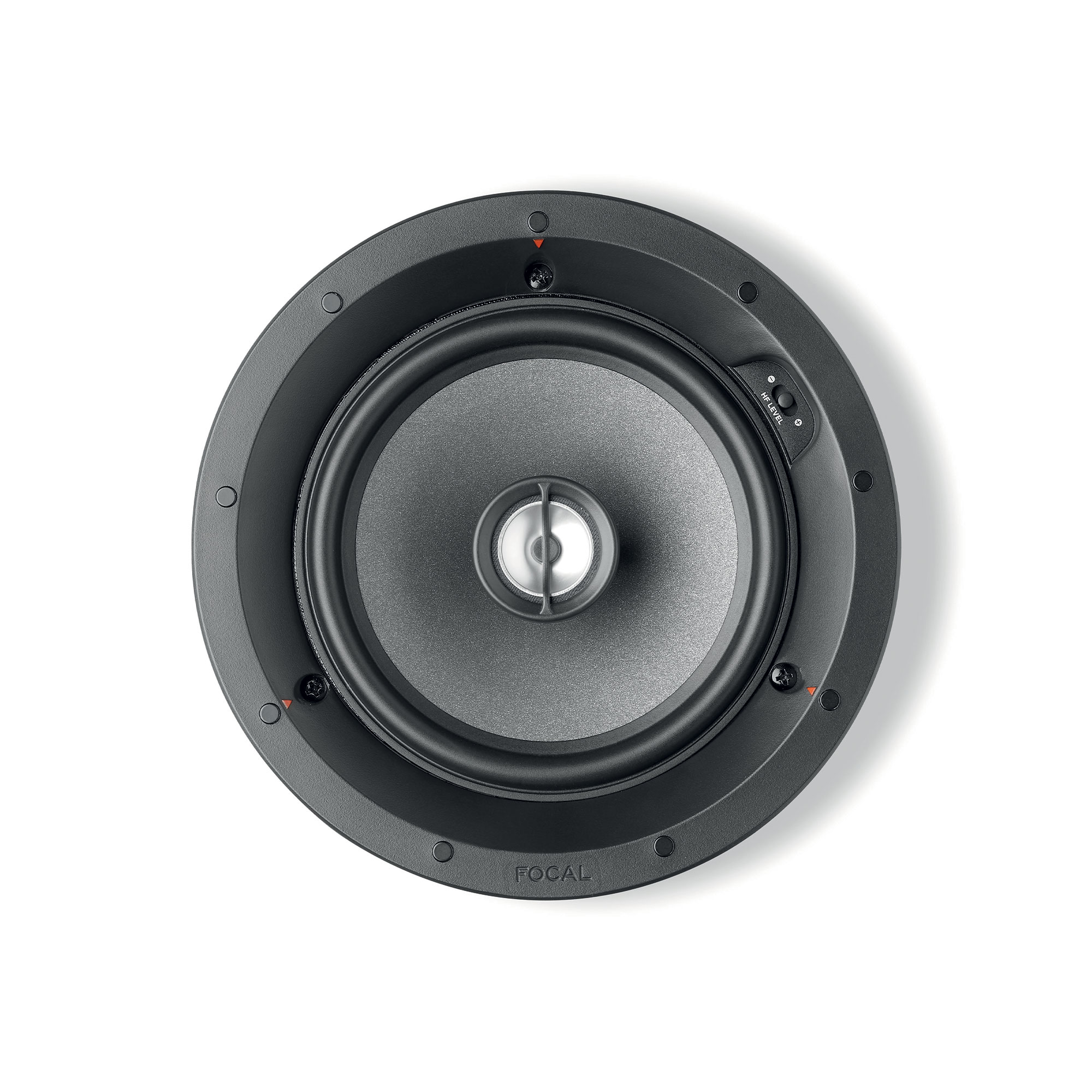

The 100 ICW6 is a 2-way coaxial in-wall or in-ceiling speaker with a 6.5-inch Polyglass driver.
fig. 01 · speakers
100 ICW6
7 photographs · 5 shown
From Focal

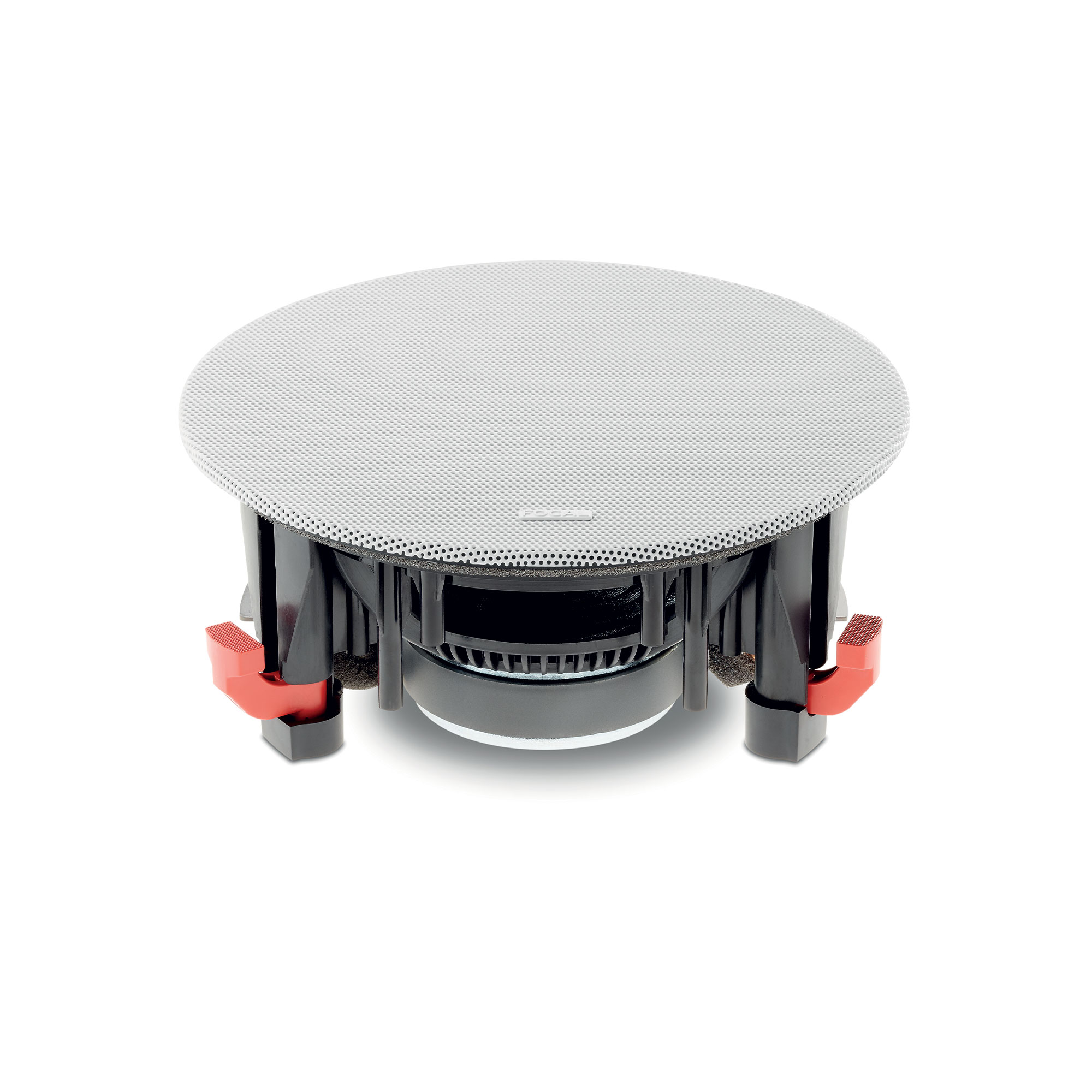

Larger than the 100 ICW5, this coaxial speaker flush-mounts in walls or ceilings for stereo listening or a home cinema setup. Its 6.5-inch Polyglass driver and tweeter reach 62Hz to 23kHz at 89dB sensitivity. The shallow mounting depth and ready-to-paint grille keep the install discreet.
Specifications
| Type | In-wall/In-celling - 2-way coaxial |
|---|---|
| Drivers | 61/2" (16.5cm) Polyglass Midbass | 1" (25mm) AI inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 62Hz-23kHz |
| Low frequency point (-6dB) | 50Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 7.3Ω |
| Recommended amplifier power | 25-100W |
| External dimensions (Ø/Depth) | 83/16"x347/64" (208x95mm) |
| Cut-Out diameter | 71/4" (184mm) |
| Depth from wall | 337/64" (91mm) |
| Net weight (with front grille) | 3.3lbs (1.50kg) |
| Packing dimensions (WxDxH) | 105/8"x105/8"x611/16" (270x270x170mm) |
| Total weight (with packaging) | 4.96lbs (2.25kg) |
