Focal · Speakers · In-wall & In-ceiling Speakers

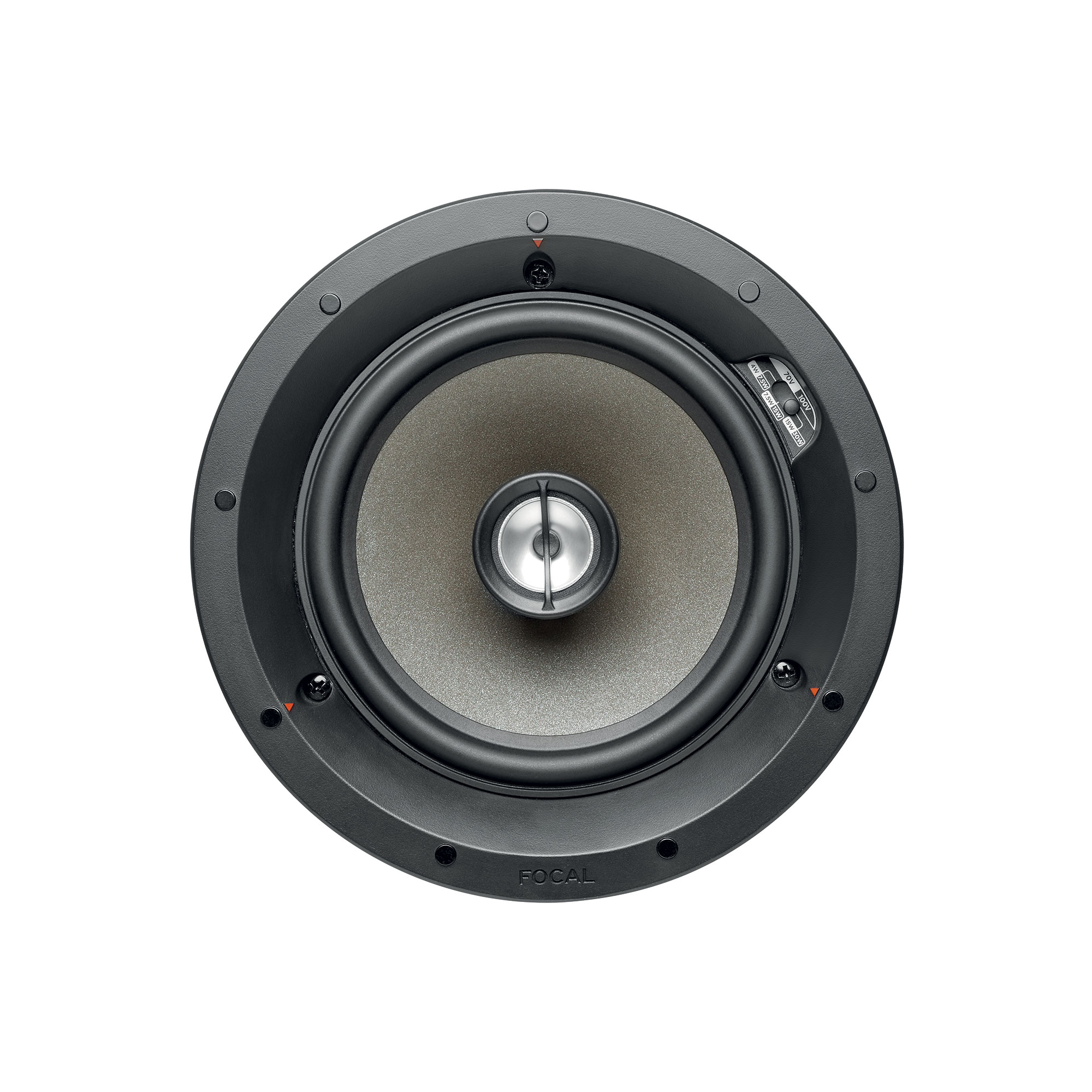

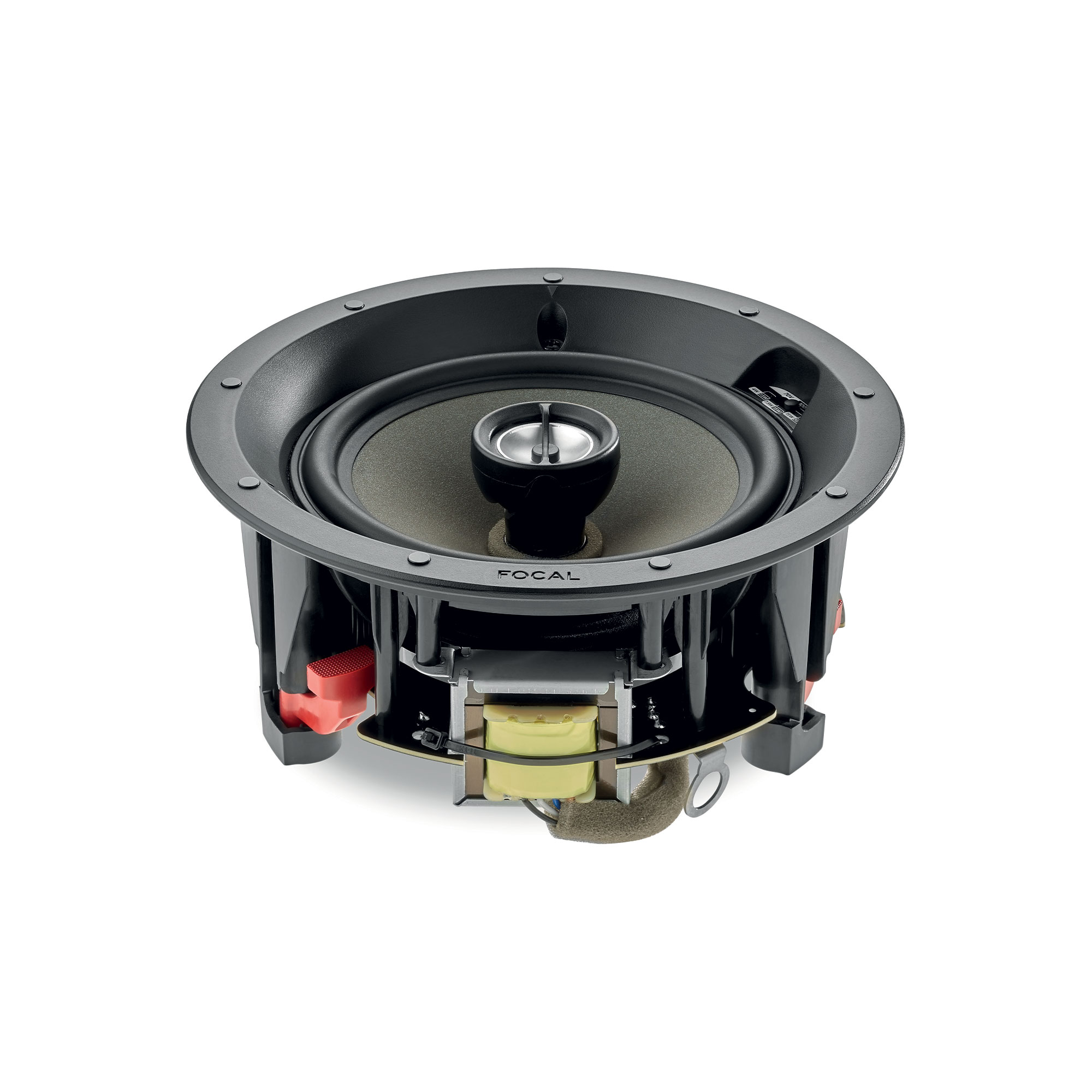

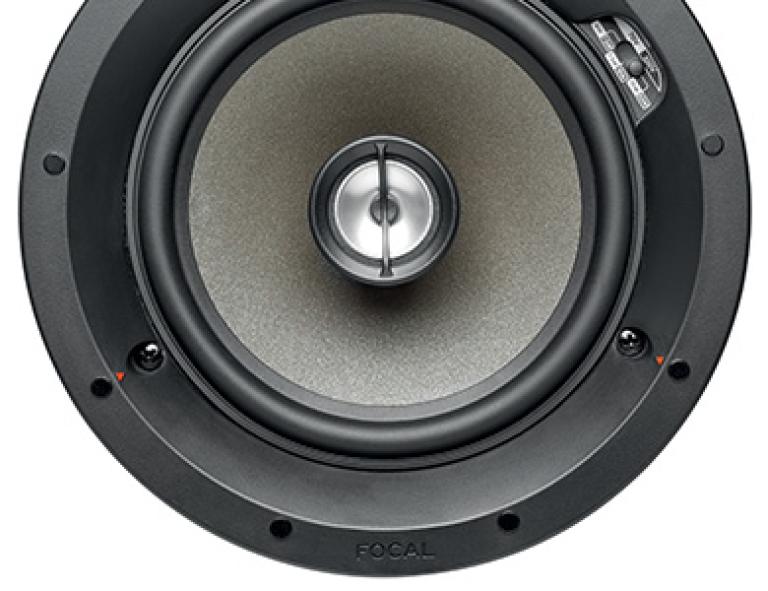

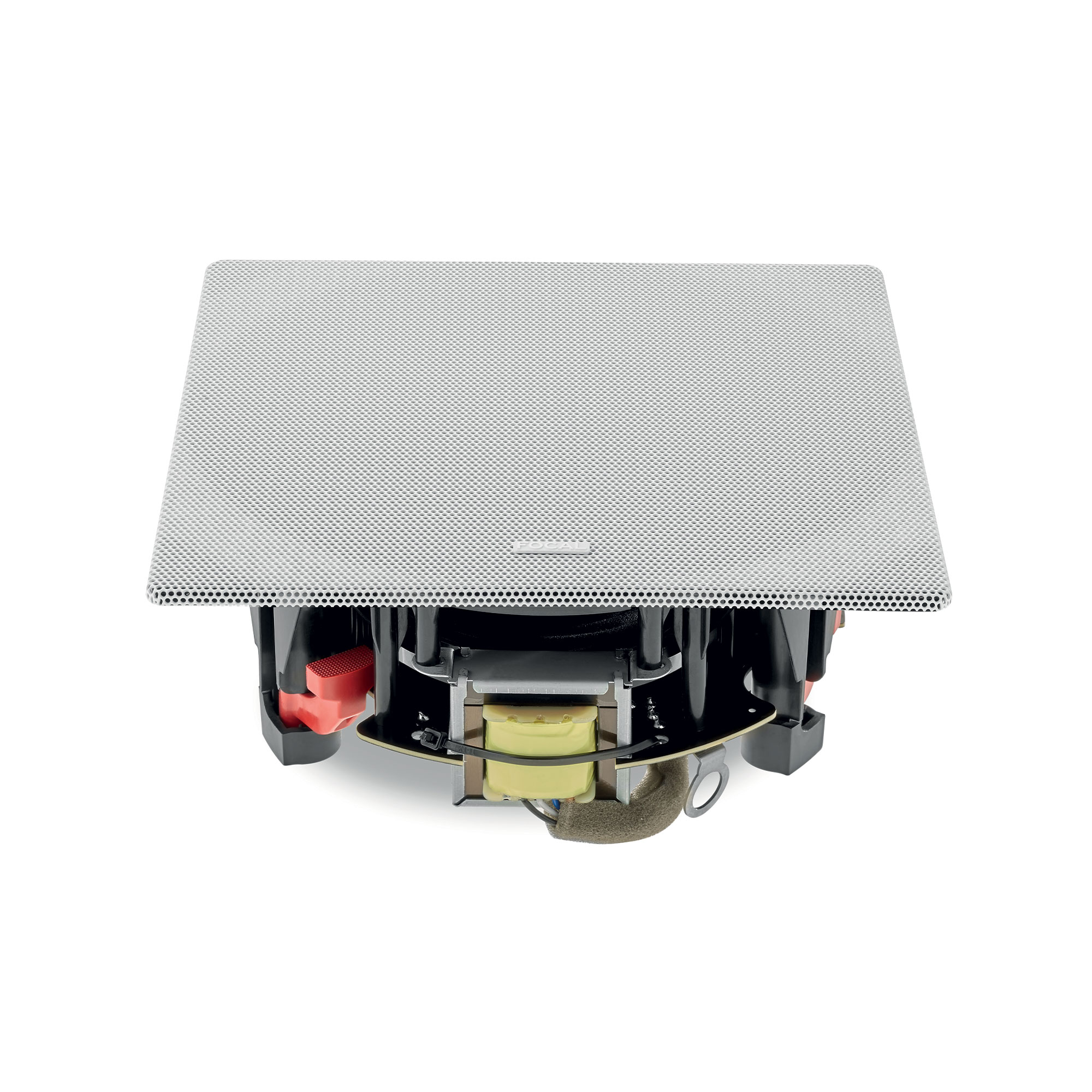

100 ICW6-T
The 100 ICW6-T is a 2-way coaxial in-wall or in-ceiling speaker built for 70V/100V line installations.
fig. 01 · speakers
100 ICW6-T
8 photographs · 5 shown
From Focal
This wall or ceiling speaker steps up from the 100 ICW5-T with a 6.5-inch Polyglass driver and tweeter for natural sound and controlled directivity. A built-in transformer adapts power to 70V or 100V lines, suited to hotels, restaurants, and shopping malls. Mounting stays shallow with a ready-to-paint grille.
Specifications
| Type | In-wall/In-celling - 2-way coaxial | for 100V/70V line installation |
|---|---|
| Drivers | 61/2" (16.5cm) Polyglass Midbass | 1" (25mm) Aluminium inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 62Hz - 23kHz |
| Low frequency point (-6dB) | 50Hz |
| Power in 70V | 4/7.5/15W |
| Power in 100V | 8/15/30W |
| External dimensions (Ø/Depth) | 83/16x33/4" (208x95mm) |
| Cut-Out diameter | 71/4" (184mm) |
| Depth from wall | 35/8" (91mm) |
| Net weight (with front grille) | 3.75lbs (1.7kg) |
| Packing dimensions (WxDxH) | 81/4x81/4x611/16" (270x270x170mm) |
| Total weight (with packaging) | 6.61lbs (3kg) |
