100 ICW8

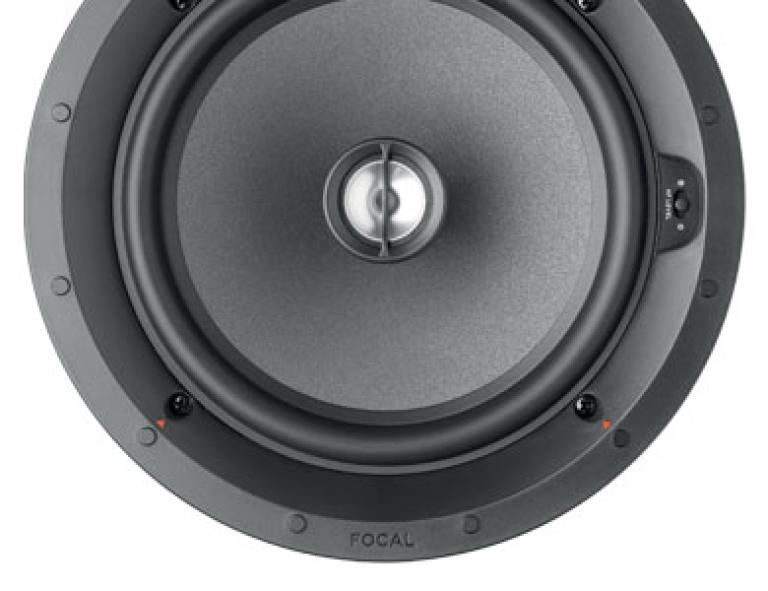

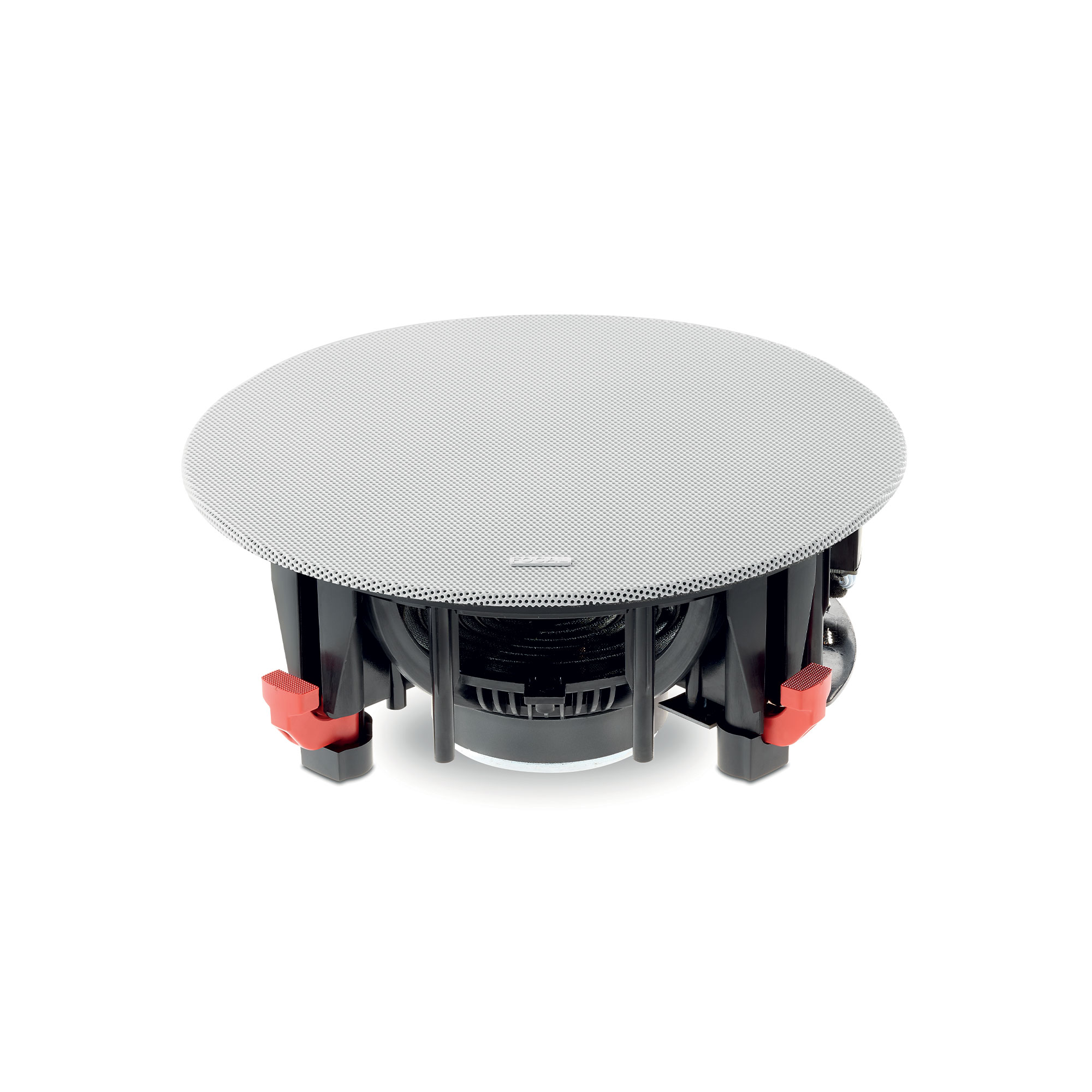

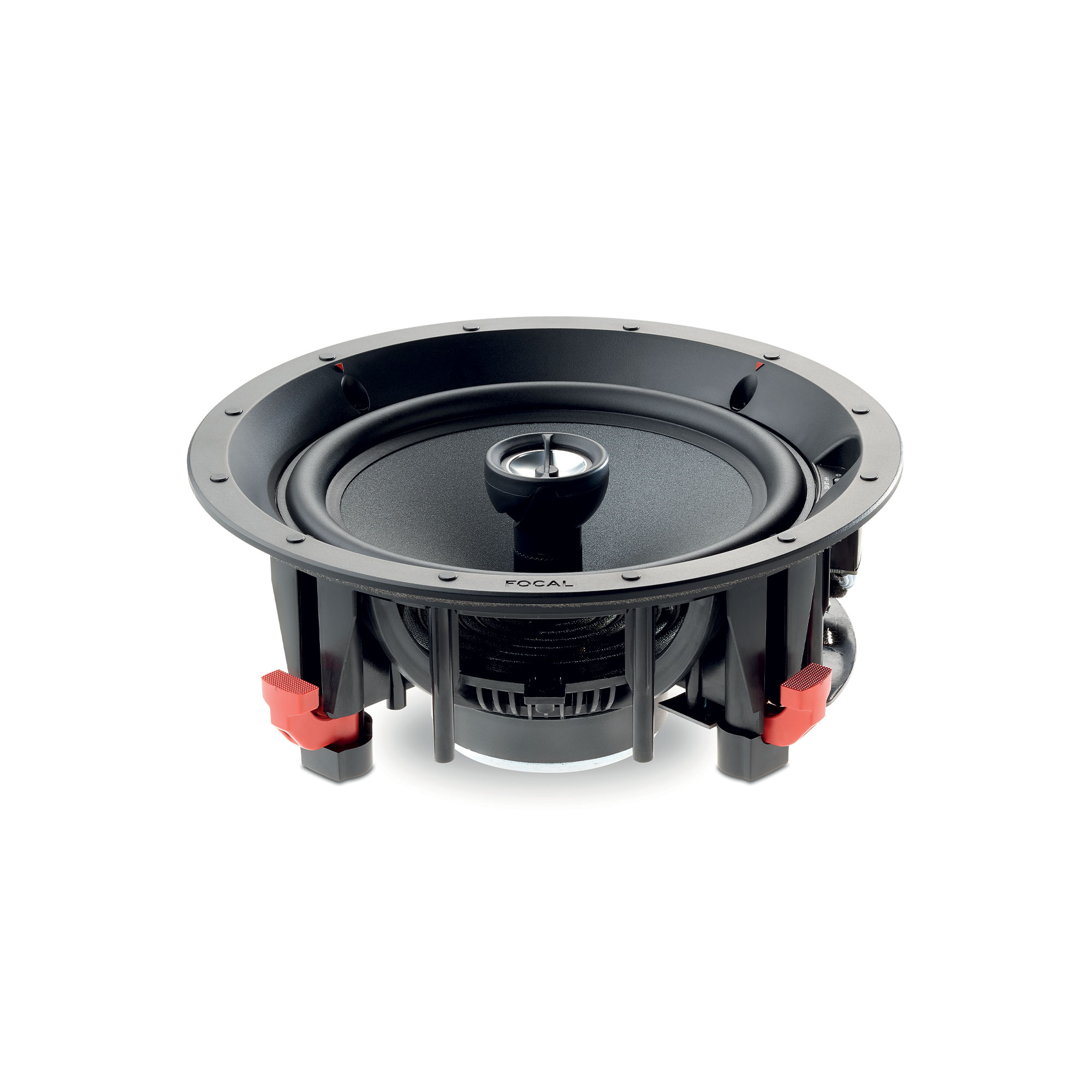

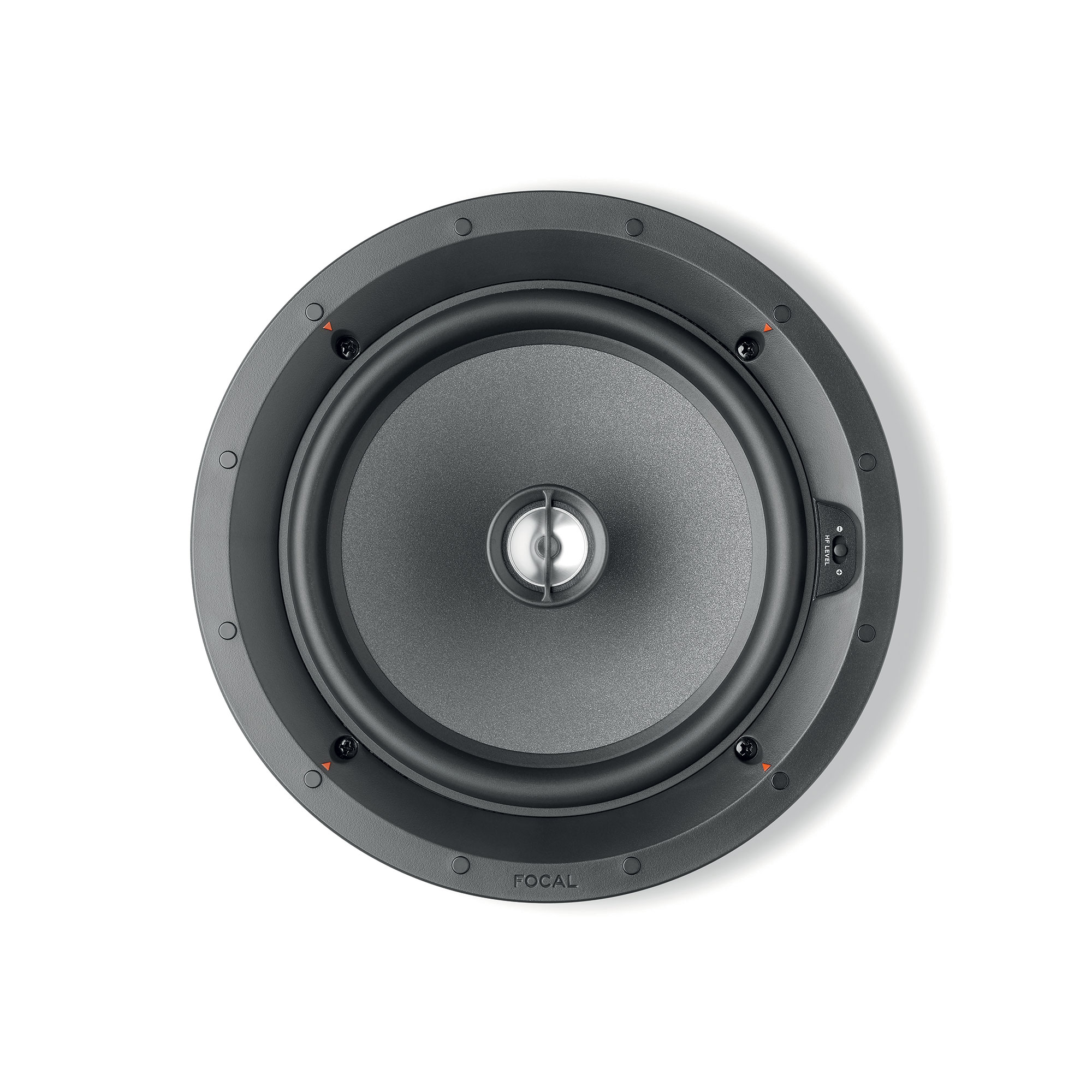

The 100 ICW8 is a two-way coaxial loudspeaker for flush mounting in walls or ceilings, with an 8-inch Polyglass driver.
fig. 01 · speakers
100 ICW8
7 photographs · 5 shown
From Focal
This 2-way coaxial design pairs an 8-inch Polyglass midbass with a 1-inch aluminum inverted dome tweeter for hi-fi sound in the home. It installs in walls or ceilings with a shallow 107mm depth, suits hallways, living rooms, bedrooms, and kitchens, and takes a paintable grille for a flush finish.
Specifications
| Type | In-wall/In-celling 2-way coaxial | 8" (21cm) Polyglass Midbass. | 1" (25mm) AI inverted dome Tweeter |
|---|---|
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response (+/-3dB) | 53Hz-23kHz |
| Low frequency point (-6dB) | 40Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 6,9Ω |
| Recommended amplifier power | 25-150W |
| External dimensions (Ø/Depth) | 93/4"x43/8" (248x111mm) |
| Cut-Out diameter | 813/16" (224mm) |
| Depth from wall | 43/16" (107mm) |
| Net weight (with front grille) | 3.86lbs (1.75kg) |
| Packing dimensions (WxDxH) | 123/16"x123/16"x71/4" (310x310x185mm) |
| Total weight (with packaging) | 4.73lbs (2.60kg) |
