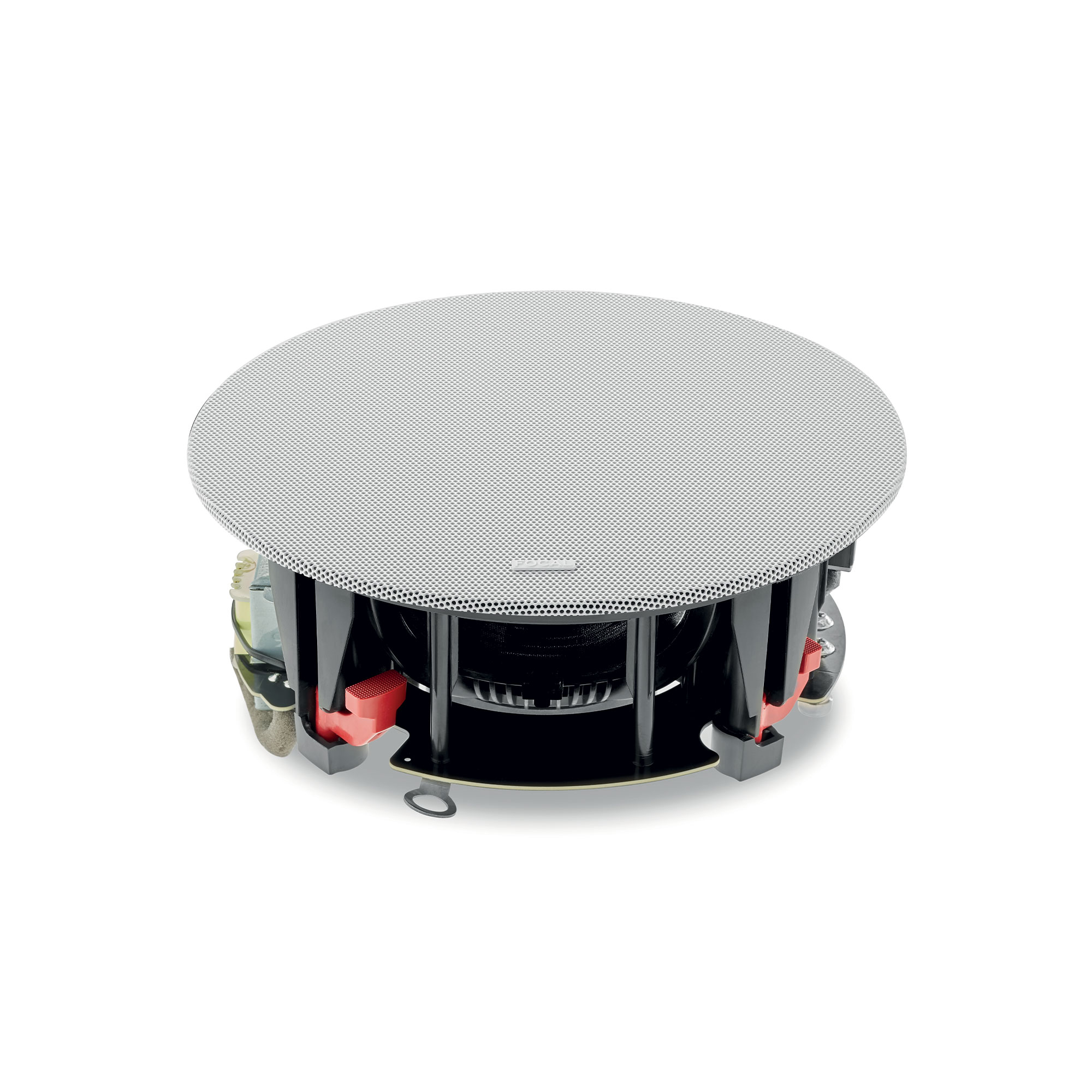

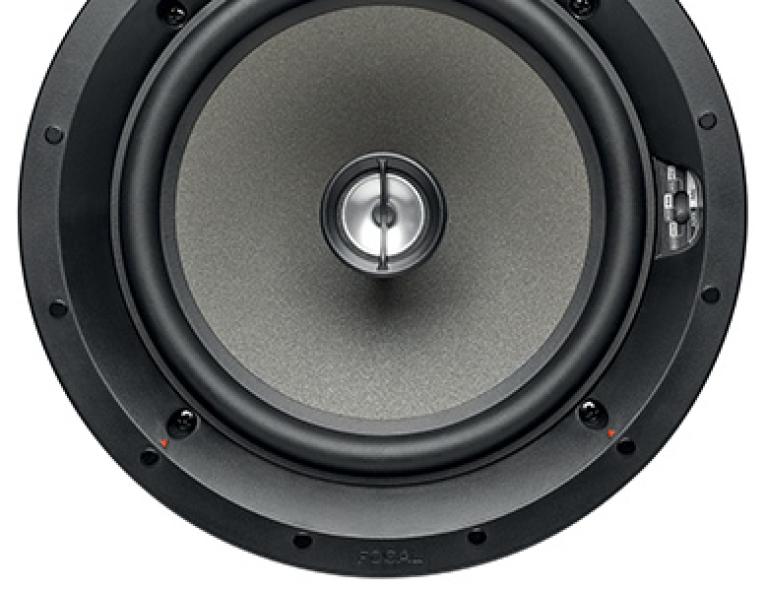

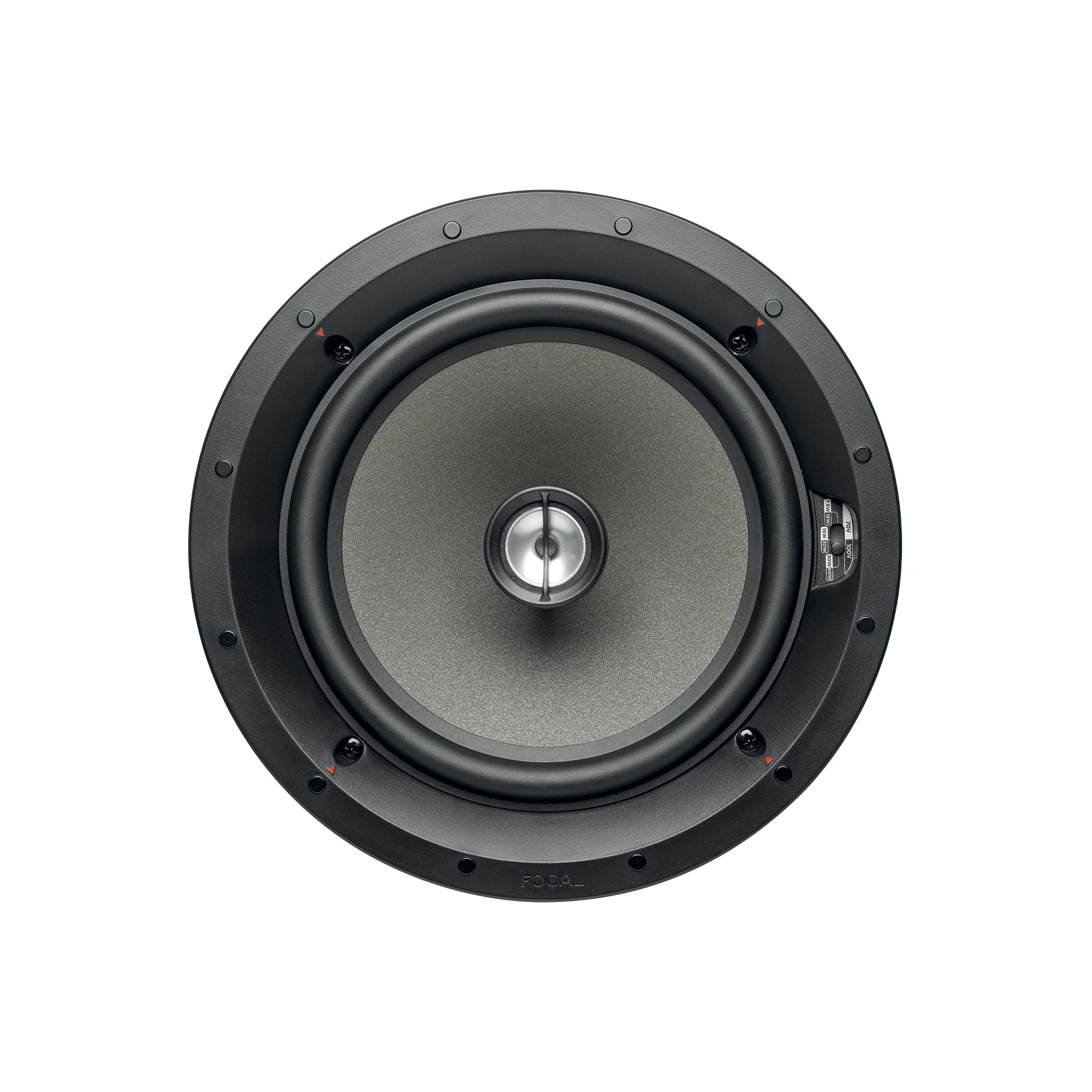

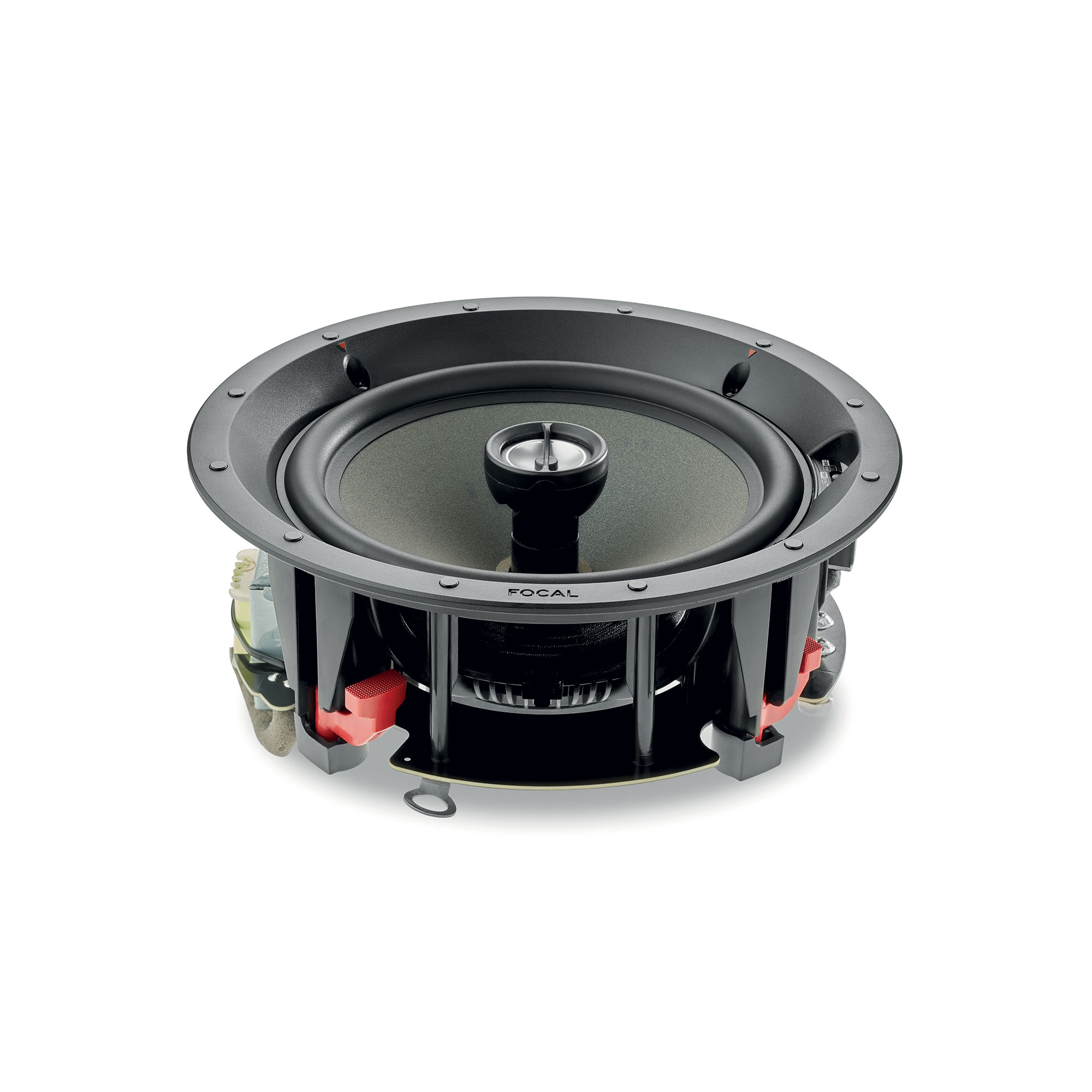

100 ICW8-T
The 100 ICW8-T is a 100V/70V in-wall or in-ceiling loudspeaker built for commercial spaces like hotels and restaurants.
fig. 01 · speakers
100 ICW8-T
8 photographs · 5 shown
From Focal
An 8-inch Polyglass midbass and aluminum inverted dome tweeter pair in a 2-way coaxial layout with low directivity for even coverage across a room. A switchable transformer adapts output to 70V or 100V line installations, and it mounts flush in walls or ceilings with a paintable grille.
Specifications
| Type | In-wall/In-celling - 2-way coaxial | for 100V/70V line installation |
|---|---|
| Drivers | 8" (21cm) Polyglass Midbass | 1" (25mm) AIuminium inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response (+/-3dB) | 53Hz - 23kHZ |
| Low frequency point (-6dB) | 40Hz |
| Power in 70V | 7.5/15/30W |
| Power in 100V | 15/30/60W |
| External dimensions (Ø/Depth) | 93/4x43/8" (248x111mm) |
| Cut-Out diameter | 813/16" (224mm) |
| Depth from wall | 41/4" (107mm) |
| Net weight (with front grille) | 5lbs (2.3kg) |
| Packing dimensions (WxDxH) | 123/16x123/16x71/4" (310x310x185mm) |
| Total weight (with packaging) | 8lbs (3.6kg) |
