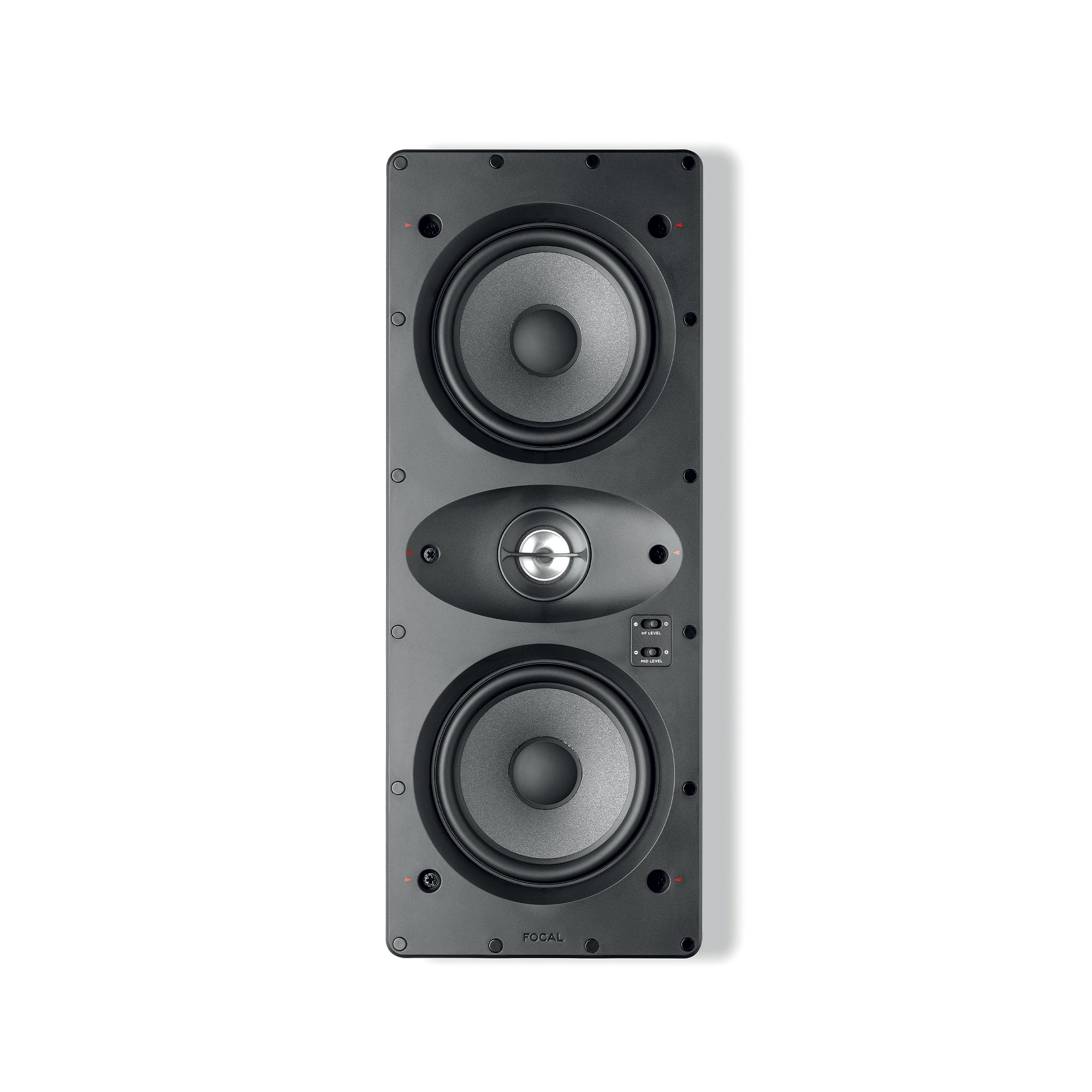

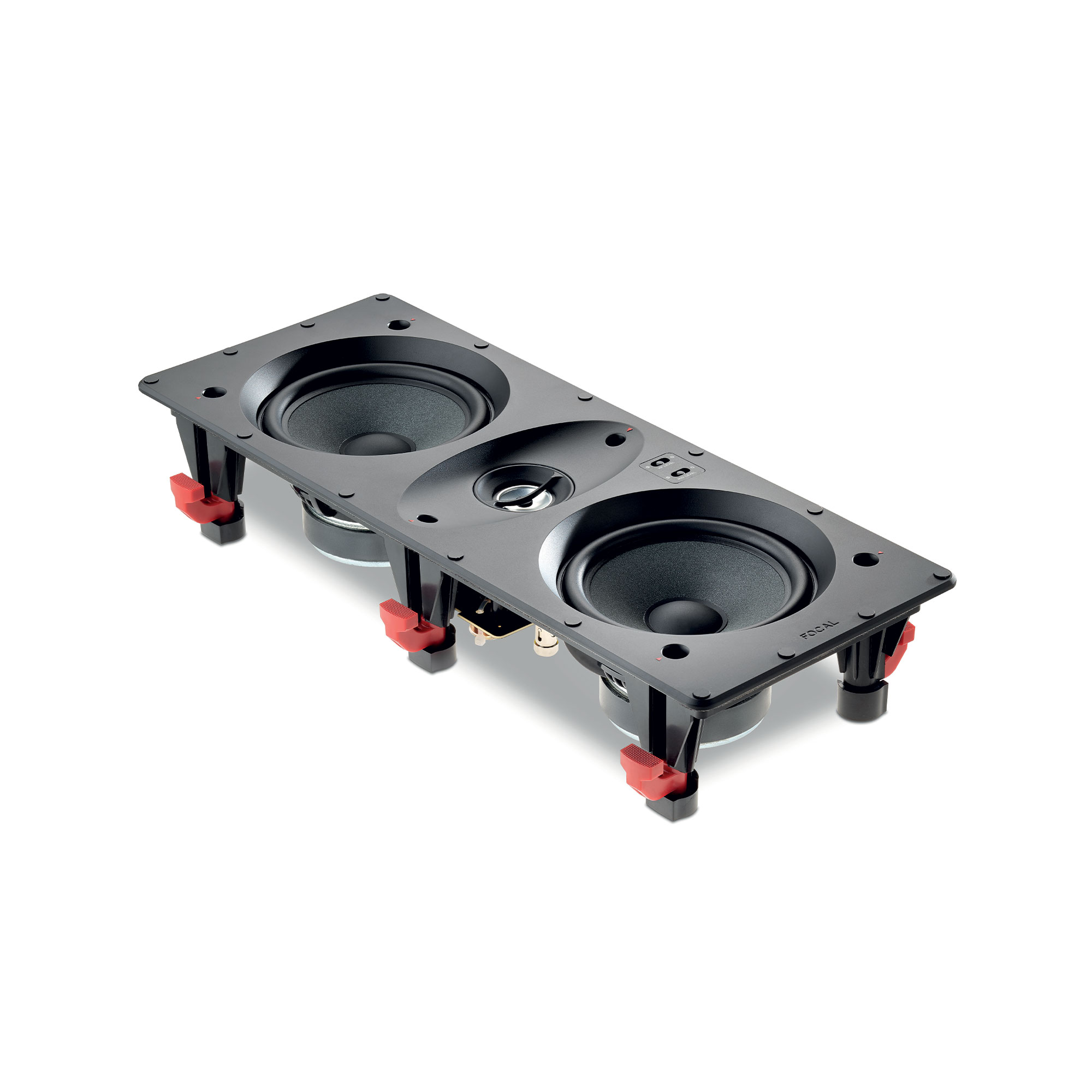

100 IWLCR5
The 100 IWLCR5 is a D'Appolito in-wall LCR loudspeaker with dual 5-inch Polyglass drivers for home theater use.
fig. 01 · speakers
100 IWLCR5
8 photographs · 5 shown
From Focal

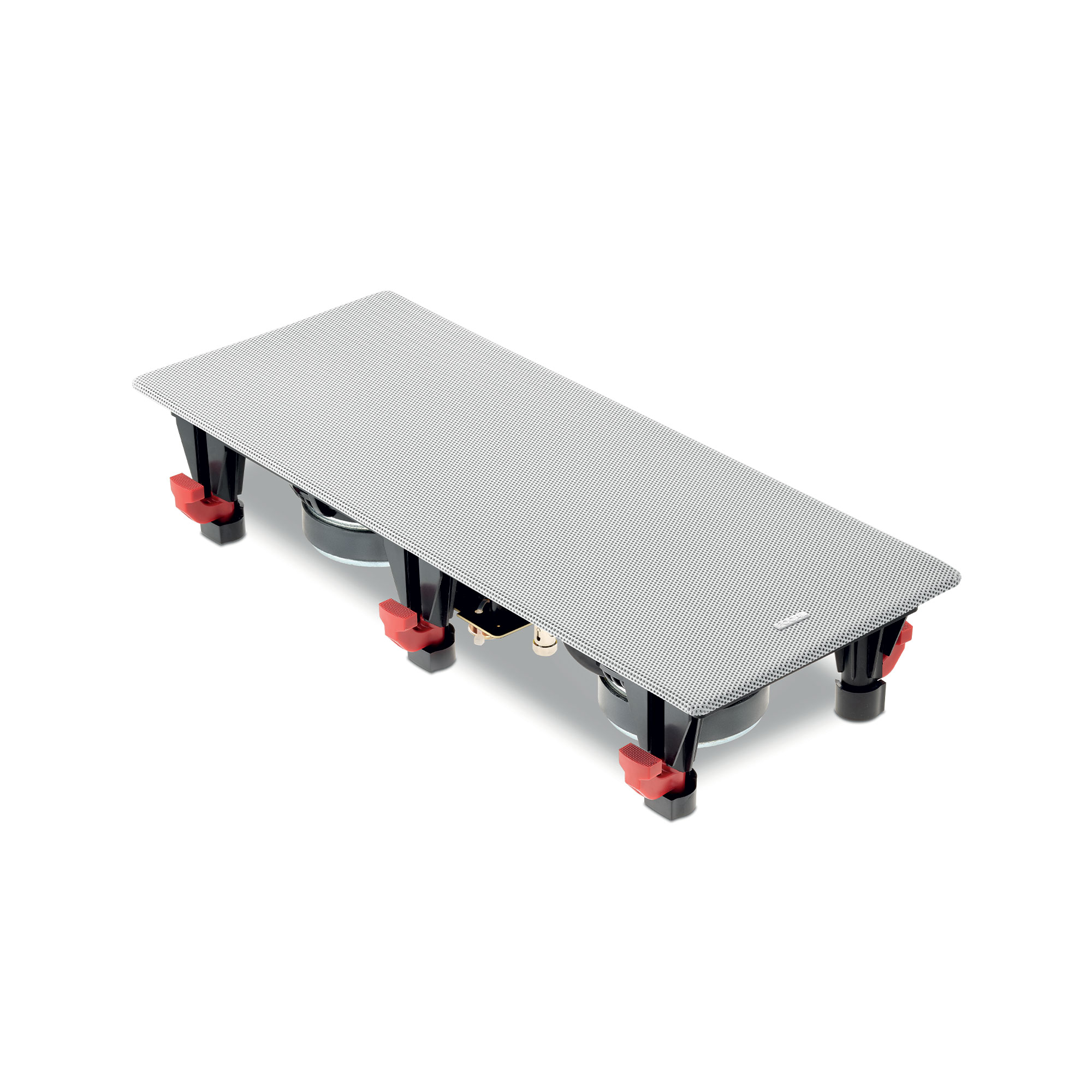

Two 5-inch Polyglass midbass drivers flank the tweeter in a D'Appolito layout, built for high power handling and tighter directivity control. Designed as a left, center, or right channel for home theater, it also works as an in-wall speaker in any room, mounting flush with an 83mm depth and paintable grille.
Specifications
| Type | D'appolito In-wall 2-way |
|---|---|
| Drivers | 2x5" (13cm) Polyglass Midbass |
| Sensitivity (2.83V/1m) | 90,5dB |
| Frequency response (+/-3dB) | 55Hz-23kHz |
| Low frequency point (-6dB) | 43Hz |
| Nominal impedance | 8Ω |
| Minimal impedance | 3.8Ω |
| Recommended amplifier power | 25-120W |
| External dimensions (Ø/Depth) | 175/16"x613/16"x33/8" (440x173x86mm) |
| Cut-Out diameter | 165/16"x513/16" (415x147mm) |
| Depth from wall | 31/4" (83mm) |
| Net weight (with front grille) | 3.89lbs (2.90kg) |
| Packing dimensions (WxDxH) | 193/16"x811/16"x411/16" (487x220x119mm) |
| Total weight (with packaging) | 7.6lbs (3.45kg) |
