100 IWSUB8

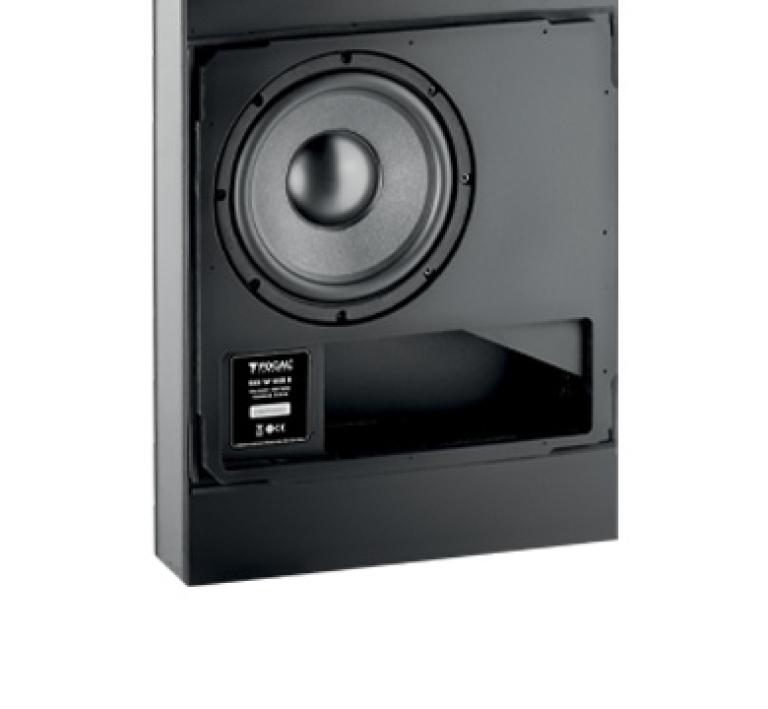

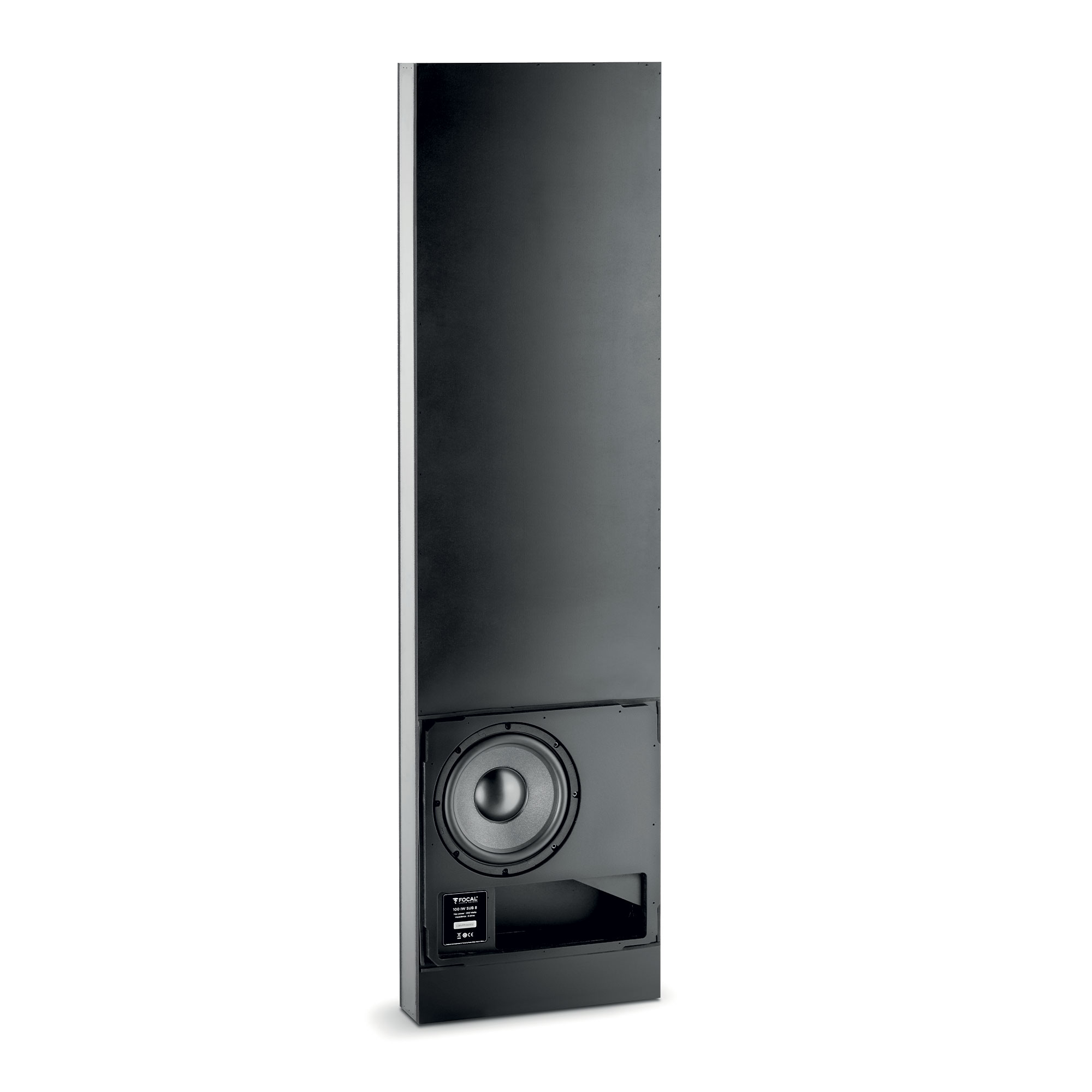

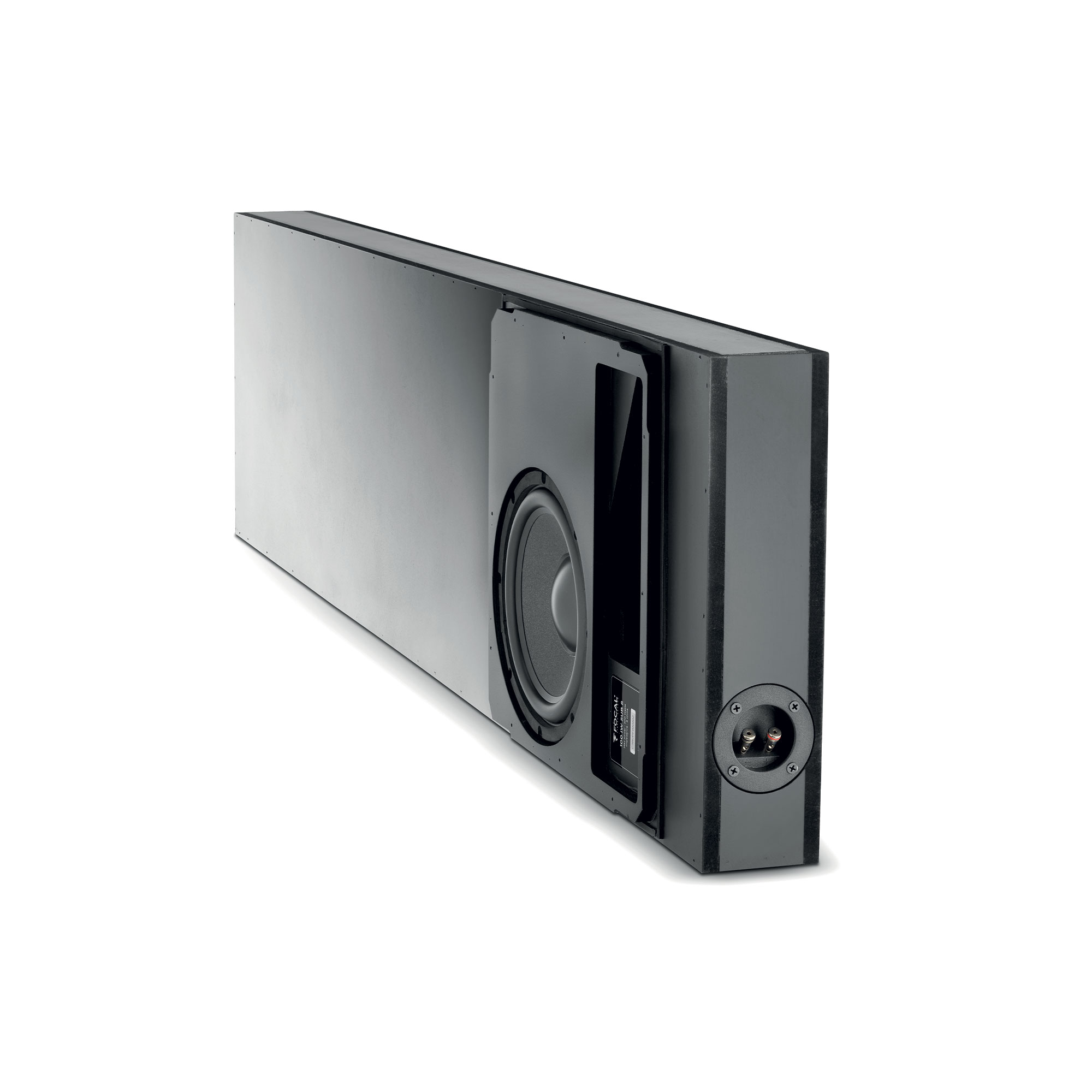

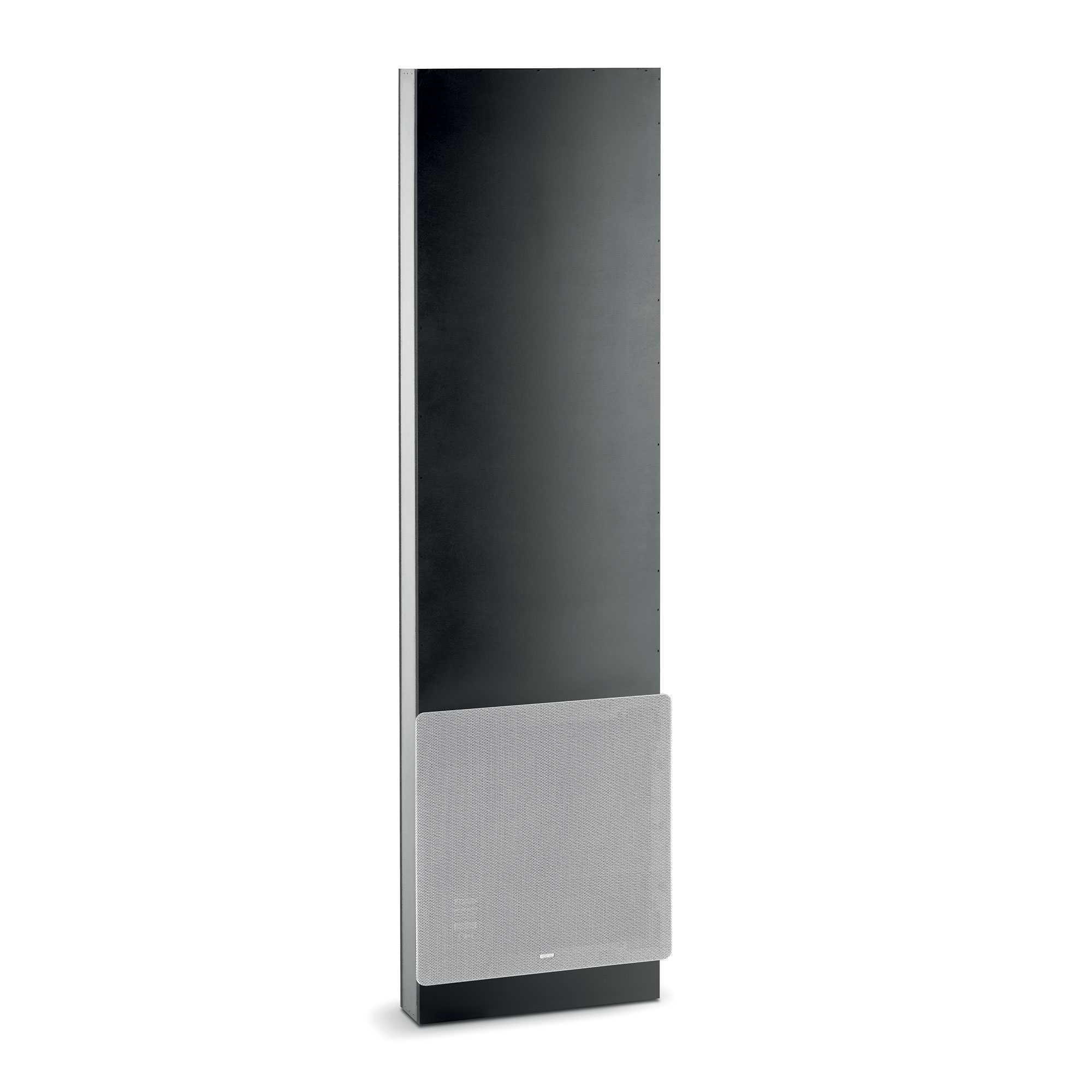

A passive in-wall subwoofer with a 21cm Polyglass driver and front port, built to complete a 100 Series install.
fig. 01 · subwoofers
100 IWSUB8
8 photographs · 5 shown
From Focal
This in-wall subwoofer pairs a 21cm Polyglass driver with a front port tuned to a 30Hz low cut-off, at 89dB sensitivity. It needs external amplification of up to 200W and presents an 8-ohm load. At just 3 3/8 inches deep from the wall, it completes a 100 Series install.
Specifications
| Type | Passive subwoofer |
|---|---|
| Speakers | 8" (21cm) Polyglass Woofer |
| Sensitivity (2.83V/1m) | 89 dB |
| Bandwith (+/-3dB) | 34-140Hz |
| Cut-off frequency (-6dB) | 30Hz |
| Nominal impedance | 8Ω |
| Recommended amp power | Max 200W / 4Ω |
| Dimensions (WxDxH) | 13 7/8 x 3 7/8 x 51 3/16 " (352 x 98 x 1,300mm) |
| Cut-out dimensions (WxH) | 13 7/8 x 51 3/16 " (352 x 1,300mm) |
| Depth from wall | 3 3/8 " (86mm) |
| Net weight | 32.3lbs (14.6kg) |
