Focal · Accessories
100 IWSUB8 Amplifier
Rack-mountable amplifier for the passive 100 IWSUB8 subwoofer, 200W max and 150W continuous into 4 ohms.
fig. 01 · accessories
100 IWSUB8 Amplifier
From Focal

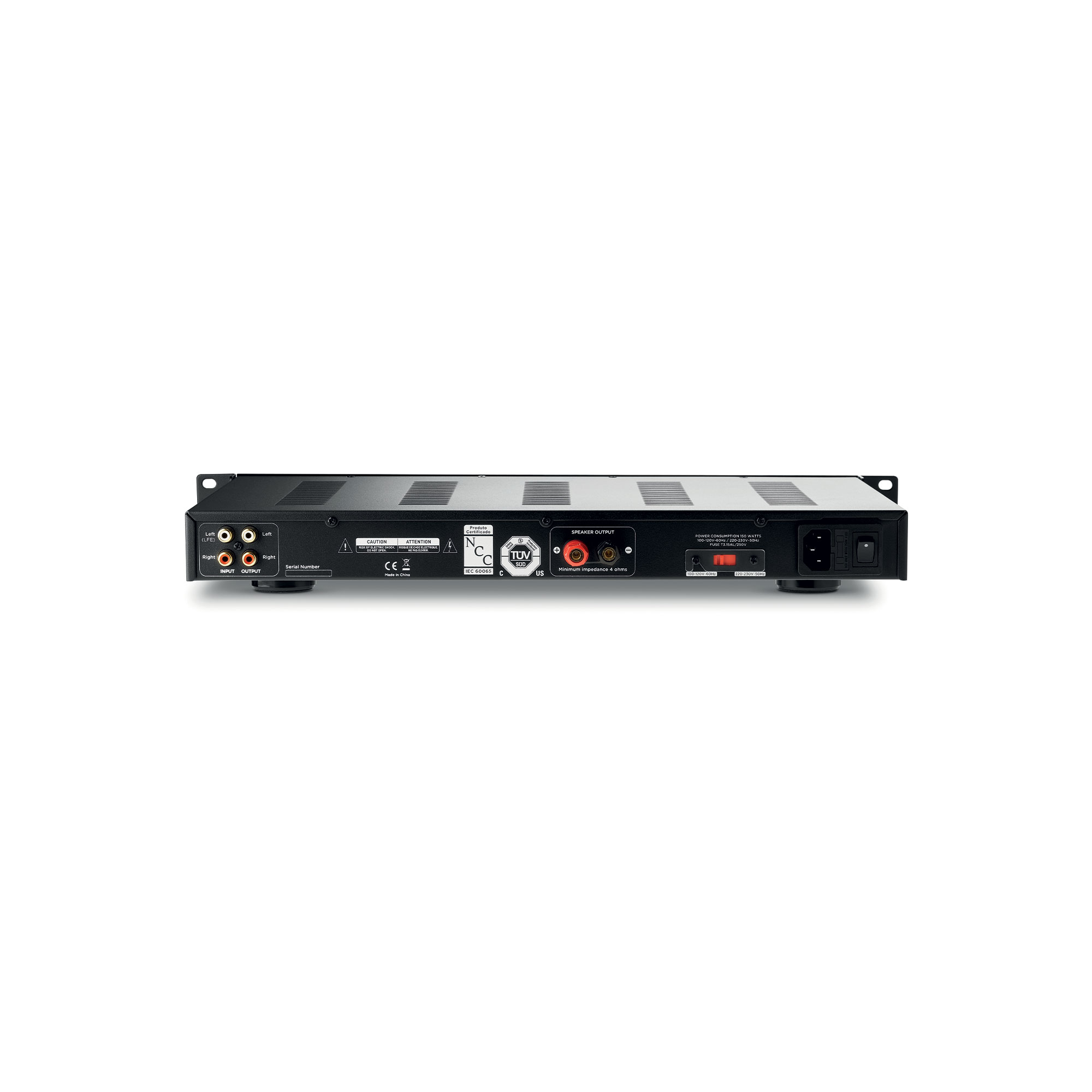

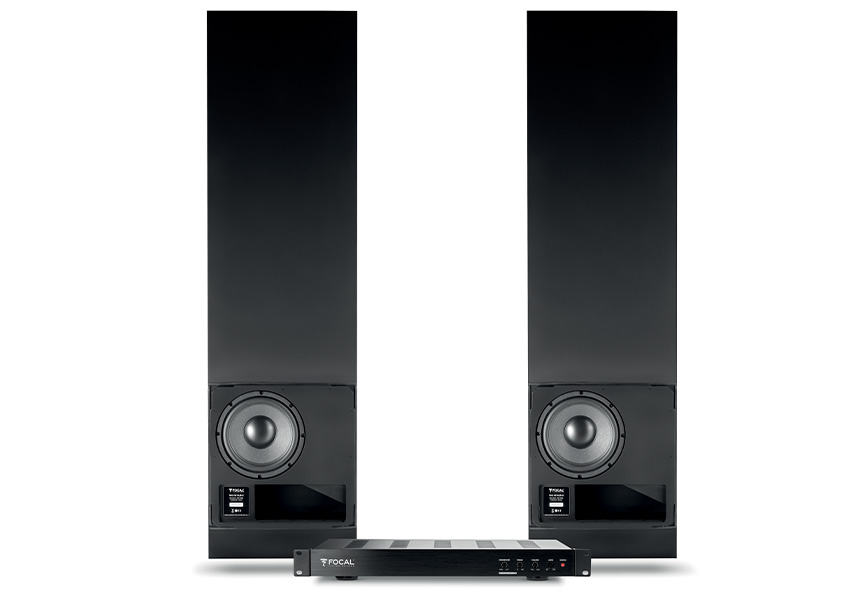

This rack-mountable amplifier powers the passive 100 IWSUB8 in-wall subwoofer, delivering 200W max and 150W continuous into 4 ohms. High-level electronic protection guards the circuit. It can drive 2 IWSUB8 subwoofers wired in parallel.
Specifications
| Type | Subwoofer amplifier |
|---|---|
| Power (continuous) | Max 200W, 150W continuous (4 Ω ) |
| Minimum load | 4Ω |
| Voltage range | 100-120V-60Hz / 220-230V-50Hz |
| Power consumption | 150W |
| Stand-by power consumption | 0.5W |
| Bandwith | 20-250Hz |
| Subsonic filter | 18dB/oct. |
| Inputs | LFE, Line in L/R |
| Outputs | Line out L/R and subwoofer power output on speaker terminal |
| Cord | Detachable IEC power cord |
| Protection | Dynamic power control, thermal protection, short circuit, fuse, and over-current protection |
| Dimensions (HxWxD) | 13/4 (21/16 with stands) x 167/8 (19 with brackets) x 101/8 " [44.5 x 429 x 257mm] |
| Net weight | 6.8lbs (3.1kg) |
