100 OD6
An IP66-certified outdoor loudspeaker with a 6.5-inch waterproof woofer and aluminum tweeter for hi-fi sound outside.
fig. 01 · speakers

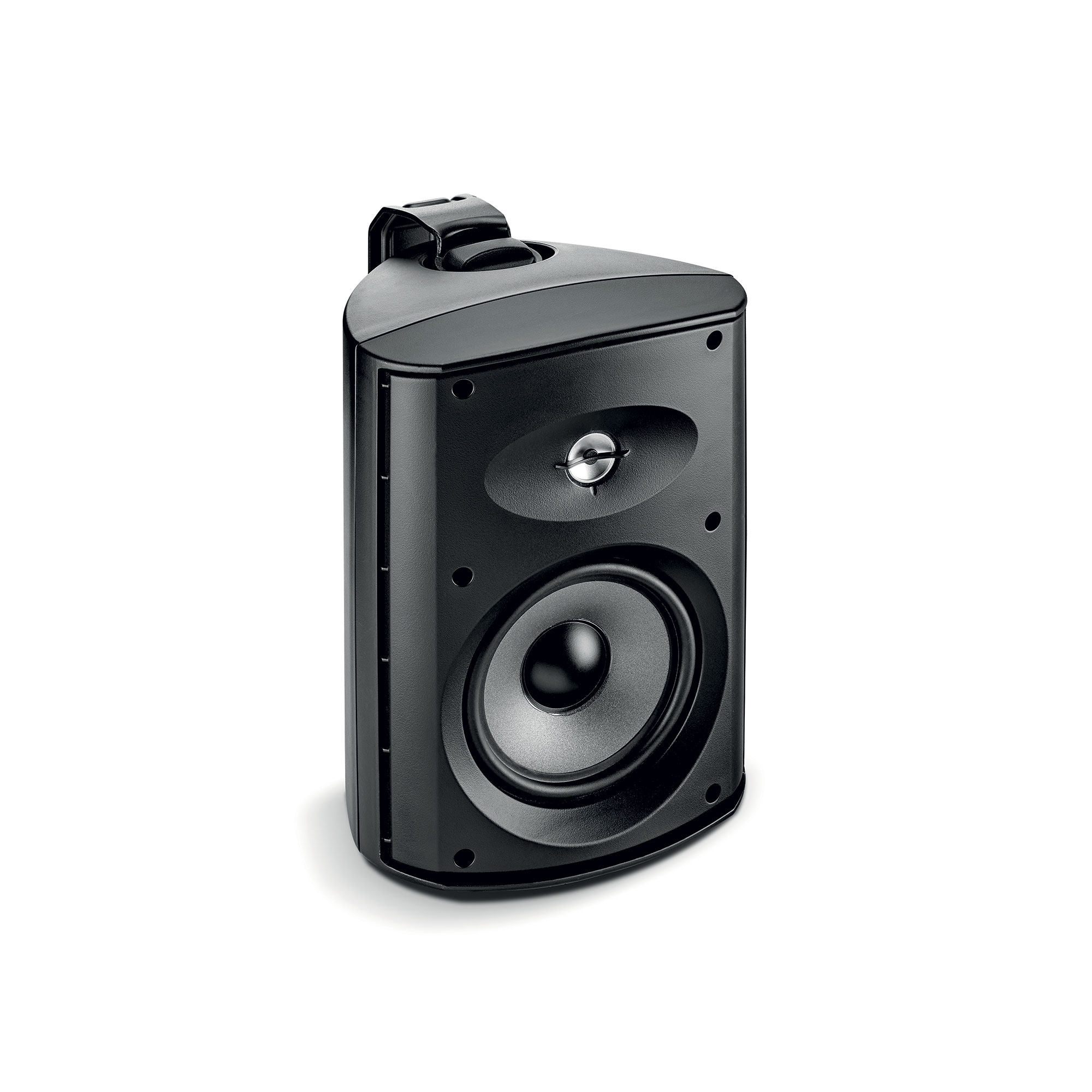

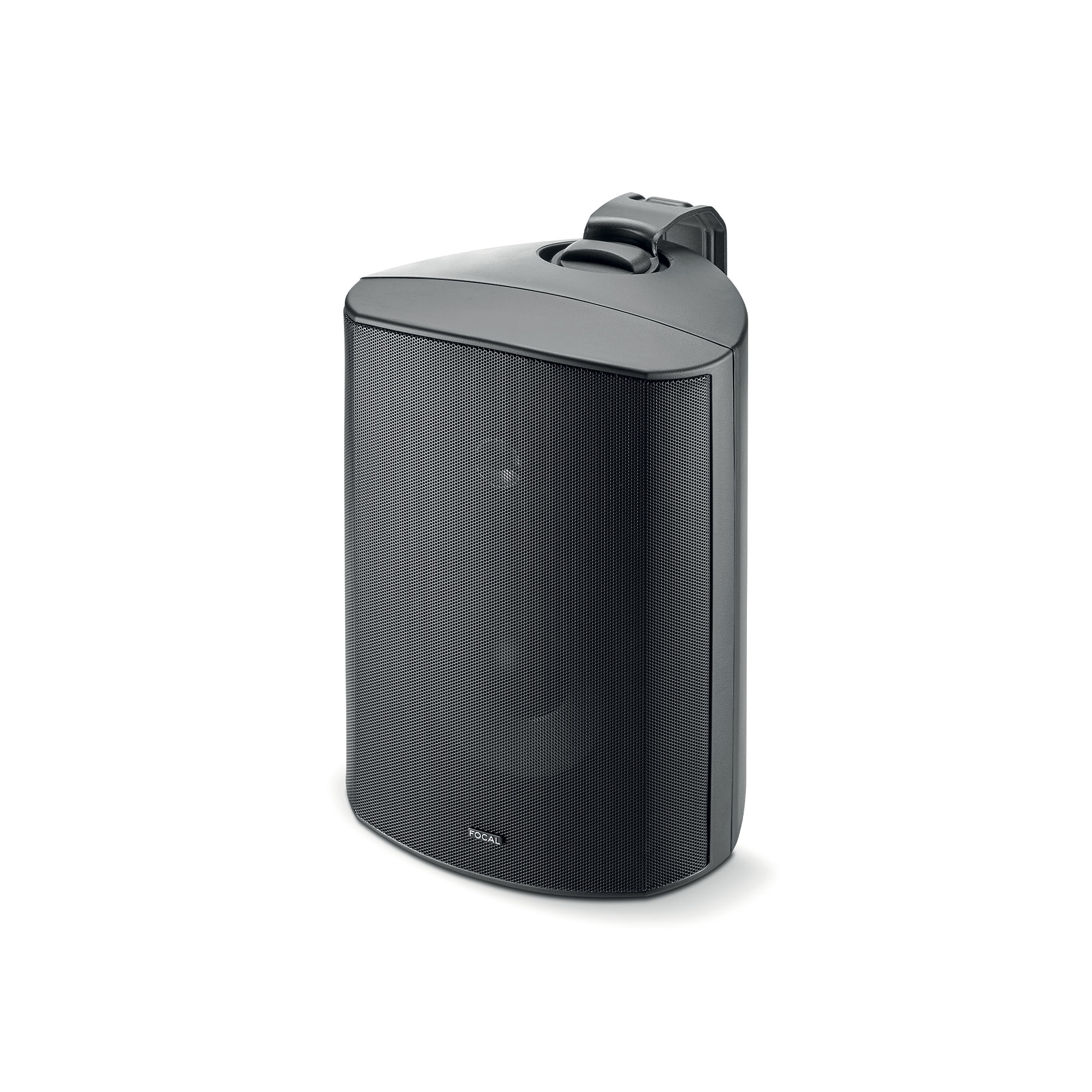

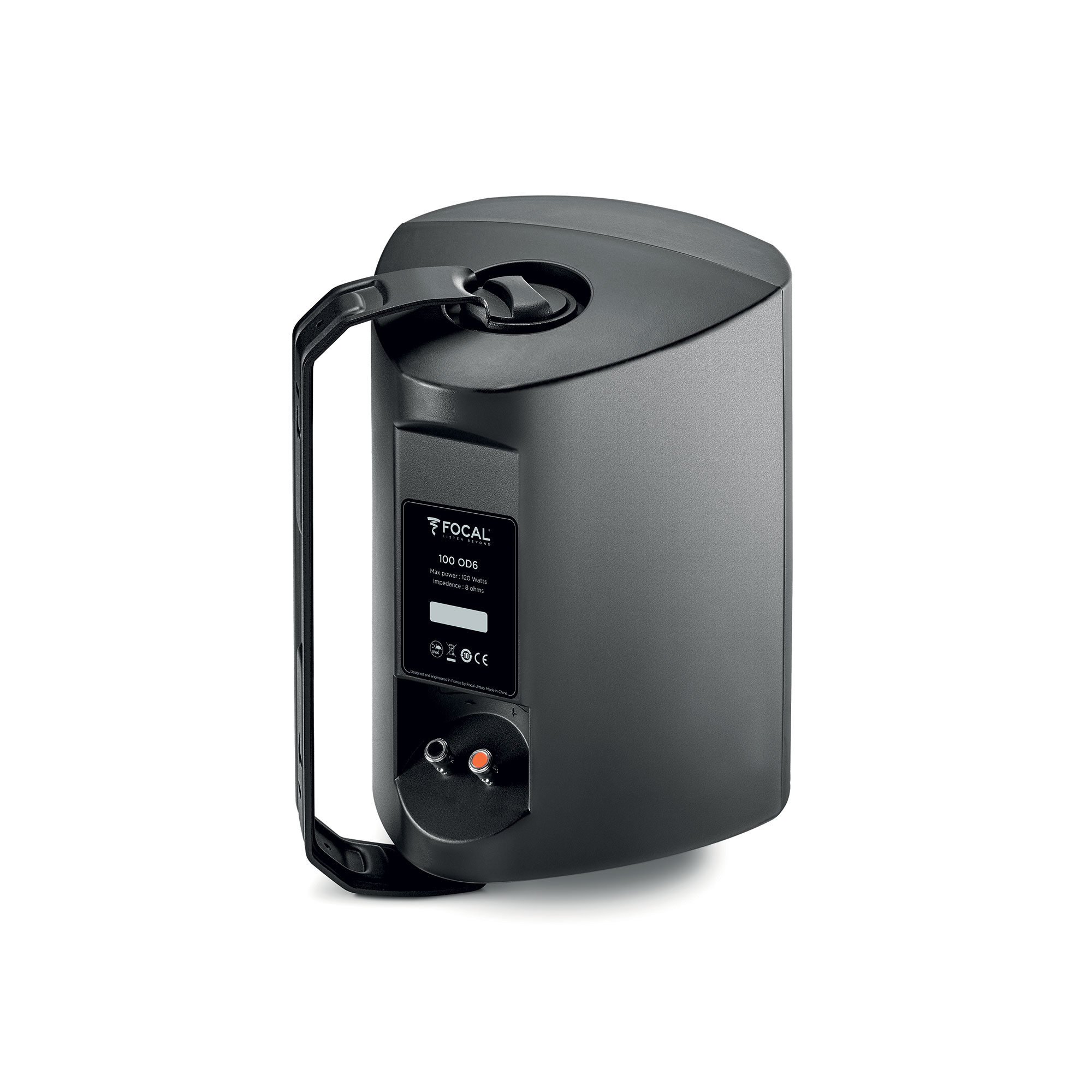

100 OD6
8 photographs · 5 shown
From Focal
The 100 OD6 pairs an aluminum inverted dome tweeter with a 6.5-inch Polyglass woofer, rated at 87dB sensitivity and 20-120W. IP66 certification and a ready-to-paint grille and cabinet suit it to outdoor spaces in any weather.
Specifications
| Type | Outdoor loudspeaker |
|---|---|
| Speakers | Aluminum inverted dome tweeter 6 1/2 " (165mm) waterproof woofer with Polyglass treatment |
| Sensitivity (2,83V/1m) | 87dB |
| Frequency response (+/-3dB) | 65Hz-23kHz |
| ow frequency point (-6dB) | 55Hz |
| Nominal impedance | Ω8 |
| 1inimal impedance | 6.7Ω |
| ecommended amp power | 20-120W |
| iltering frequencies | 2,800Hz |
| Dimensions (L x P x H) with brackets | 8.8 x 10.1 x 12.6" (224 x 256 x 319mm) |
| Net weight with brackets | 9lbs (4.1kg) |
