Focal · Speakers · Outdoor Speakers
100 OD6-T
The 100 OD6-T is an outdoor speaker with a built-in 70/100V transformer, linking multiple units for wide, powerful coverage.

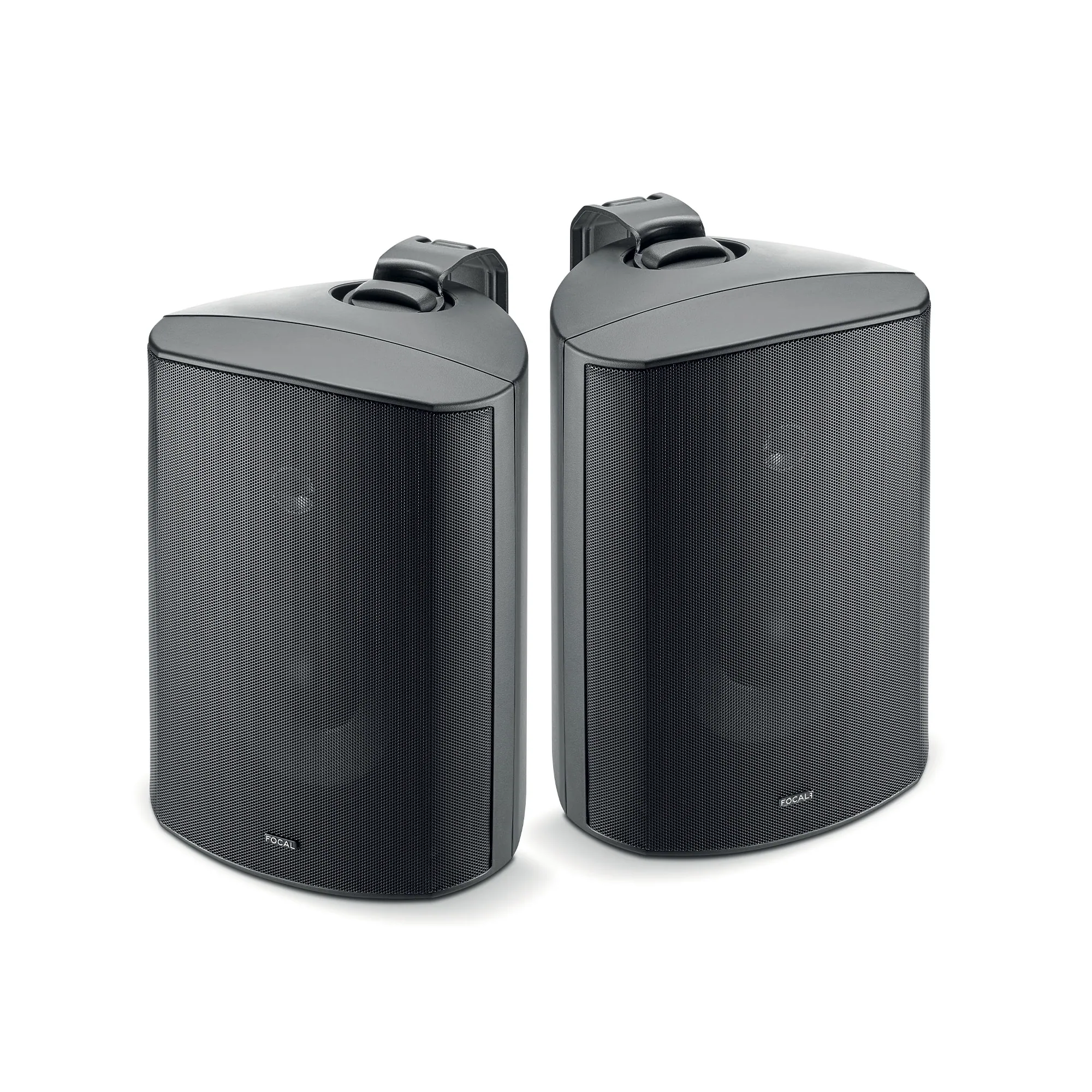

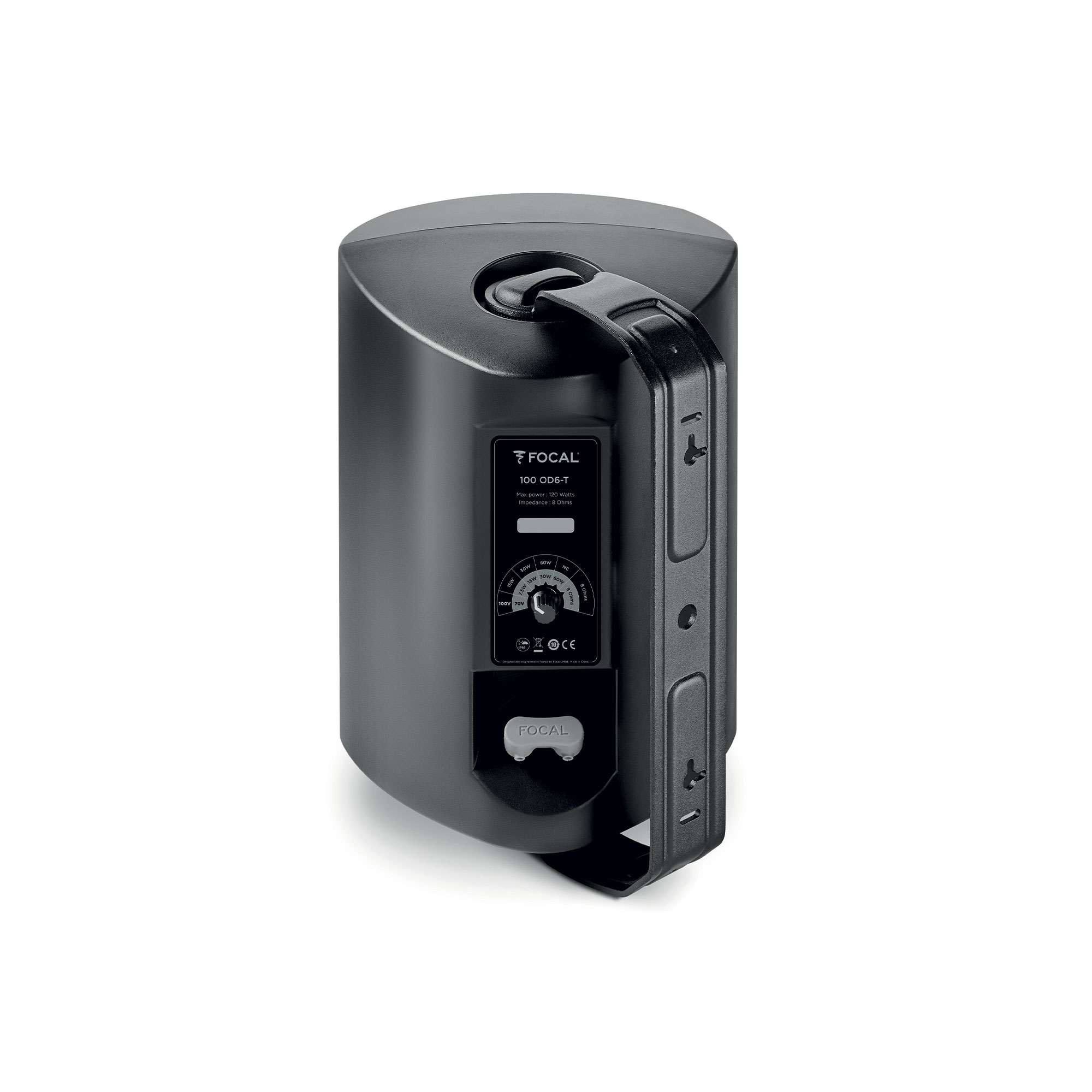

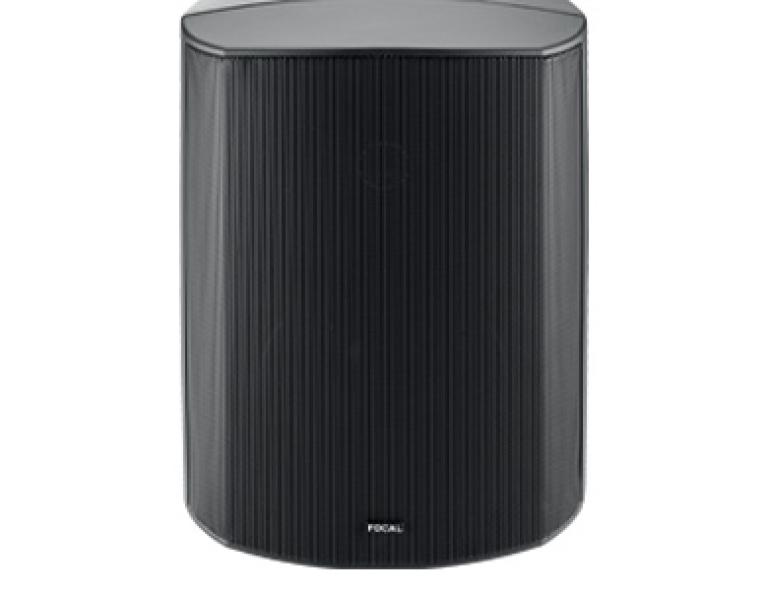

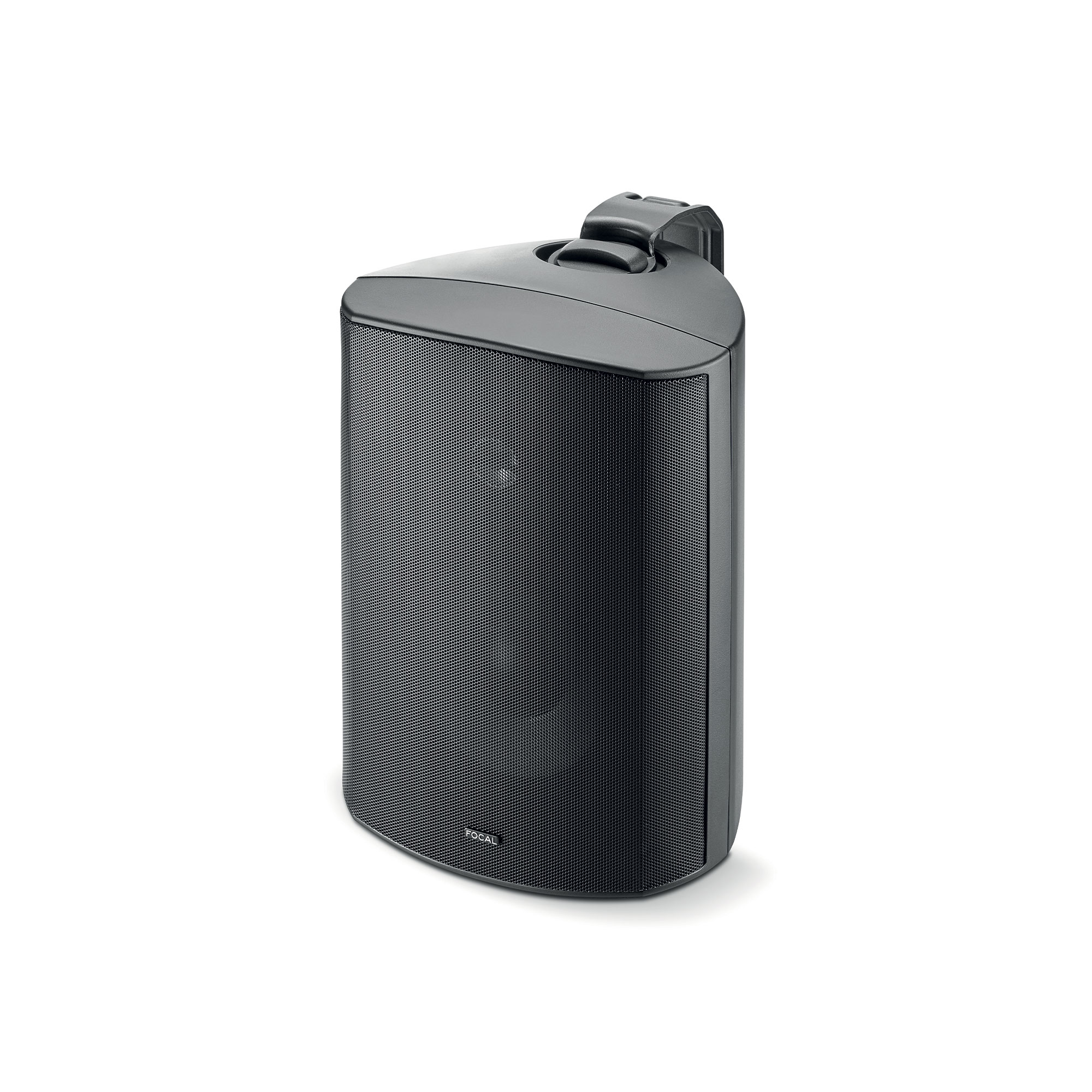

fig. 01 · speakers
100 OD6-T
8 photographs · 5 shown
From Focal
The 100 OD6-T is the outdoor version of the 100-T Series, built with a transformer that adapts power to a 70/100V line so multiple speakers link together across a wide listening area. It's IP66 certified with a ready-to-paint grille and cabinet, and switches to 8-ohm mode for conventional setups.
Specifications
| Type | Outdoor loudspeaker |
|---|---|
| Speakers | Aluminum inverted dome tweeter 6½" (165mm) waterproof woofer with Polyglass treatment |
| ensitivity (2.83V/1m) | 87dB |
| Frequency response (+/-3dB) | 65Hz-23kHz |
| Low frequency point (-6dB) | 55Hz |
| Power in 8Ω | 60W |
| Power in 70V | 7.5W/15W/30W |
| Power in 100V | 15W/30W/60W |
| Filtering frequencies | 2,800Hz |
| Dimensions (LxPxH) with brackets | 8.8x10.1x12.6" (224x256x319mm) |
| Net weight with brackets | 9lbs (4.1kg) |
