Focal · Speakers · Outdoor Speakers

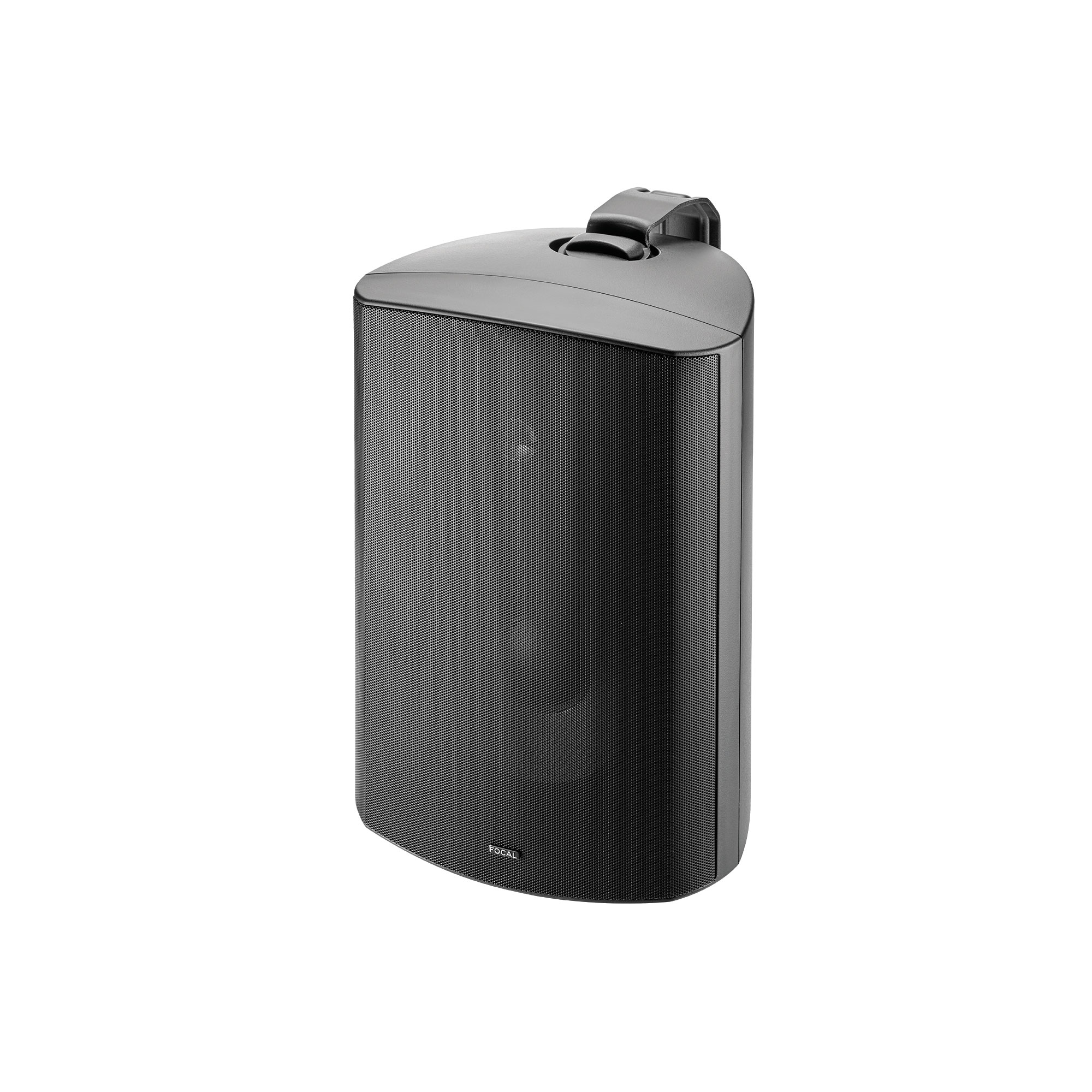

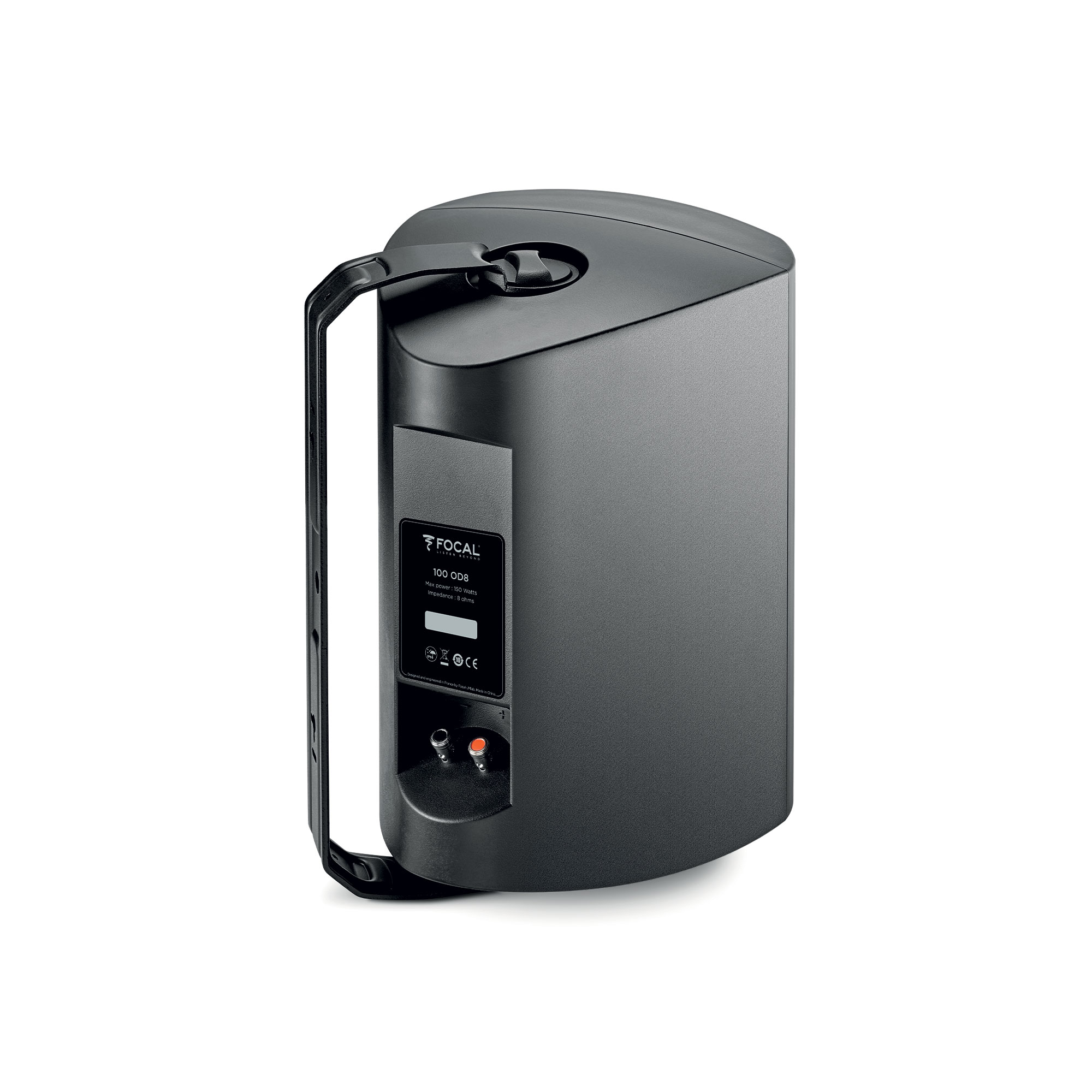

100 OD8
The 100 OD8 steps up to an 8-inch waterproof woofer with anti-UV treatment and IP66 certification for higher-performance outdoor systems.
fig. 01 · speakers
100 OD8
8 photographs · 5 shown
From Focal

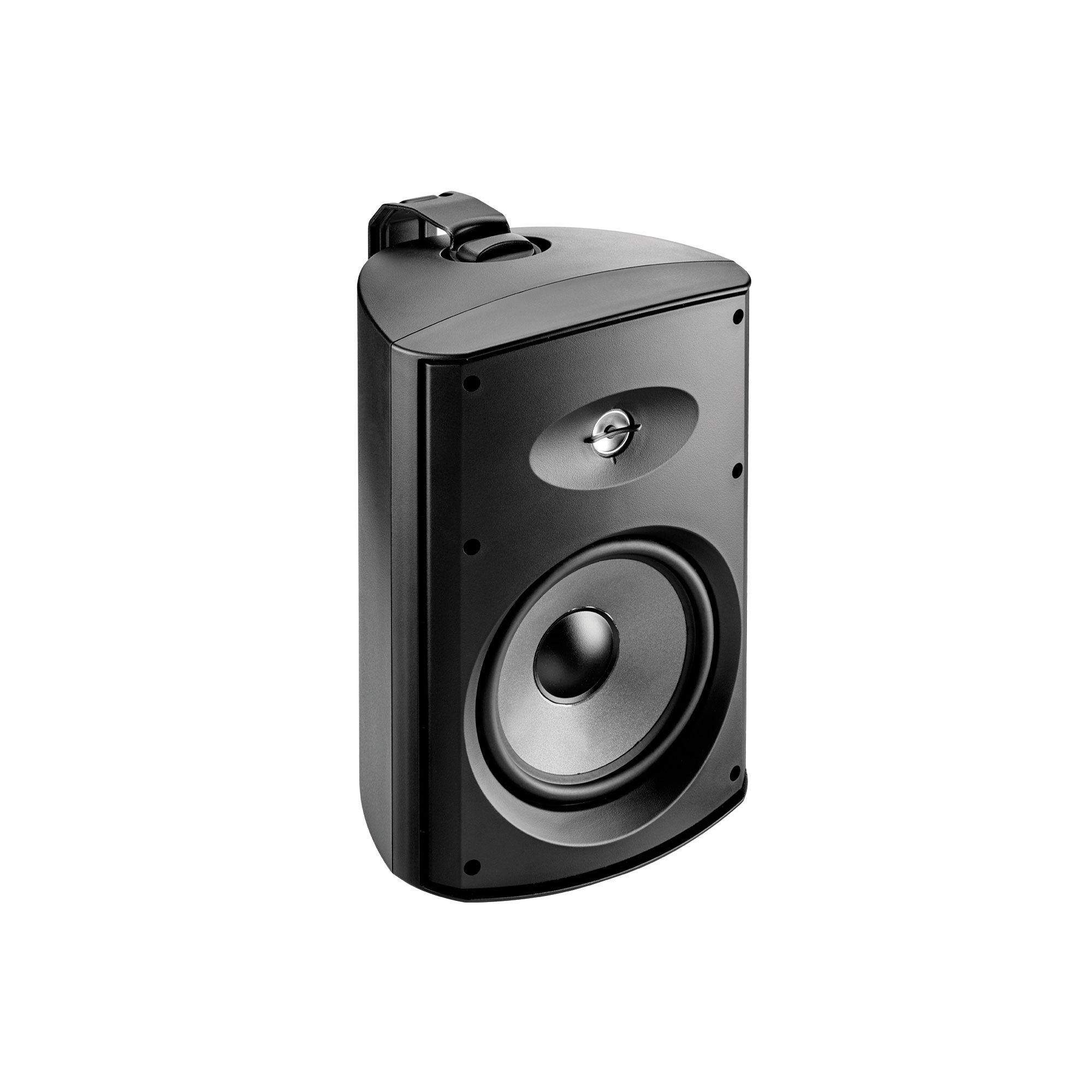

The 100 OD8 pairs an aluminum inverted dome tweeter with an 8-inch Polyglass woofer for more efficiency and power handling than the 100 OD6. Anti-UV treatment and IP66 certification hold up against extreme weather and dust, and the ready-to-paint grille and cabinet blend into the setting.
Specifications
| Type | Outdoor loudspeaker |
|---|---|
| Speakers | Aluminum inverted dome tweeter | 8" (210mm) waterproof woofer | with Polyglass treatment |
| ensitivity (2,83V/1m) | 88dB |
| requency response (+/-3dB) | 60Hz-23kHz |
| ow frequency point (-6dB) | 45Hz |
| ominal impedance | 8Ω |
| nimal impedance | 6.7Ω |
| ecommended amp power | 20-150W |
| Itering frequencies | 2,800Hz |
| imensions (L x P x H) with brackets | 10.2 x 11 x 15.4" (258 x 280 x 390mm) |
| et weight with brackets | 12.6lbs (5.8kg) |
