Focal · Speakers · Outdoor Speakers
100 OD8-T
The 100 OD8-T pairs a 21cm waterproof woofer with 70V/100V switching for large-space outdoor installations.

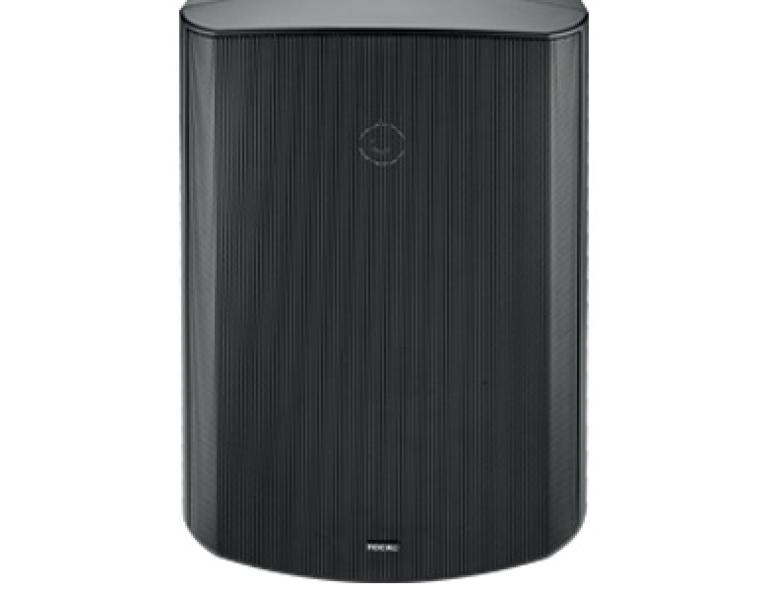

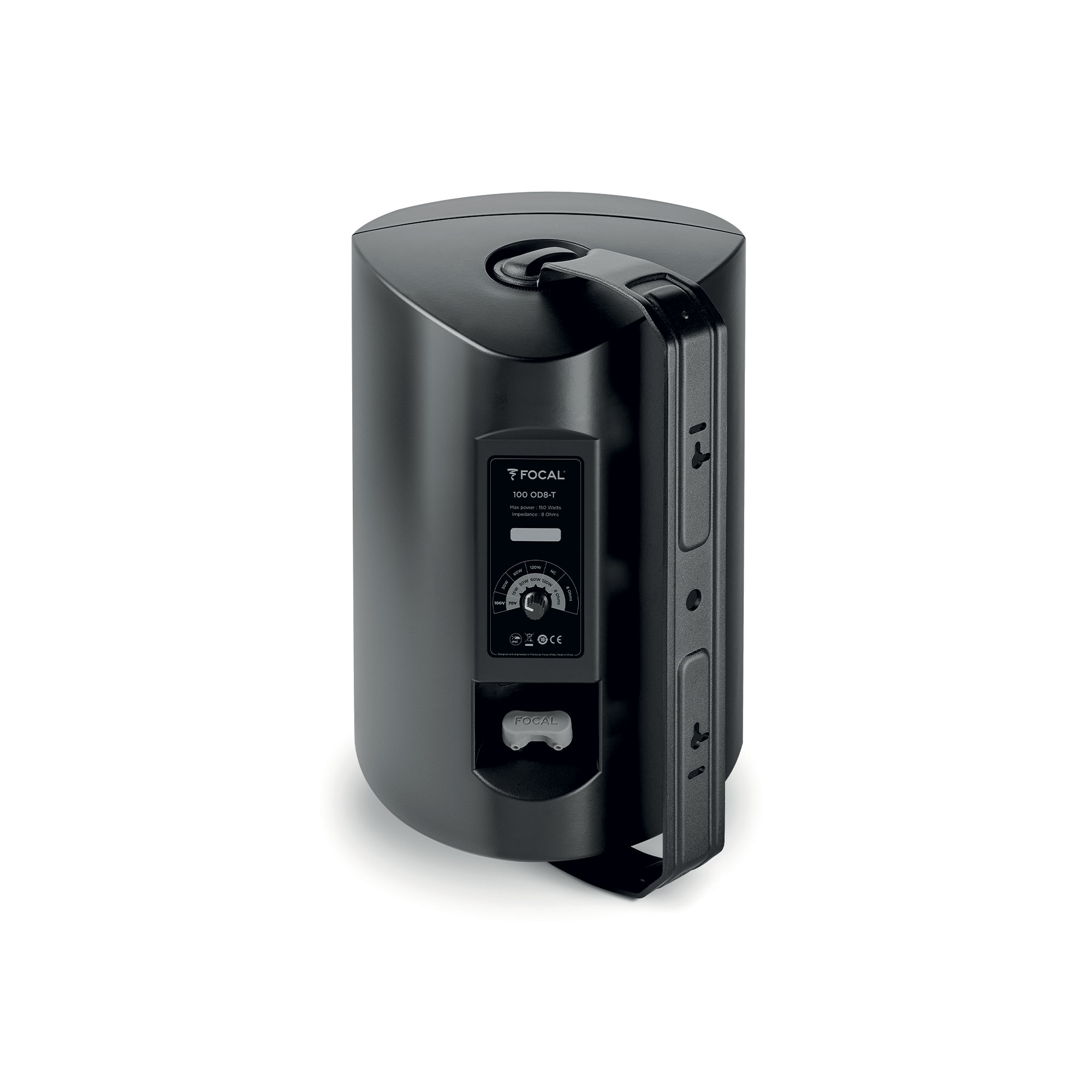

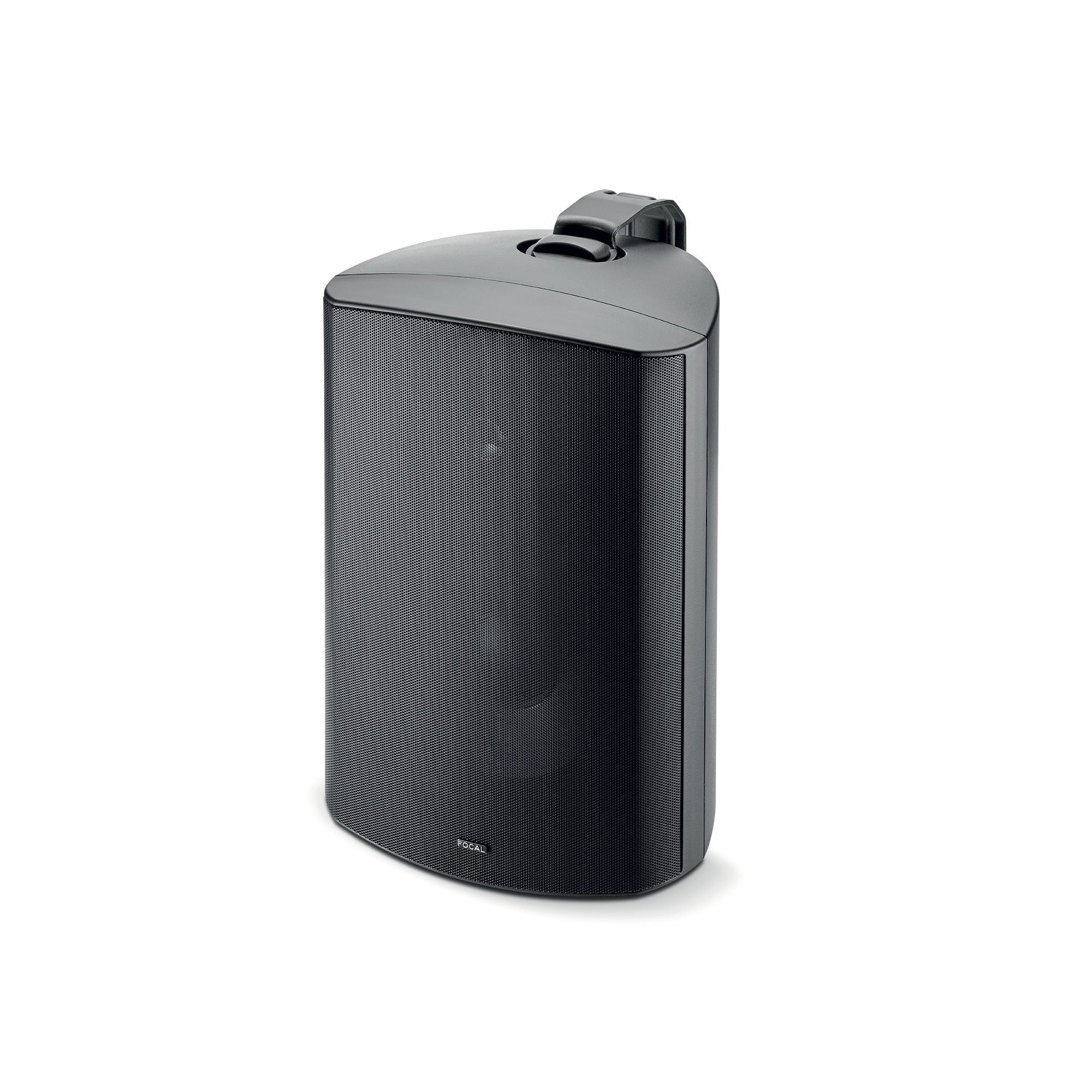

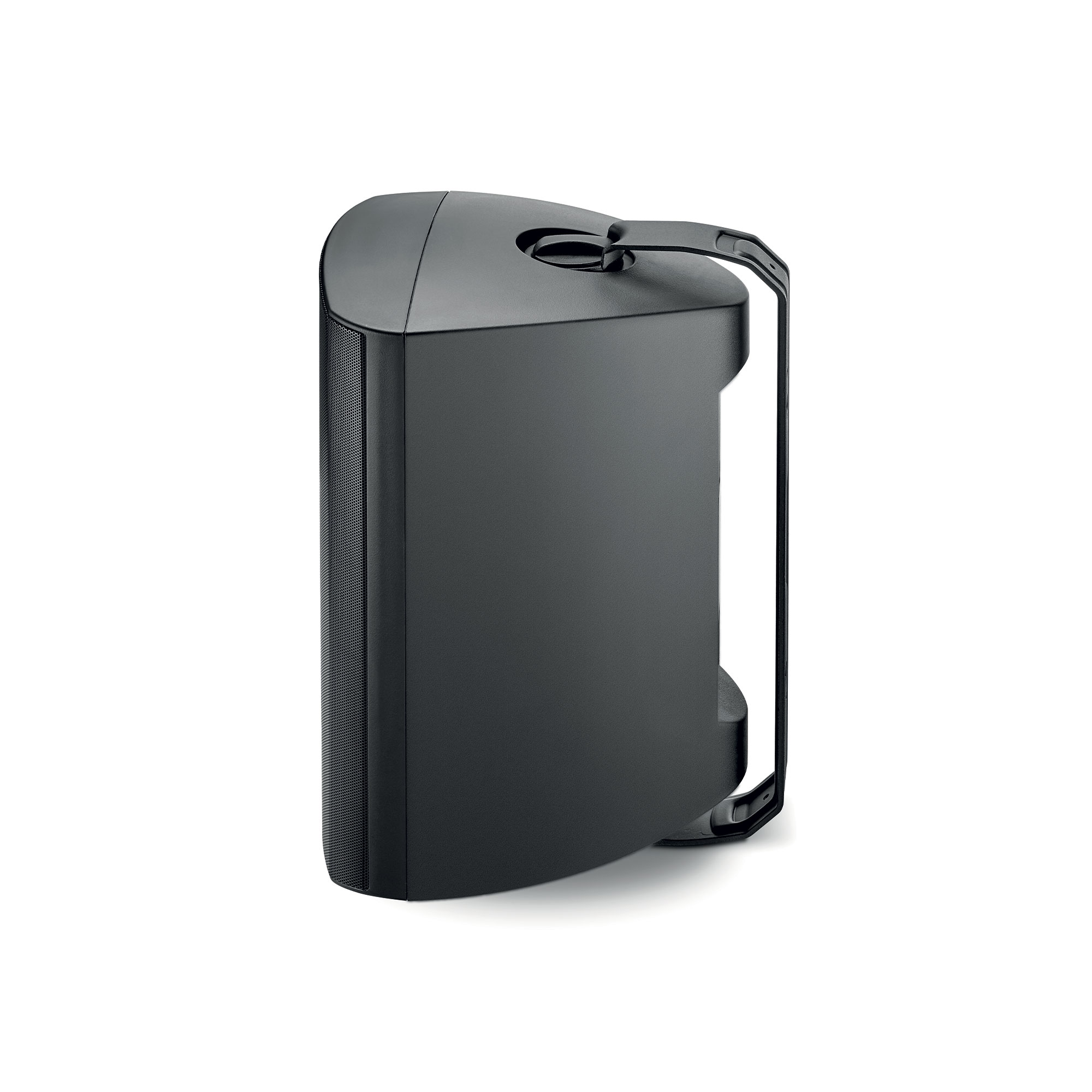

fig. 01 · speakers
100 OD8-T
8 photographs · 5 shown
From Focal
The 100 OD8-T uses a 21cm waterproof woofer built for large outdoor spaces, with low driver directivity for even coverage. A switch sets it to 8-ohm, 70V, or 100V mode, with power taps up to 120W. IP66 certification and a ready-to-paint grille and cabinet handle the elements.
Specifications
| Type | Outdoor loudspeaker |
|---|---|
| Speakers | 8" (21cm) waterproof woofer |
| ensitivity (2.83V/1m) | 88dB |
| requency response (+/-3dB) | 60Hz-23kHz |
| ow frequency point (-6dB) | 45Hz |
| ower in 8 Ω | 120W |
| ower in 70 V | 15/30/60W |
| Power in 100 V | 30/60/120W |
| iltering frequencies | 2,800Hz |
| Dimensions (LxPxH) with brackets | 10.2x11x15.4" (258x280x390mm) |
| Net weight with brackets | 12.6lbs (5.8kg) |
