Focal · Speakers · In-wall & In-ceiling Speakers
1000 ICA6
A 2-way coaxial in-ceiling speaker with a driver angled 35 degrees to aim sound straight at the listening position.
fig. 01 · speakers
1000 ICA6
6 photographs · 5 shown
From Focal

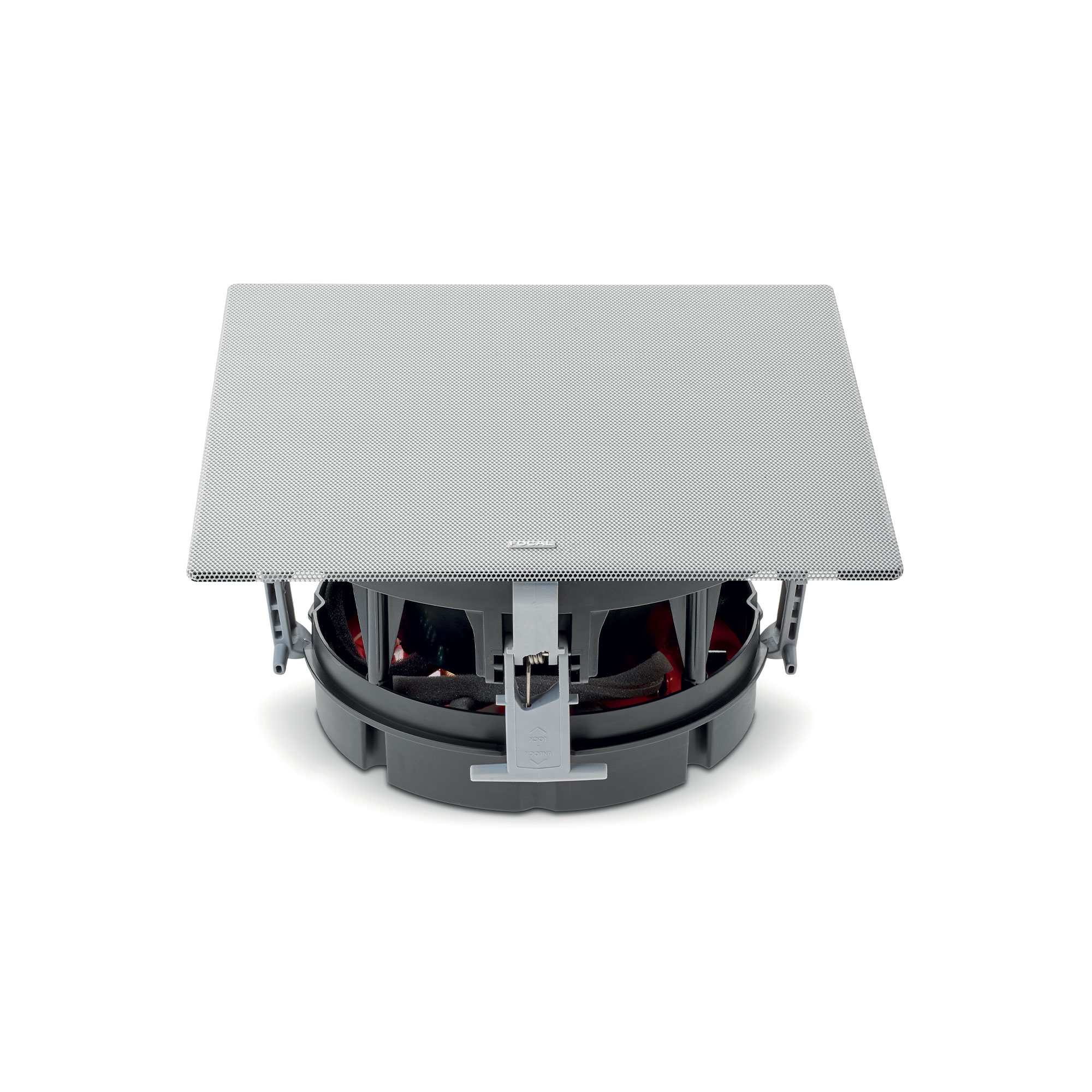

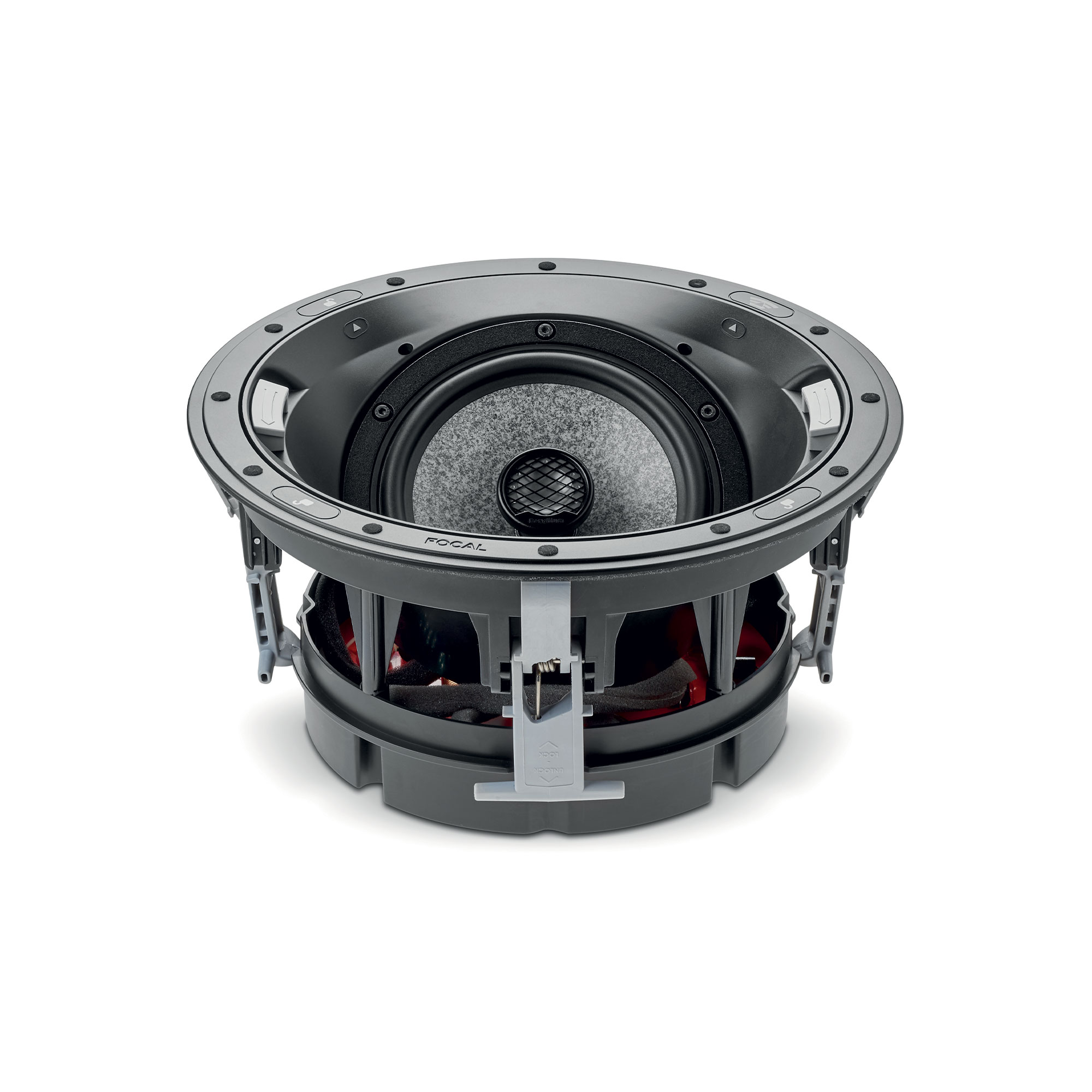

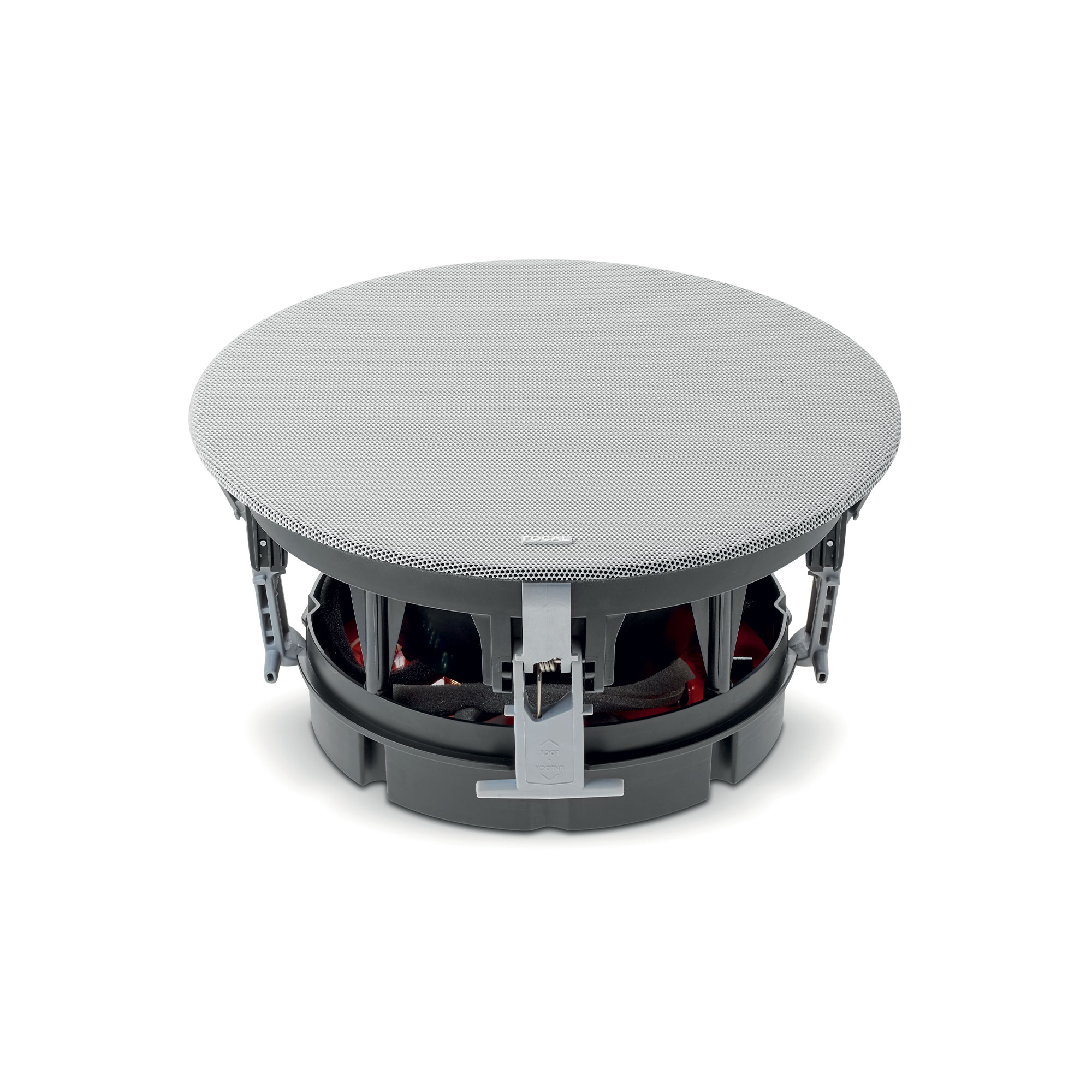

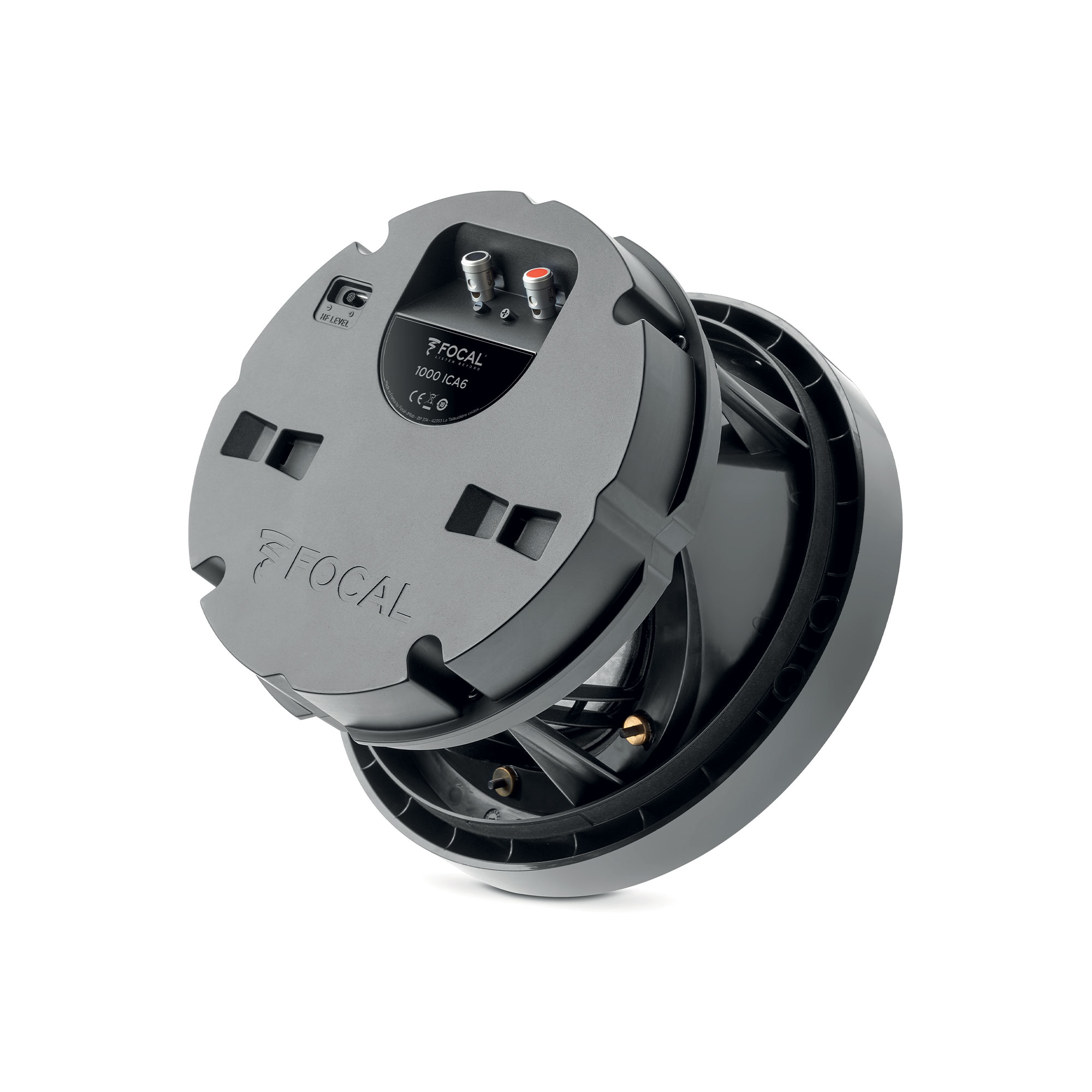

The 1000 ICA6 is a 2-way coaxial in-ceiling speaker with its driver tilted 35 degrees to aim directly at the listening position, built for stereo and home cinema use. The 6.5-inch W midrange/bass driver is made in France. It installs without tools and ships with square and circular grilles ready for painting.
Specifications
| Type of speaker | 2-way coaxial in-ceiling |
|---|---|
| Speaker drivers | 61/2" (16.5cm) 'W' Midrange/Bass |
| Sensitivity (2.83V/3 feet - 1m) | 90.5dB |
| Bandwidth (+/-3dB) | 55Hz - 40kHz |
| Low-frequency cut-off (-6dB) | 45Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 5.1 Ω |
| Recommended amp power | 25 - 150W |
| Size (Ø x depth) | 113/4x5" (299x127mm) |
| Mounting diameter (Ø) | 103/8" (264mm) |
| Mounting depth | 53/4" (146mm) |
| Net weight (with grille) | 6.61lbs (3kg) |
| Box size (length x depth x height) | 143/4x143/4x133/8" (375x375x340mm) |
| Total weight (with packaging) | 11.68lbs (5.3kg) |
| Recommended Limiter Threshold | 6,1V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 35Hz Linkwitz-Riley 12 dB/octave |
