1000 ICW6
A 2-way speaker that mounts in walls or ceilings, pairing a 6.5-inch W midrange/bass driver with an adjustable pure Beryllium tweeter.
fig. 01 · speakers
1000 ICW6
8 photographs · 5 shown
From Focal

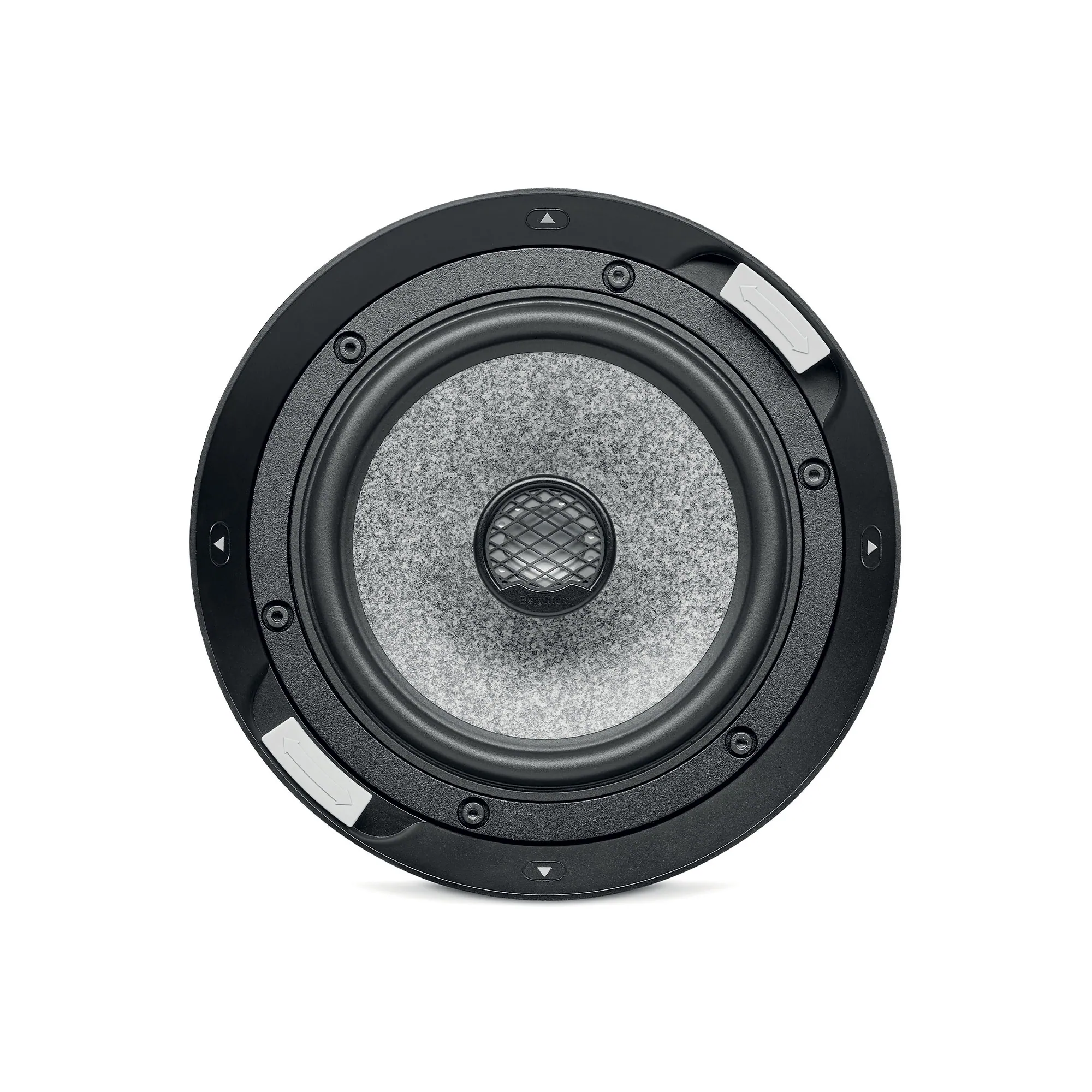

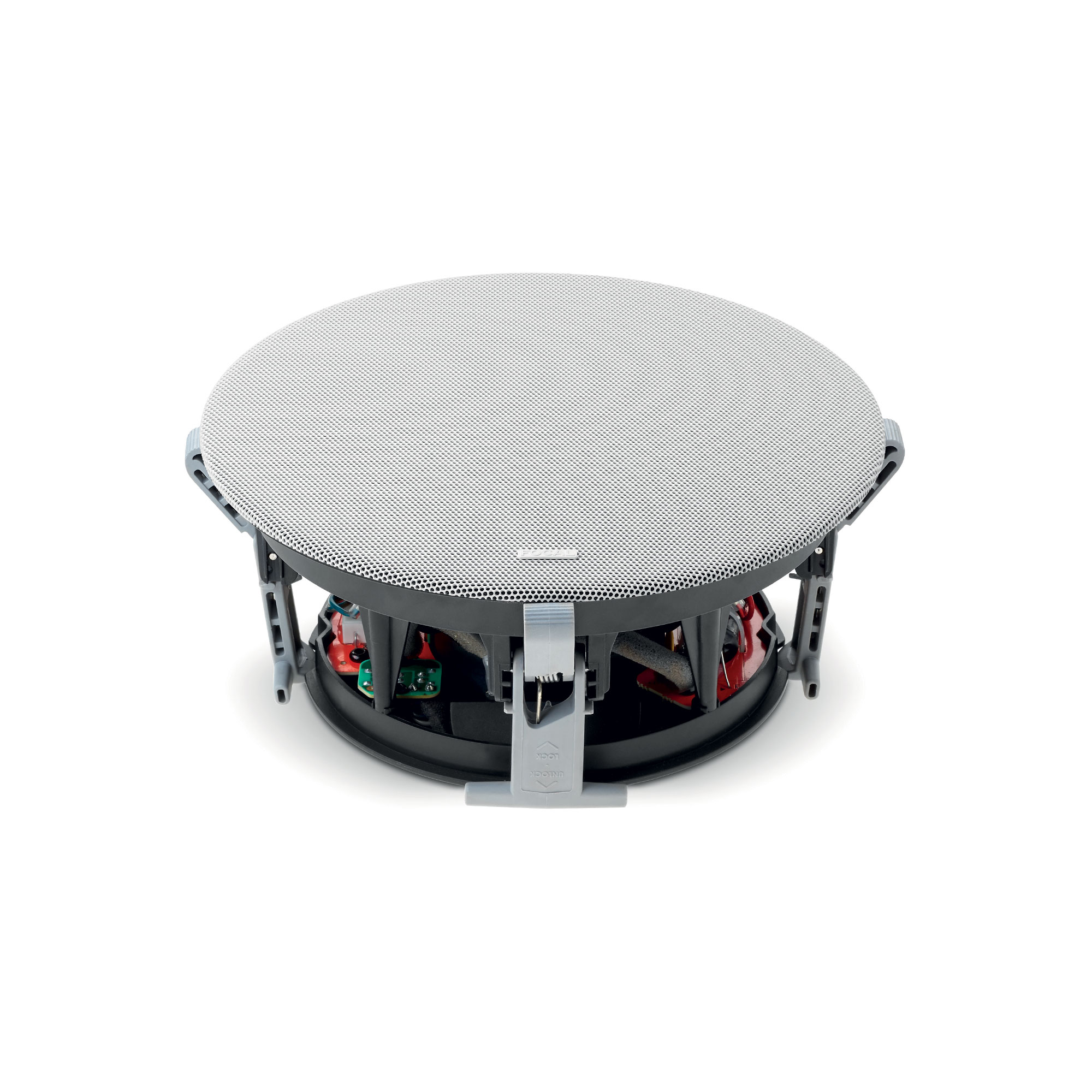

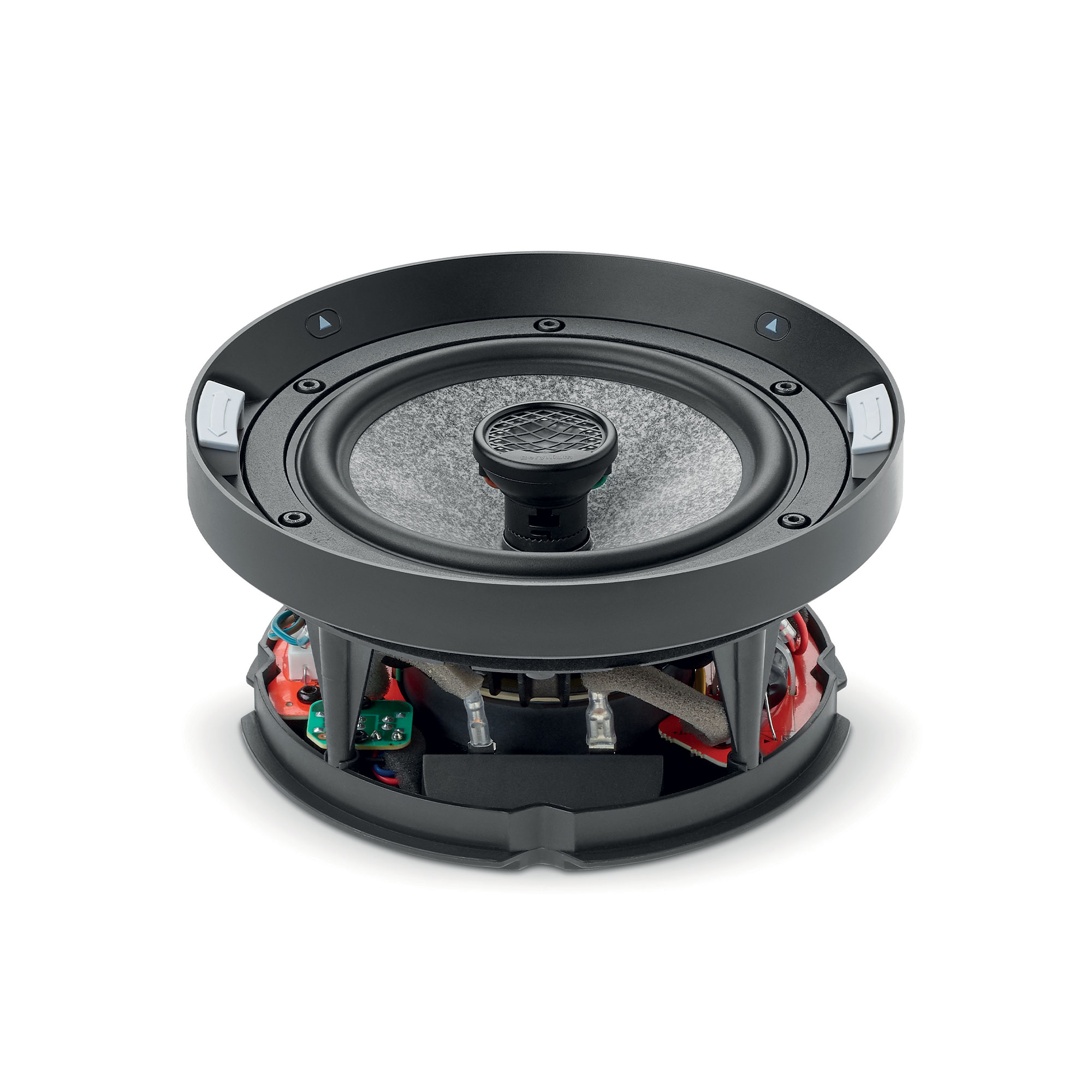

The 1000 ICW6 installs in walls or ceilings for stereo and home cinema listening. It pairs a 6.5-inch W midrange/bass driver with a 1-inch pure Beryllium inverted dome tweeter that adjusts for the room. Drivers are made in France, and it ships with square and circular grilles ready for painting.
Specifications
| Type of speaker | 2-Way in-wall/in-ceiling |
|---|---|
| Speaker drivers | 61/2" (16.5cm) 'W' Midrange/Bass | 1" (25mm) Pure Beryllium inverted dome tweeter |
| Sensitivity (2.83V/3 feet - 1m) | 89dB |
| Bandwidth (+/-3dB) | 55Hz – 40kHz |
| Low-frequency cut-off (-6dB) | 45Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 4.9 Ω |
| Recommended amp power | 25 – 150W |
| Size (Ø x depth) | 95/8 x 41/8" (244 x 105mm) |
| Mounting diameter (Ø) | 81/2" (216mm) |
| Mounting depth | 4" (100mm) |
| Net weight (with grille) | 5.29lbs (2.4kg) |
| Box size (length x depth x height) | 121/4 x 121/4 x 105/8" (310 x 310 x 270mm) |
| Total weight (with packaging) | 8.60lbs (3.9kg) |
| Recommended Limiter Threshold | 6,1V RMS |
| Recommended Limiter Attack Time | 0ms |
| Recommended Limiter Release Time | 150ms |
| Recommanded High-pass filter | 50Hz Linkwitz-Riley 12dB /oct |
