1000 IW6
A compact 2-way in-wall speaker with a Beryllium tweeter, built as a discreet rear channel for home cinema.
fig. 01 · speakers
1000 IW6
8 photographs · 5 shown
From Focal

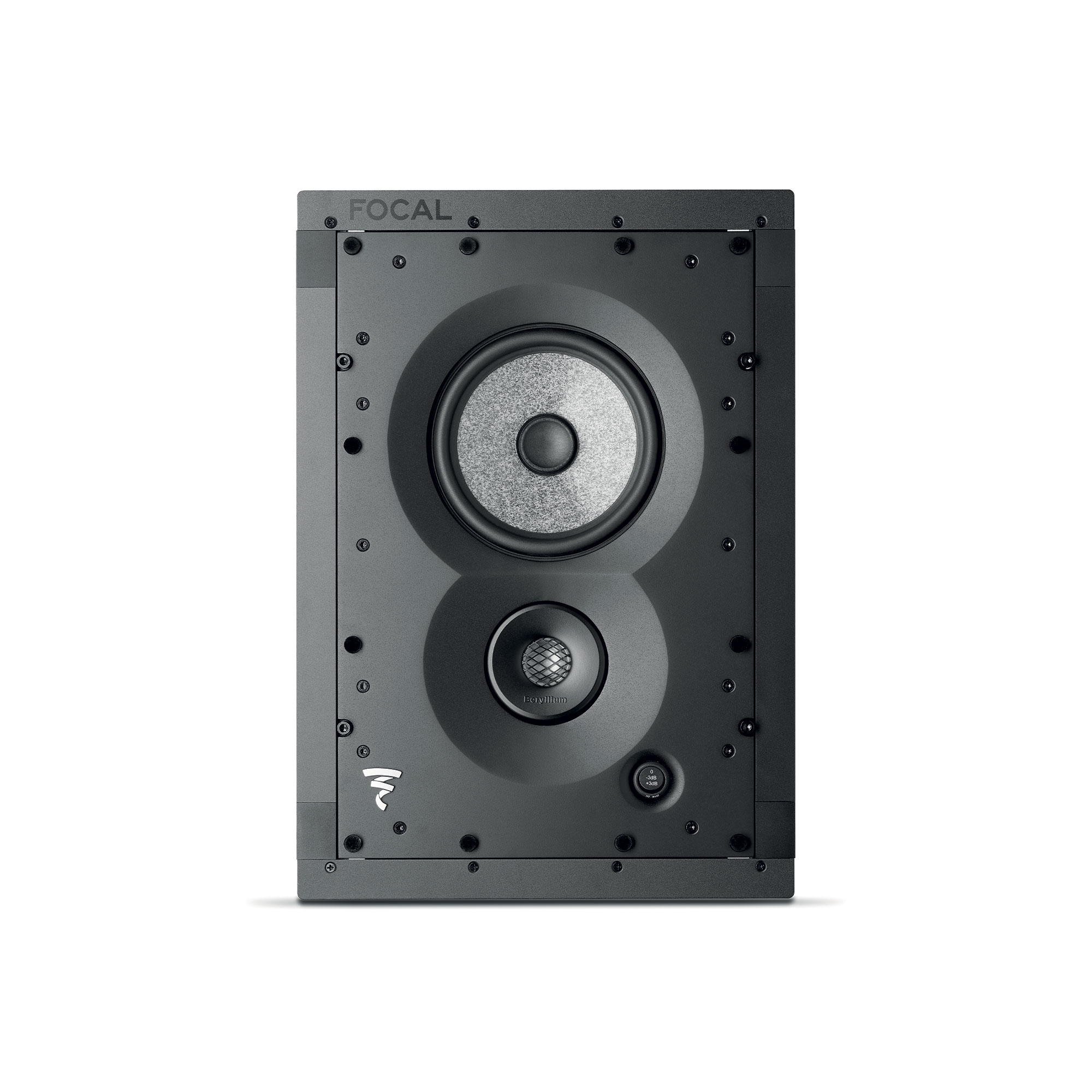

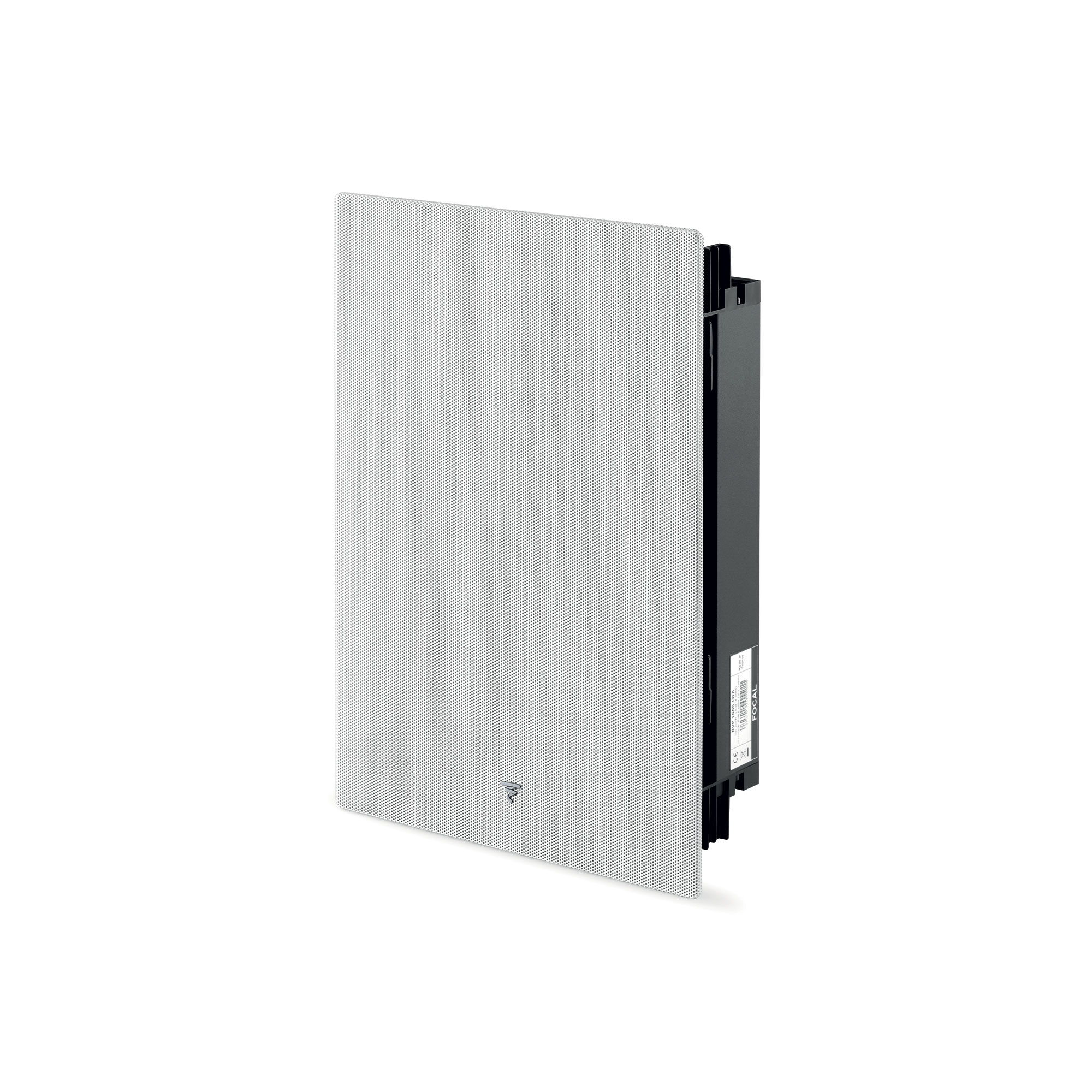

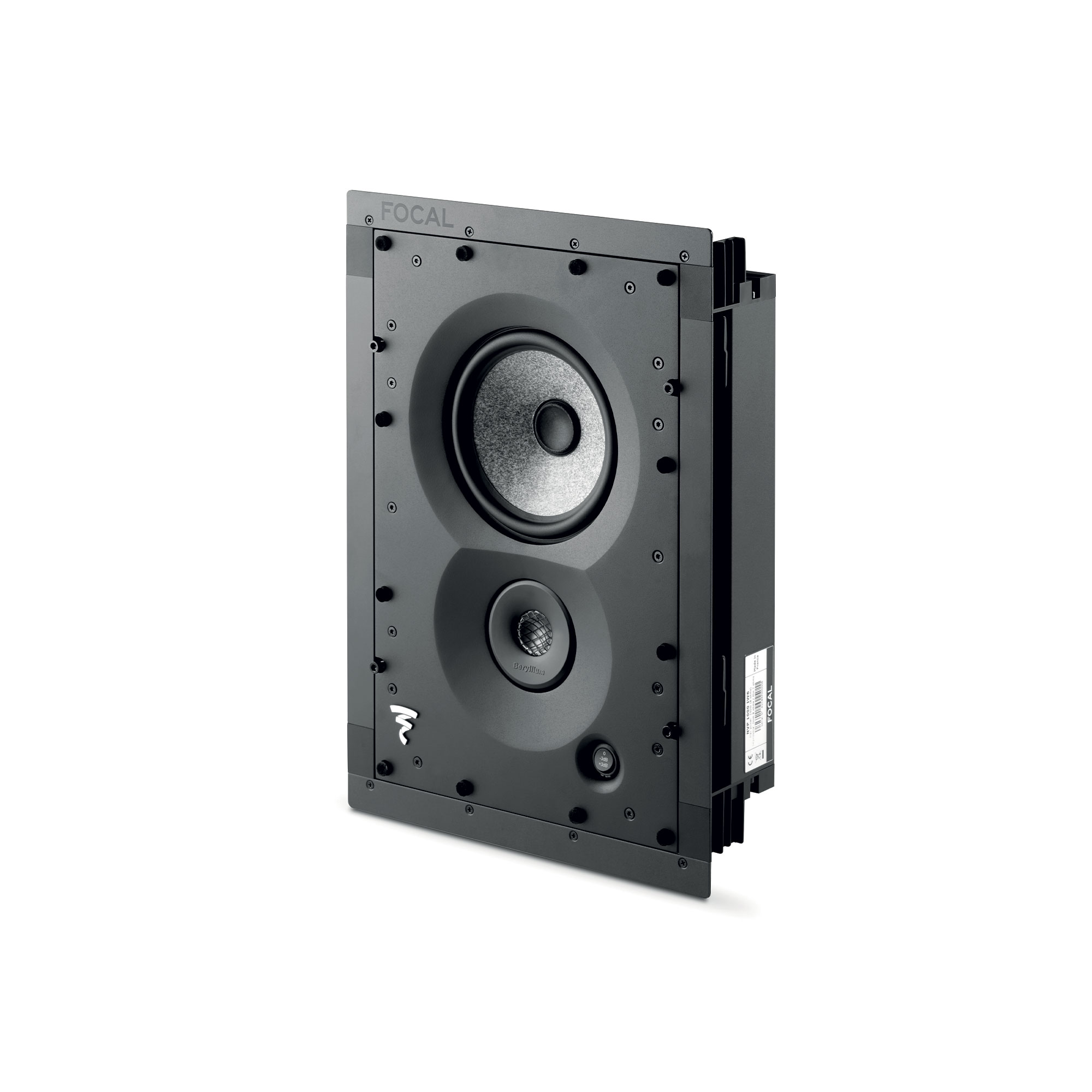

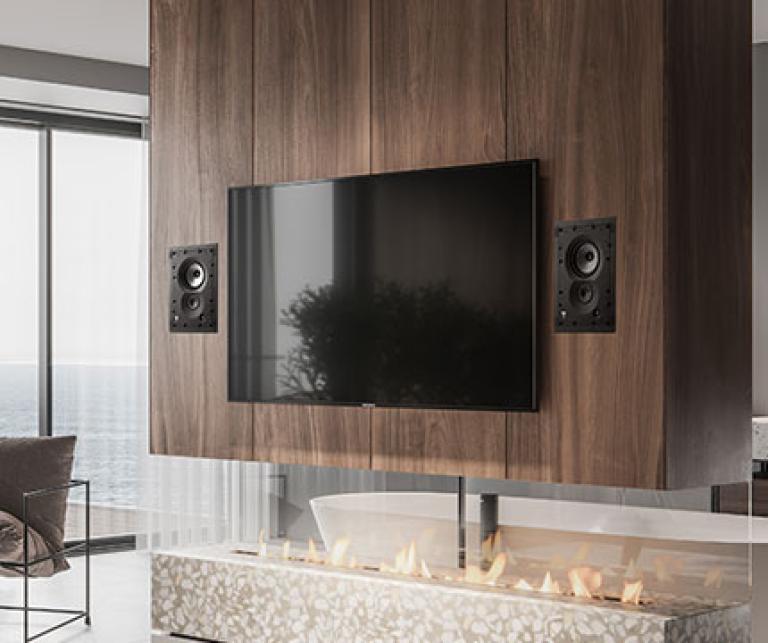

The 1000 IW6 is a 2-way, closed-back in-wall speaker pairing a 6.5-inch bass/midrange driver with a 1-inch pure Beryllium tweeter that adjusts up to 20 degrees. It suits a home cinema rear channel, mounting flush in the wall for a compact, hidden footprint. An optional frame allows on-wall mounting too.
Specifications
| Type of speaker | 2-way closed-back in-wall |
|---|---|
| Speaker drivers | 6 1/2 " (16.5cm) Bass/Midrange | 1" (27mm) Pure Beryllium inverted dome tweeter |
| Sensitivity (2.83V/3 feet - 1m) | 88dB |
| Bandwidth (+/-3dB) | 55Hz - 40kHz |
| Low-frequency cut-off (-6dB) | 45Hz |
| Nominal impedance | 8 Ω |
| Minimal impedance | 7 Ω |
| Recommended amp power | 25 - 150W |
| Ext. size (H x L x D) | 17 1/8 x 12 x 4" (435 x 305 x 102mm) |
| Mounting dimensions (H x L) | 16 x 10 7/8" (406 x 276mm) |
| Mounting depth | 4" (100mm) |
| Net weight (with grille) | 14.88lbs (6.75kg) |
| Box size (length x depth x height) | 15 3/8 x 22 7/8 x 8 1/2 " (390 x 580 x 215mm) |
| Total weight (with packaging) | 18.74lbs (8.5kg) |
